StarTech.com 4-Port KM Switch with Mouse Switching, USB 3.0 Switcher, Keyboard/Mouse Sharing, 3.5mm/USB Audio, TAA Compliant
Key Features
- SEAMLESS MOUSE SWITCHING: Instantly and automatically switch computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency; Hotkey and push-button switching options are also available
- SCREEN LAYOUT PRESETS: Monitor layouts controlled via hotkeys are designed to accommodate a variety of physical monitor setups, allowing for seamless mouse movement across host monitors; 4 different preset display configurations available
- USB CONNECTIVITY: Supports up to three USB Human Interface Device (HID) peripherals and two USB 3.2 Gen 1 (5Gbps) devices; Ideal for environments such as control rooms, security facilities, server rooms, and financial operations
- THOUGHTFUL DESIGN: Independent audio switching allows users to listen to audio from one computer while controlling another; USB audio and 3.5mm pass-through available; LEDs provide visual port selection status; Audible buzzer for hotkey confirmation
- UNIVERSAL COMPATIBILITY: Mouse Roaming is supported by most major desktop operating systems including Windows, macOS, and Linux; Hotkey and push-button switching are OS independent; Works with all hardware platforms including Intel and AMD
Description
Control up to four computers with a single keyboard and mouse
This Keyboard and Mouse (KM) Switch enables switching a single keyboard and mouse between multiple computers using mouse roaming, allowing users to seamlessly move the cursor across multiple screens (i.e., one monitor per computer).

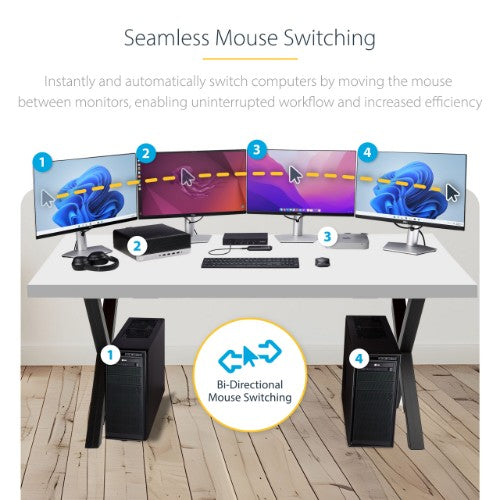

Mouse Switching
Switch between computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency. Hotkey and push-button switching are universally compatible. Mouse Switching is supported by most major desktop operating systems, including Windows, macOS, and Linux.

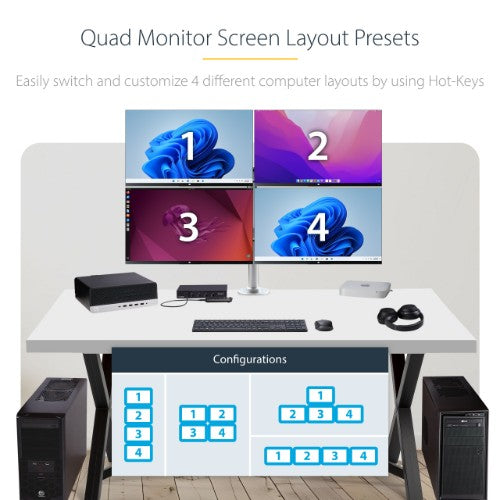

Preset Monitor Layouts
To accommodate various physical monitor setups, there are four preset display configurations available. This allows for smooth mouse movement across host monitors.
Thoughtful Design
Hotkeys enable listening to audio from one computer while controlling another. USB audio and 3.5mm pass-through are available, and LEDs provide visual port selection status, while an audible buzzer confirms hotkey selection.
Note: On computers with multiple monitors connected with Mouse Switching/Roaming enabled, mouse/keyboard operation is limited to the primary display
The StarTech.com Advantage
Specifications

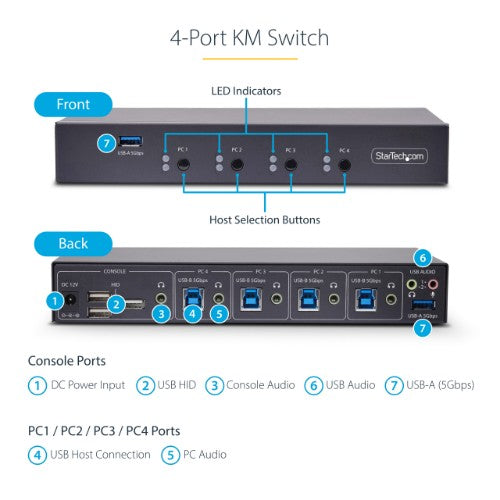

| Ports & interfaces |
|---|
| Console ports |
3.5mm headphone, 3.5mm mic, USB A |
| Number of microphone inputs |
1 |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Audio connections |
Yes |
| Headphone outputs |
6 |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
| USB 2.0 Type-A hub ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| Performance |
|---|
| Chipset |
GL3523 |
| Data transfer rate (max) |
5 Gbit/s |
| HD type |
Not supported |
| Technical details |
|---|
| Product colour |
Black |
| Push button |
Yes |
| On Screen Display (OSD) |
No |
| LED indicators |
Yes |
| Hot keys |
Yes |
| IP control |
No |
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
| Design |
|---|
| Mean time between failures (MTBF) |
156000 h |
| Product colour |
Black |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Input current |
0.6 A |
| Output current |
5 A |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, UK, US |
| Output voltage |
12 V |
| External power adapter |
Yes |
| Input voltage |
100 - 240 V |
| Video |
|---|
| HD type |
Not supported |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
5.12" (130 mm) |
| Depth |
8.66" (220 mm) |
| Height |
1.34" (34 mm) |
| Weight |
28.2 oz (800 g) |
| Package width |
11.6" (295 mm) |
| Package depth |
9.65" (245 mm) |
| Package height |
2.48" (63 mm) |
| Package weight |
6.35 oz (180 g) |
| Packaging data |
|---|
| Package width |
11.6" (295 mm) |
| Package depth |
9.65" (245 mm) |
| Package height |
2.48" (63 mm) |
| Package weight |
6.35 oz (180 g) |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Other features |
|---|
| IP control |
No |
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
24.1" (613 mm) |
| Master (outer) case length |
20.1" (510 mm) |
| Master (outer) case height |
11.9" (302 mm) |
| Products per master (outer) case |
6 pc(s) |
