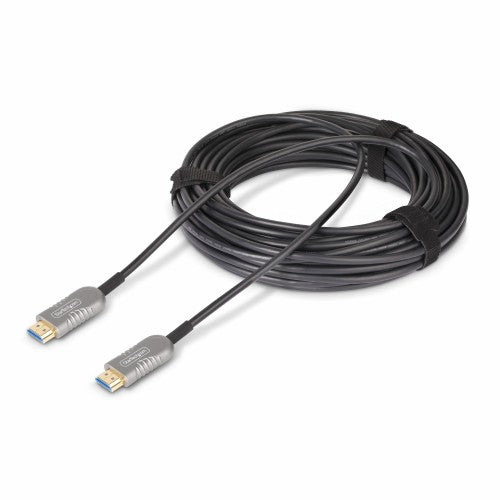

StarTech.com 50ft (15.2m) HDMI 2.1 Hybrid Active Optical Cable (AOC), CMP Plenum, 8K60Hz, Ultra High Speed HDMI 2.1/2.0 Cable
Key Features
- DESIGNED FOR LONG RANGE: Hybrid Active Optical HDMI 2.1 Cable delivers 8K 60Hz beyond the length of standard copper cables; The fiber optic inner cores greatly reduce EMI for optimal signal quality and minimal degradation; Note: Cable is unidirectional
- PLENUM RATED: Ultra High Speed HDMI Hybrid AOC is Plenum-rated (CMP) for safe installation in plenum spaces; Suitable for ceiling, conduit, and in-wall cable runs; For use in commercial environments where compliance with fire codes must be considered

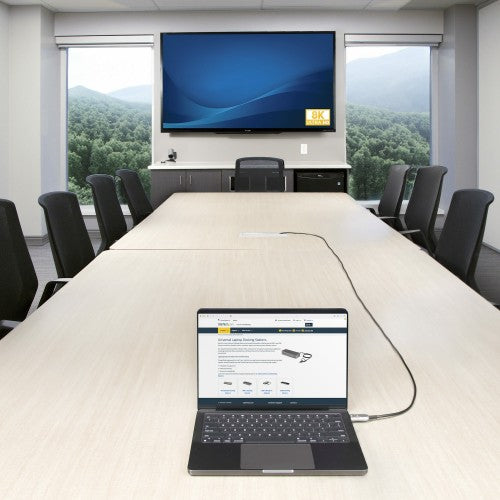

- VERSATILE PERFORMANCE: Full-featured HDMI 2.1 enables Dynamic HDR10+ w/12-bit processing for vibrant picture quality; 7.1 and 32-ch audio w/eARC; Ideal for UHD video walls, conference rooms, and dedicated video/media devices; Compatible w/HDMI 2.0/1.4/1.2
- QUALITY CONSTRUCTION: Shielded gold-plated connectors rated beyond 10,000 insertion cycles; Optical fiber core reinforced w/Aramid strands for tensile strength; Tested beyond 6,000 bending cycles at 120°; Labeled connector ends for Source and Display
- SPECS: Black; 50-foot (15.2-meter) Unidirectional; CMP (Plenum-Rated); Ultra High Speed HDMI 2.1 supports HBR3/FRL/HDR10+/DSC 1.2a/HDCP 2.3; 48Gbps; 8K 60Hz/4K 120Hz/4K 60Hz/1440p 240Hz; 4.6mm (0.18in) O.D.; Ideal for long cable runs
Description
Reliably connect high-bandwidth HDMI 2.1 devices through plenum spaces
Route this Ultra High Speed HDMI 2.1 Hybrid Active Optical Cable (AOC) through office plenum spaces for long distance transmission of 8K 60Hz video and high quality audio.
Hybrid AOC Construction
The HDMI 2.1 AOC incorporates a hybrid construction consisting of fiber optic cores and copper conductors. This enables the offloading of low-bandwidth signals (EDID/HDCP/eARC) to maintain high-bandwidth transmission of 8K 60Hz video over fiber. The fiber optic inner cores and shielded copper conductors greatly reduce EMI for optimal signal quality across longer distances.
Full-Featured HDMI 2.1
The 8K HDMI Fiber Optic Cable supports full HDMI 2.1 specifications:
• High Bit Rate 3 (HBR3) supports up to 48Gbps bandwidth for higher refresh rates
• High Dynamic Range (HDR10+) with 12-bit processing for higher contrast ratio and vibrant, cinematic picture quality
• Enhanced Audio Return Channel (eARC) for uncompressed 7.1 and 32-channel audio
• Display Stream Compression 1.2a (DSC) for maximum resolution output
• Forward Error Correction to manage data transmission errors
• High-Bandwidth Digital Content Protection (HDCP 2.3) for a secure connection between source and display
Flexible Plenum-Rated Cabling

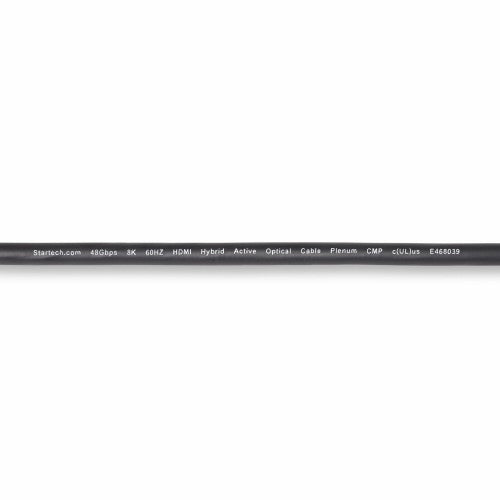

This Plenum-Rated HDMI 2.1 Cable features a CMP-rated cable jacket with low-smoke and flame characteristics. It is ideal for use in plenum spaces in buildings (e.g., ceilings and in-wall installations). The optical fiber core is reinforced with Aramid strands for tensile strength, and is rated to withstand over 6,000 bending cycles at 120 degrees. This protects the cable from damage when routing through tight spaces requiring multiple bends.
The 4.6mm (0.18in) cable outer diameter is flexible and slimmer than typical passive HDMI cables, making it suitable for installation in space-constrained environments.

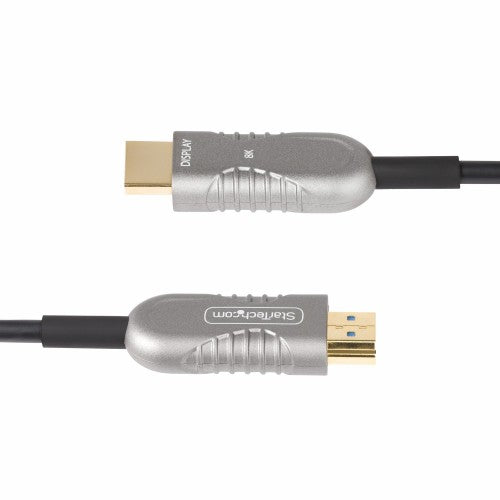

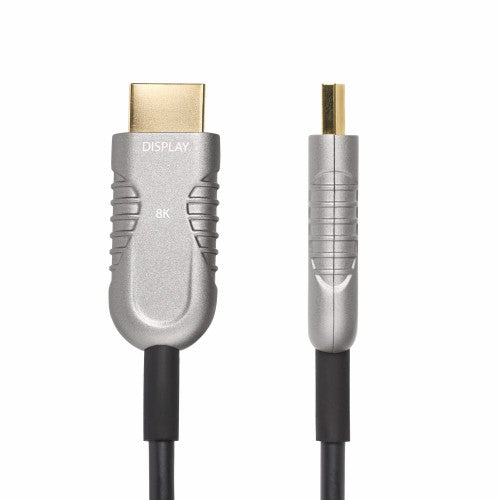

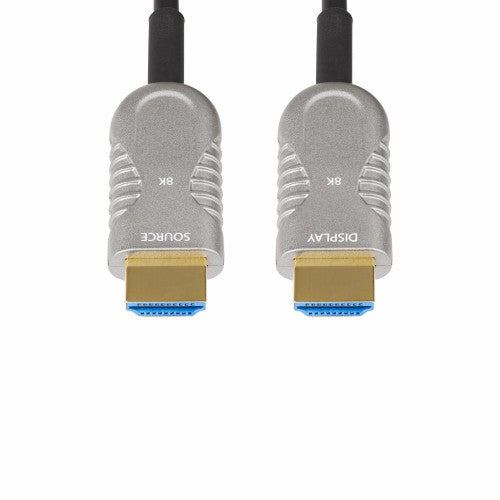

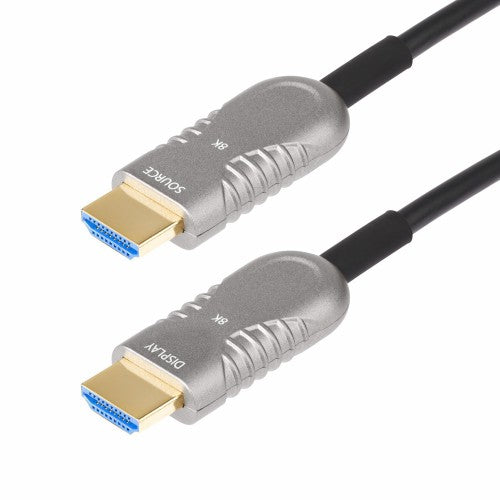

Please Note : This cable is unidirectional and must be installed in a specific direction. Please refer to the SOURCE and DISPLAY labels on the HDMI connectors to ensure that each end corresponds with the correct hardware.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
120 Hz |
| Colour depth |
12 bit |
| Cable shielding |
Aluminum mylar foil |
| Audio Return Channel (ARC) |
Yes |
| Product colour |
Black, Silver |
| Cable length |
598.4" (15.2 m) |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| AWG wire size |
28/30 |
| Data transfer rate |
48 Gbit/s |
| Supported graphics resolutions |
4096 x 2160, 7680 x 4320 |
| HDCP |
Yes |
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10+ (HDR10 Plus) |
| Cable rating |
CMP |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| HDCP version |
2.3 |
| Unidirectional |
Yes |
| Supported digital audio channels (uncompressed) |
7.1, 32 |
| Cable type |
Round cable |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Cable diameter |
0.181" (4.6 mm) |
| Package width |
9.25" (235 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
1.5" (38 mm) |
| Package weight |
17.6 oz (500 g) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
9.25" (235 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
1.5" (38 mm) |
| Package weight |
17.6 oz (500 g) |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case width |
18.3" (465 mm) |
| Master (outer) case length |
16.7" (425 mm) |
| Master (outer) case height |
10.4" (265 mm) |
