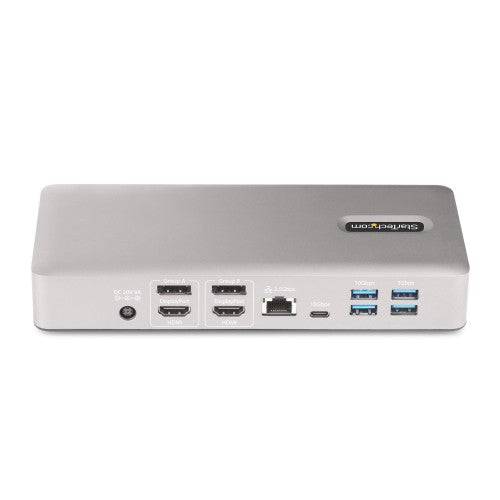

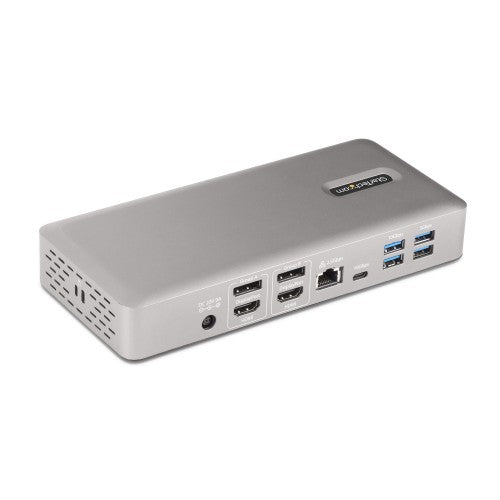

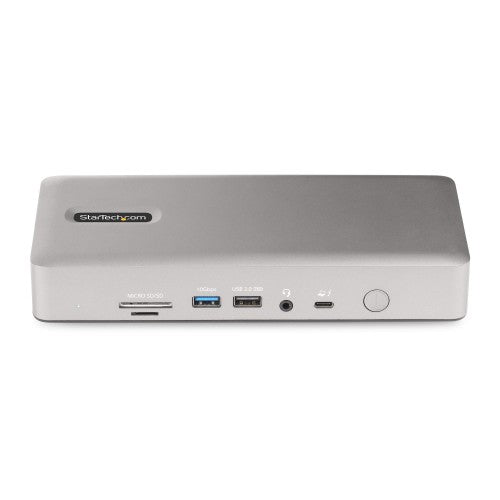

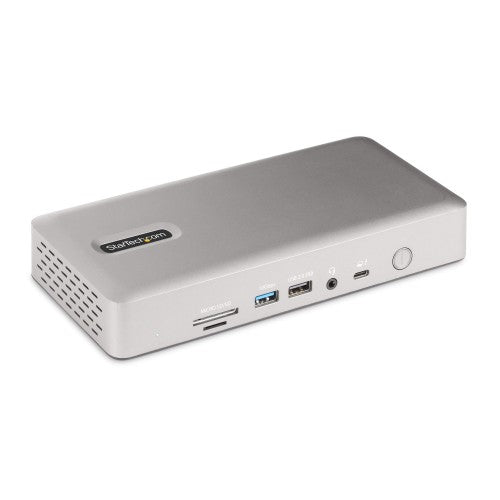

StarTech.com Universal USB4 & Thunderbolt 4 Docking Station, Quad Display on Windows, Dual Display on MacBook, HDMI DP Dock with 98W Laptop Charging
Key Features
-
Universal USB4 and Thunderbolt dock: This high-performance dock offers driverless compatibility with Windows and macOS; Designed to work with Intel, Apple Silicon, AMD, Snapdragon X Copilot+ PCs, it's ideal for mixed-device fleets and laptop refreshes
-
Quad Display On Windows: Enables up to four 4K 60Hz monitors when connected to Windows laptops with Intel 12th Gen CPUs (or later) and DP 1.4 with DSC; Also supports triple or dual displays on older systems without DSC
-
Dual Display on Mac: Get dual extended 4K 60Hz displays on MacBook Air / Pro with M3 or M4 (clamshell mode required with M3); For M1 and M2 MacBook Pro, dual extended display requires Pro or Max chip
-
98W Power Delivery: Includes fully spec'd power adapter to simultaneously charge laptop (98W PD) and power all ports; Downstream USB 2.0 port supports 7.5W (1.5A) for charging mobile devices or other battery-powered devices
-
The IT Pro's Choice: Our docking stations are rigorously tested in our Innovation Lab to ensure enterprise-grade reliability and cross-platform compatibility; Built to support large-scale deployments, Windows 11 upgrades, and the shift to AI-enabled PCs
Description
Universal Laptop Dock offering driverless compatibility with Windows and macOS

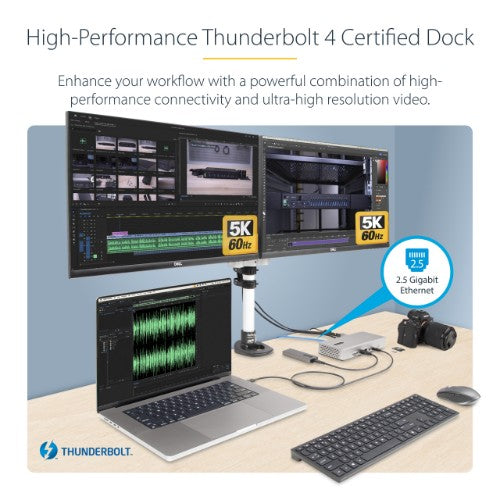

Engineered to maximize performance and future-proof your workspace, this universal USB4 and Thunderbolt 4 dock is Thunderbolt Certified, ensuring reliable connectivity and optimal user experience.

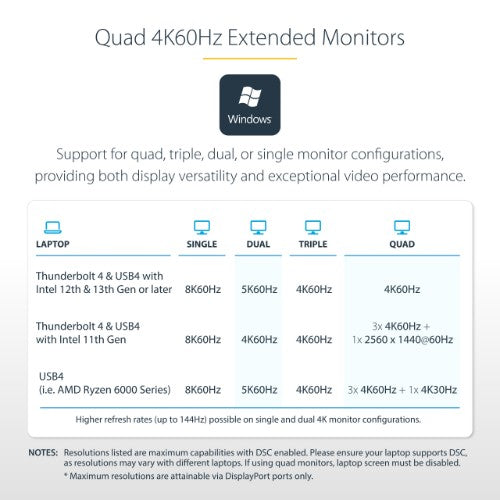

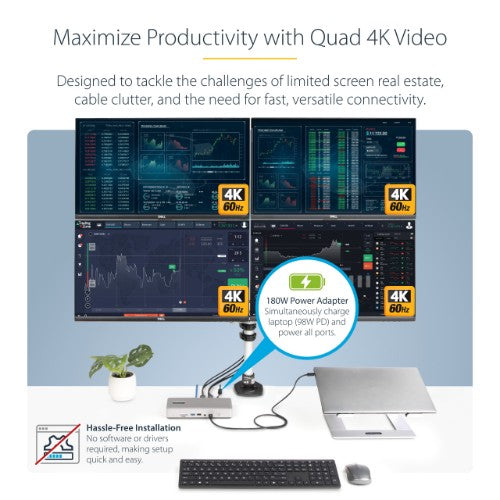

Quad Display on Windows
Push the boundaries of productivity with quad 4K 60Hz displays on Windows laptops running the latest Intel 12th Gen CPUs (or later) and DP 1.4 with DSC. Legacy systems still benefit from flexible dual or triple monitor setups.
Dual Display on Mac
Experience dual extended 4K displays on MacBook Air and Pro powered by M3 or M4 chips (clamshell mode required for M3), and MacBook M1 / M2 Pro or Max configurations. For Apple computers featuring the M-series base processor only a single display is supported.
98W Power Delivery
Includes a fully spec'd 180W power adapter that enables the dock to charge the laptop with 98W Power Delivery, while preserving enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.
Visit www.StarTech.com/Connectivity-Tools to download the Enterprise Management Tools.
Specifications

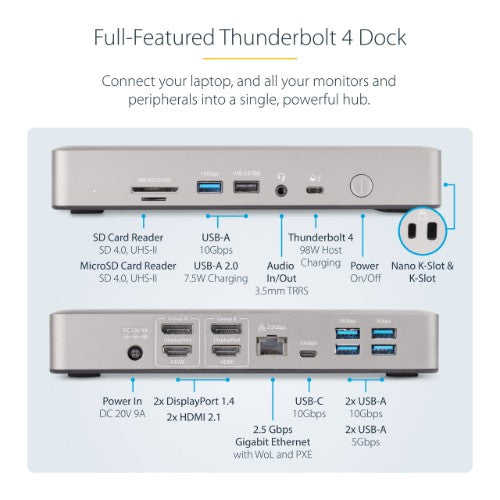

| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Headphone connectivity |
3.5 mm |
| Host interface |
Thunderbolt 4 |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.0 |
| DisplayPort version |
1.4 |
| Network |
|---|
| Full duplex |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Copper ethernet cabling technology |
2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T |
| Performance |
|---|
| UASP support |
Yes |
| Maximum digital resolution |
7680 x 4320 pixels |
| Full duplex |
Yes |
| On/off switch |
Yes |
| Product colour |
Gray |
| Card reader integrated |
Yes |
| Cable lock slot |
Yes |
| LED indicators |
LAN, Power |
| Data transfer rate |
40 Gbit/s |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Cable lock slot type |
Kensington, Nano |
| HD type |
8K Ultra HD |
| Housing material |
Aluminum |
| Maximum refresh rate |
60 Hz |
| Technical details |
|---|
| Product colour |
Gray |
| Cable lock slot |
Yes |
| Data transfer rate |
40 Gbit/s |
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case width |
15" (380 mm) |
| Master (outer) case length |
12.2" (310 mm) |
| Master (outer) case height |
11.2" (285 mm) |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Power |
|---|
| Power source type |
DC |
| Input current |
2.5 A |
| Power consumption (max) |
180 W |
| Compatible power plug types |
US |
| AC input voltage |
110 - 240 V |
| Output voltage |
20 V |
| Output current |
9 A |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Indication |
|---|
| LED indicators |
LAN, Power |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Weight |
7.05 oz (200 g) |
| Width |
8.27" (210 mm) |
| Depth |
3.78" (96 mm) |
| Height |
1.34" (34 mm) |
| Package weight |
3.09 lbs (1.4 kg) |
| Package width |
9.25" (235 mm) |
| Package depth |
5.71" (145 mm) |
| Package height |
3.54" (90 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Product colour |
Gray |
| Cable lock slot |
Yes |
| LED indicators |
LAN, Power |
| Cable lock slot type |
Kensington, Nano |
| Packaging data |
|---|
| Package weight |
3.09 lbs (1.4 kg) |
| Package width |
9.25" (235 mm) |
| Package depth |
5.71" (145 mm) |
| Package height |
3.54" (90 mm) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
Thunderbolt |
| AC adapter included |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case width |
15" (380 mm) |
| Master (outer) case length |
12.2" (310 mm) |
| Master (outer) case height |
11.2" (285 mm) |
| Other features |
|---|
| Chipset |
Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546 |
