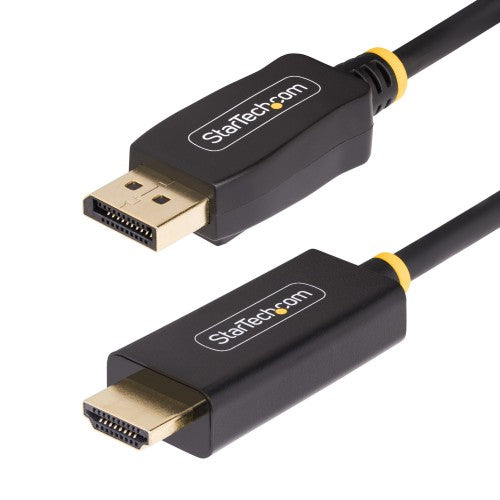

StarTech.com 6.6ft (2m) DisplayPort to HDMI Adapter Cable, 4K 60Hz with HDR, DP to HDMI 2.0b Cable, Active Video Converter
Key Features
- HIGH-PERFORMANCE: 6.6-foot (2-meter) DisplayPort to HDMI Adapter Cable connects a DisplayPort-enabled desktop to an HDR-capable 4K 60Hz HDMI display; HBR3 18Gbps bandwidth; Supports 4:4:4/RGB color space, 8-bit w/dithering, 7.1ch audio, and HDCP 1.4/2.3
- HDR ADAPTER CABLE: HDR improves visual quality by providing a wider range of brightness level and colors, resulting in a dynamic viewing experience; Integrated video adapter cable reduces potential points of failure, signal loss, and clutter
- NO DRIVERS OR SOFTWARE: Universal Adapter Cable is compatible with all hardware platforms and any operating system; Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- BUILD QUALITY & DESIGN: Built with adaptive receiver equalization to optimize input signal and amplify output signal to ensure display compatibility; Cage shielding prevents Electro-Magnetic Interference (EMI) and helps maintain signal integrity
- HOST COMPATIBILITY: Active Adapter Cable works with computers from Dell, HP, Lenovo, and other desktop manufacturers; Backward compatible with 4K 30Hz, 1080p, and other lower resolutions; Latching DisplayPort ensures reliable connection to the computer
Description
Connect a DisplayPort source to an HDMI display up to 6.6ft (2m) away, with support for up to 4K 60Hz HDR video

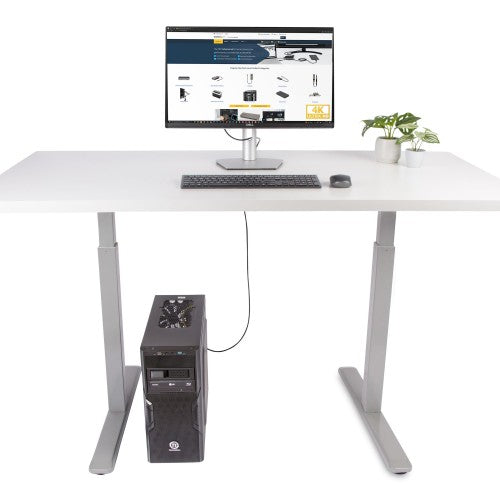

Connect a DisplayPort-enabled desktop to 4K 60Hz High Dynamic Range (HDR)-capable HDMI monitor, using this 6.6-foot (2-meter) Active DisplayPort to HDMI Adapter Cable.
4K 60Hz HDR Capabilities
HDR improves visual quality by providing a wide assortment of colors across a dynamic range of brightnesses, resulting in a more vibrant viewing experience. The DP 1.4 to HDMI 2.0b adapter supports 18Gbps bandwidth, allowing for 4:4:4/RGB color space, 8-bit with dithering, and 7.1ch audio. It also supports HBR3 and HDCP 1.4/2.3.
Compatibility
The Universal Adapter Cable is compatible with all hardware platforms and any operating system. Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities, enabling high-performance graphics with minimal CPU usage.
Designed and Built for IT Professionals
Integrated video adapter cable reduces points of failure, signal loss and clutter, and requires no additional power. Built with adaptive receiver equalization to optimize the input signal and amplify the output signal, to ensure display compatibility. Cage shielding prevents Electromagnetic Interference (EMI) and helps maintain signal integrity. This Active Adapter Cable works with computers from Dell, HP, Lenovo, and other desktop manufacturers. It is backward compatible with 4K 30Hz, 1080p, and other lower resolutions.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Converter type |
Active video converter |
| Chipset |
Synaptics - VMR7100 |
| Colour depth |
10 bit |
| HDMI version |
2.0b |
| DisplayPort version |
1.4 |
| Product colour |
Black |
| Cable length |
78.7" (2 m) |
| Connector 1 |
DisplayPort |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Jacket material |
Polyvinyl chloride (PVC) |
| Bandwidth |
18000 MB/s |
| Maximum resolution |
4096 x 2160 pixels |
| Supported graphics resolutions |
2048 x 1536 (QXGA), 3840 x 2160, 2560 x 1440, 4096 x 2160, 1920 x 1200 (WUXGA), 3072 x 1728, 3200 x 1800 |
| HDCP |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
120 Hz |
| HDCP version |
1.4/2.3 |
| High Dynamic Range (HDR) supported |
Yes |
| Supported audio channels |
7.1 |
| Colour sampling |
4:4:4 |
| Cable type |
Round cable |
| Refresh rate at maximum resolution |
60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
0.197" (5 mm) |
| Weight |
2.89 oz (82 g) |
| Package width |
6.69" (170 mm) |
| Package depth |
7.87" (200 mm) |
| Package height |
0.394" (10 mm) |
| Package weight |
3 oz (85 g) |
| Packaging data |
|---|
| Package width |
6.69" (170 mm) |
| Package depth |
7.87" (200 mm) |
| Package height |
0.394" (10 mm) |
| Package weight |
3 oz (85 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Master (outer) case width |
11.8" (300 mm) |
| Master (outer) case length |
15.7" (400 mm) |
| Master (outer) case height |
11.8" (300 mm) |
| Products per master (outer) case |
100 pc(s) |
