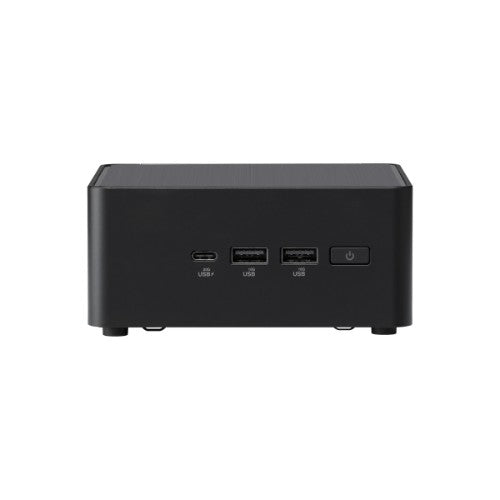

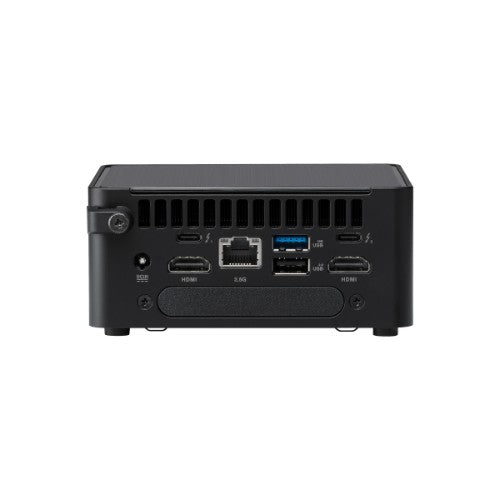

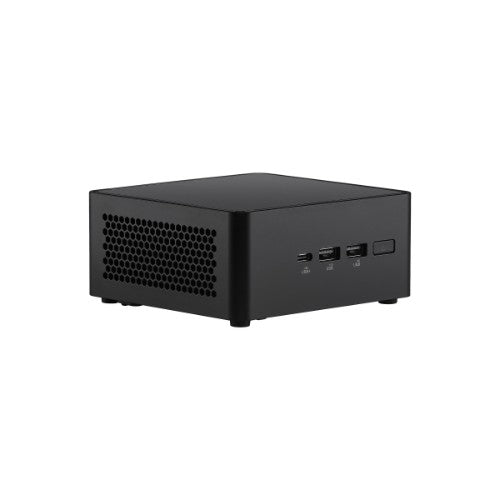

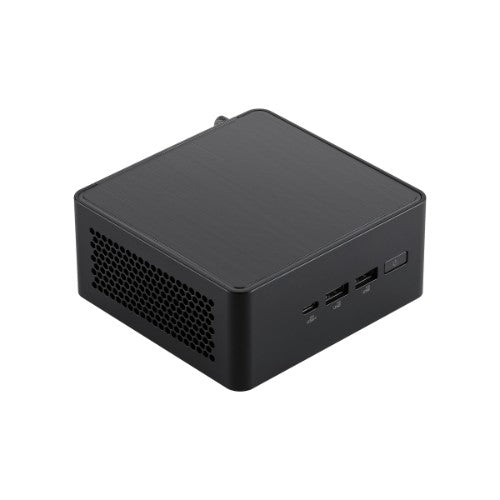

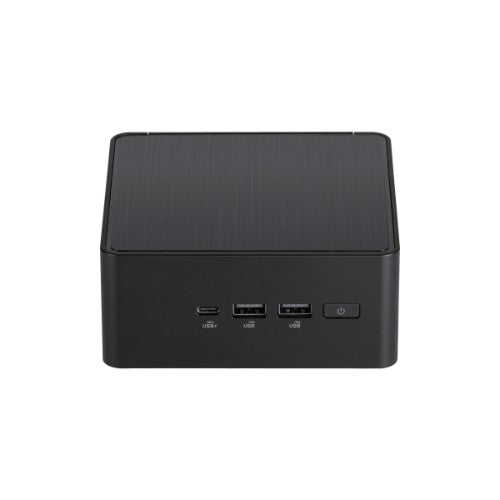

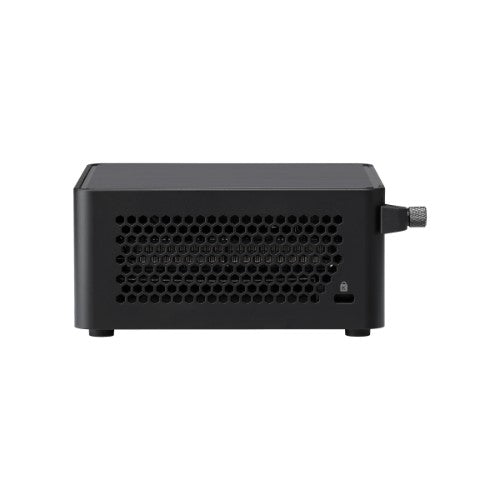

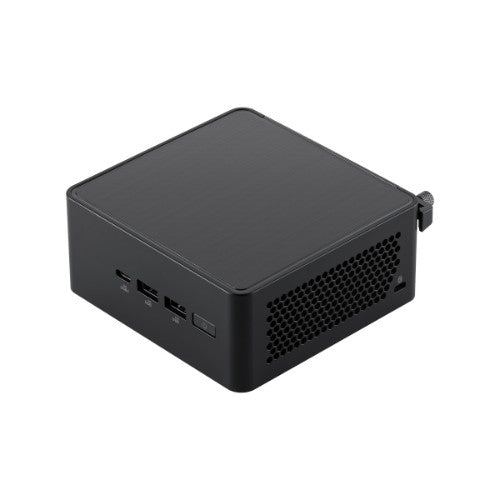

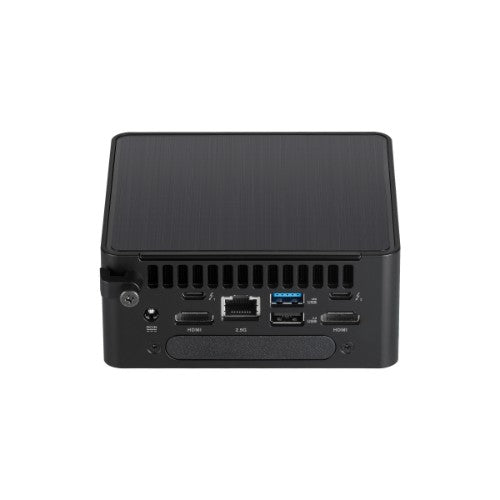

NUC 14 Pro Kit, Intel Core Ultra 5 135H, 117mm x 112mm
Key Features
- Performance: Delivers best-in-class performance among comparable mini-PC offerings
- Manageability: Most comprehensive mini-PC with Intel vPro® Enterprise for exceptional security, manageability, and stability
- AI Ready: Harnesses the prowess of Intel® Core™ Ultra processors’ three AI engines for high throughput, low power, and fast response
- Wi-Fi Sensing: Takes advantage of Wi-Fi sensing to deliver instant availability while reducing power consumption
- Wireless Connectivity: Delivers seamless connectivity for certified Bluetooth® dongle-free experiences
- Customizable: Designed for toolless chassis access making upgrades easier, safer, and faster
Description
Smaller, Faster, Better, AI ReadyThe ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
Specifications
| Processor |
|---|
| Built-in processor |
Yes |
| Processor model |
135H |
| Processor boost frequency |
4.6 GHz |
| Processor threads |
18 |
| Processor cores |
14 |
| Processor family |
Intel Core Ultra 5 |
| Processor manufacturer |
Intel |
| Processor cache |
18 MB |
| Performance cores |
4 |
| Efficient cores |
8 |
| Performance-core Max Turbo Frequency |
4.6 GHz |
| Efficient-core Max Turbo Frequency |
3.6 GHz |
| Performance-core base frequency |
1.7 GHz |
| Efficient-core base frequency |
1.2 GHz |
| Low Power Efficient-cores |
2 |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Processor cache type |
Smart Cache |
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Memory |
|---|
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR5-SDRAM |
| Maximum internal memory |
96 GB |
| Video |
|---|
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| Storage |
|---|
| Supported storage drive types |
HDD & SSD |
| Storage drive sizes supported |
2.5,M.2 |
| Maximum storage capacity |
4 TB |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| On-board graphics card model |
Intel Arc Graphics |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Network |
|---|
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| HDMI version |
2.1 |
| VGA (D-Sub) ports quantity |
0 |
| USB 2.0 ports quantity |
1 |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Thunderbolt 4 ports quantity |
2 |
| Design |
|---|
| Product type |
Mini PC barebone |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| On/off switch |
Yes |
| Cooling type |
Active |
| Product colour |
Black |
| Processor special features |
|---|
| Low Power Efficient-cores |
2 |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Colour |
|---|
| Product colour |
Black |
| Technical details |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Processor cores |
14 |
| Cooling type |
Active |
| Management features |
|---|
| On/off switch |
Yes |
| Power |
|---|
| Power supply type |
External AC adapter |
| Power supply |
120 W |
| Weight & dimensions |
|---|
| Width |
4.61" (117 mm) |
| Depth |
4.41" (112 mm) |
| Height |
2.13" (54 mm) |
| Weight |
21.2 oz (600 g) |
