7W Classe D, 120Hz-20kHz, 93 dB, 12.95W PoE
Key Features
- Stylish, flexible all-in-one speaker
- Connects to the standard network
- Easy installation with PoE
- Two-way audio with echo cancellation
- Remote health testing
Description

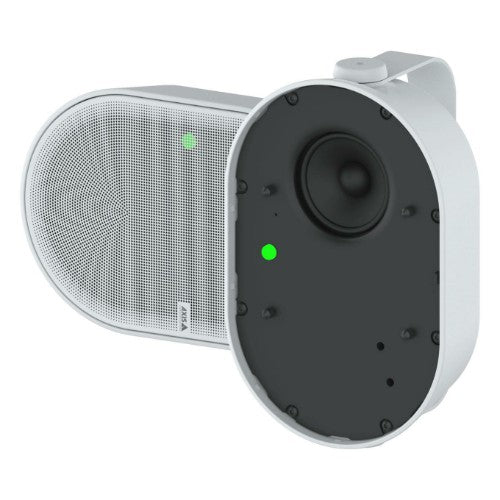

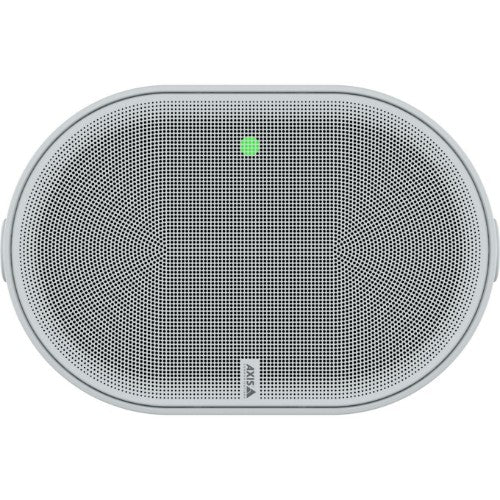

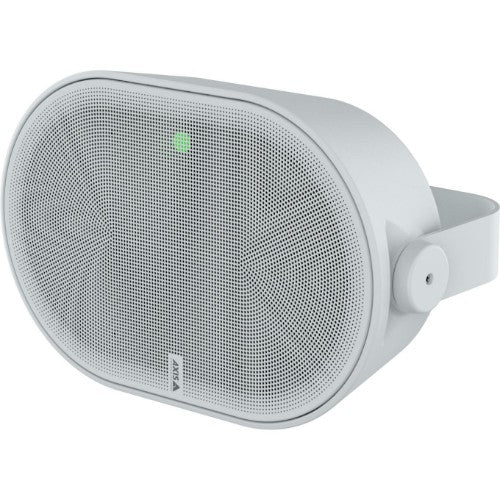

AXIS C1111-E Network Cabinet Speaker Broadcast clear live or prerecorded voice messages for business efficiency, asset protection, ads, or more with this stylish all-in-one speaker system. It’s also suitable for background music.
Smart and easy to integrateThis smart network speaker combines hardware and software in a single cost-effective unit. Built on an open platform, it’s made to work with your systems, from your VMS to your VoIP (using SIP) to the analytics you depend on. The built-in microphone supports remote health testing and two-way audio with full duplex and echo cancellation. Plus, AXIS Audio Manager Edge software comes built in, so you can schedule content, set user permissions, and reconfigure zones from anywhere. For coordinating audio across multiple sites, a standard version of our multisite management software, AXIS Audio Manager Center, is also available free of charge.
Good sound for all your audio needsEnjoy dependable audio, starting the moment you take the speaker out of the box. A preconfigured digital signal processor (DSP) ensures clear voice and background music every time. Live, scheduled, and event-triggered voice messages help you improve business efficiency, keep people safe and informed, and protect your property. The same system also lets you create the right atmosphere with background music. And with flexible audio zoning and content prioritization, you can count on your messages getting to the right place at the right time.

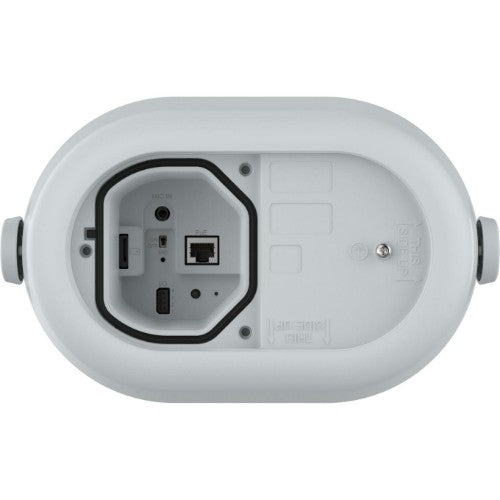

Easy, flexible installationIt doesn’t get much easier. A single network cable provides both power and connectivity using Power over Ethernet, so you don’t need to fuss with dedicated audio cabling. Its all-in-one design saves space and eliminates the need for external amplifiers or other audio equipment, and the click-in mounting process supports a safe and easy installation. Finally, it’s got a visual design worth showing off – in any setting. Sleek and stylish, it’s available in white and black, and it’s suitable for mounting on walls, ceilings, and poles, both indoors and in semi-protected outdoor installations – for example, under eaves.
Specifications
| Loudspeakers |
|---|
| Speaker type |
2-way |
| Speaker placement |
Wall-mountable |
| Speaker enclosure |
Closed |
| Number of drivers |
1 |
| Audio |
|---|
| Frequency range |
120 - 20000 Hz |
| Audio formats supported |
AAC-LC, ADPCM, G.711, G.726, WAV |
| Sound pressure level (max) |
93 dB |
| Beamwidth |
120 - 130° |
| Performance |
|---|
| Product colour |
White |
| Housing material |
Aluminum |
| LED indicators |
Yes |
| International Protection (IP) code |
IP55 |
| Recommended usage |
Intercom system |
| Amplifier |
|---|
| Amplifier class |
D |
| Amplifier |
Built-in |
| Amplifier output power |
7 W |
| Ports & interfaces |
|---|
| Card reader integrated |
Yes |
| Microphone in |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Power |
|---|
| Power consumption (typical) |
12.95 W |
| Power source type |
PoE |
| Weight & dimensions |
|---|
| Width |
9.96" (253 mm) |
| Depth |
5.08" (129 mm) |
| Height |
6.46" (164 mm) |
| Weight |
4.85 lbs (2.2 kg) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
10 - 100 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-30 - 50 °C |
| Operating relative humidity (H-H) |
-40 - 65% |
| Sustainability |
|---|
| Doesn't contain |
PVC/BFR |
| Technical details |
|---|
| Doesn't contain |
PVC/BFR |
| Compliance certificates |
REACH, RoHS |
| Other features |
|---|
| Quick start guide |
Yes |
| International Protection (IP) code |
IP55 |
| Audio formats supported |
AAC-LC, ADPCM, G.711, G.726, WAV |
