50" Ultra High Definition Commercial Display
Key Features
- 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
- Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
- Powerful System-on-Chip Design to fit your digital signage needs
- Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C while supporting both legacy NEC and Sharp protocol
- 400 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
- Integrated Media Player allows for playlist creation and scheduled playback via USB or onboard storage
- 18/7 commercial runtimes with built-in real-time clock and full scheduler capabilities
- Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Energy Star 8.0 Certified Product
- Full 3 year commercial warranty to allow for peace of mind and protection of your investment
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
- Fully compatible with Crestron Connected® software as well as Crestron XiO Cloud® Service
Description
Create pixel-perfect imagery at a cost-conscious price point with the new fully commercial Sharp ME Series large format displays. By focusing on bringing high-powered, integrated and easy-to-use media playback to the customer all while maintaining the proven reliability and quality of previous product, the ME series gives customers a reliable mainstream display to fit all of their digital signage needs. The flexible system-on-chip platform not only allows for high-end media playback via USB or internal storage but since these products are powered by Android 13, they also allow the ability to install separate APK’s if a third-party application needs to be installed. On top of this, the updated OSD design includes new and legacy functionality within a brand new aesthetically appealing and stylistic approach.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Panel type |
ADS |
| LED backlighting type |
Direct-lit LED |
| Touchscreen |
No |
| Display technology |
LED |
| Display diagonal |
50" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
450 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
4000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Vertical scan range |
23 - 76 Hz |
| Horizontal scan range |
15 - 135 kHz |
| Native refresh rate |
60 Hz |

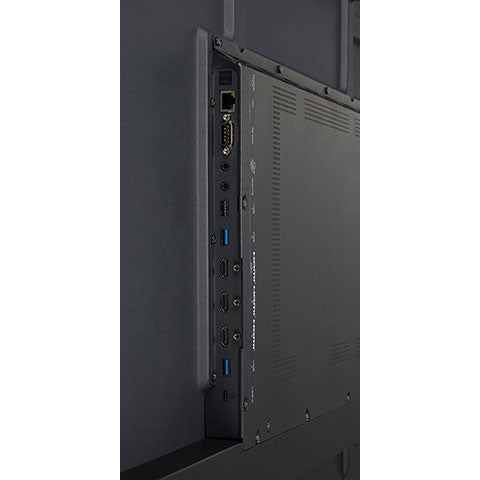

| Ports & interfaces |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| USB port |
Yes |
| HDMI version |
2.0 |
| RS-232C |
Yes |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| DVI port |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| USB ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
0.39" (9.9 mm) |
| Bezel width (side) |
0.39" (9.9 mm) |
| Bezel width (bottom) |
0.39" (9.9 mm) |
| Product colour |
Black |
| Panel mounting interface |
400 x 400 mm |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Performance |
|---|
| Purpose |
Commercial |
| Operating hours (hours/days) |
18/7 |
| On Screen Display (OSD) |
Yes |
| Power |
|---|
| Power consumption (max) |
105 W |
| Power consumption (typical) |
85 W |
| Power consumption (standby) |
0.5 W |
| Computer system |
|---|
| Built-in processor |
No |
| Weight & dimensions |
|---|
| Display width |
44" (1118.6 mm) |
| Display depth |
2.44" (62 mm) |
| Display height |
25.2" (639.2 mm) |
| Display weight |
25.8 lbs (11.7 kg) |
| Packaging data |
|---|
| Package width |
47.3" (1202 mm) |
| Package depth |
6.14" (156 mm) |
| Package height |
28.3" (719 mm) |
| Package weight |
38.6 lbs (17.5 kg) |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC, HDMI |
| Packaging content |
|---|
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC, HDMI |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 80% |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| Panel type |
ADS |
| LED backlighting type |
Direct-lit LED |
| Other features |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| Panel type |
ADS |
| Power consumption (max) |
105 W |
| Display technology |
LED |
| Bezel width (top) |
0.39" (9.9 mm) |
| Bezel width (side) |
0.39" (9.9 mm) |
| Bezel width (bottom) |
0.39" (9.9 mm) |
