StarTech.com 10ft/3m USB to Serial Adapter Cable, COM Retention, FTDI IC, USB-A to DB9 RS232, Interchangeable DB9 Screws/Nuts
Key Features
- INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to a serial device using the pre-installed DB9 screws, or install the included DB9 Nuts for compatibility with serial peripheral devices/cables; Add a DB9 RS-232 port to a computer, using a USB-A port
- LED INDICATORS: Transmit and Receive LED indicators offer real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop
- COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign if the cable is disconnected/reconnected or if the system is rebooted
- BUILD QUALITY: Solid one-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance the serial adapters reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors
- TECH SPECS: 10ft (3m) Cable Length; FTDI FT232R Chipset; Max Baud Rate: 921.6Kbps; 128 Byte RX and 256 Byte TX FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits
Description
Add an RS232 serial port to a laptop or desktop, using an available USB-A port
Add RS-232 serial communication support to USB-A enabled Data Terminal Equipment (DTE - e.g., desktop or laptop), using this 10ft (3m) straight through USB to Serial Adapter Cable.
Serial Port Expansion
The USB Serial Adapter adds an RS-232 serial DB/DE-9 (male) connector to a desktop or laptop via a USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables.

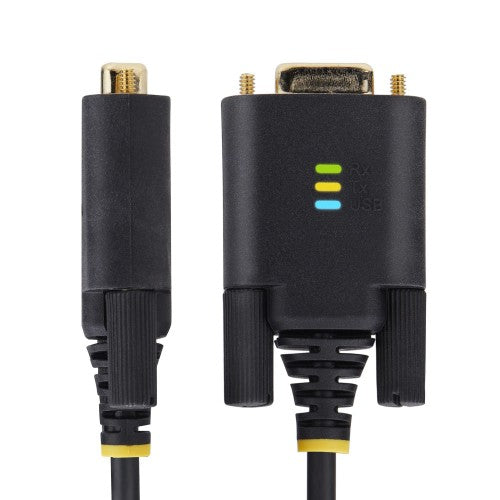

LED Indicators
Data transmission and reception LED indicators on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.
Seamless Connectivity
The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.
Built To Last
The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity.
The StarTech.com Advantage
Specifications
| Technical details |
|---|
| Weight |
4.23 oz (120 g) |
| Connector 2 |
DB-9 |
| Connector 1 |
USB Type-A |
| Product colour |
Black |
| Cable length |
118.1" (3 m) |
| Package width |
8.66" (220 mm) |
| Package height |
7.87" (200 mm) |
| Features |
|---|
| Weight |
4.23 oz (120 g) |
| Connector 2 |
DB-9 |
| Connector 1 |
USB Type-A |
| Product colour |
Black |
| Cable length |
118.1" (3 m) |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Chipset |
FTDI - FT232R |
| Stop bits |
1, 2 |
| Parity bit |
Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) |
256 B |
| Data bits |
7, 8 |
| Baud rate |
921.6 Kbit/s |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Packaging data |
|---|
| Package weight |
4.59 oz (130 g) |
| Package depth |
0.0394" (1 mm) |
| Package width |
8.66" (220 mm) |
| Package height |
7.87" (200 mm) |
| Weight & dimensions |
|---|
| Weight |
4.23 oz (120 g) |
| Width |
1.34" (34 mm) |
| Height |
0.63" (16 mm) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 80 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Logistics data |
|---|
| Master (outer) case width |
22.4" (570 mm) |
| Master (outer) case length |
14" (355 mm) |
| Master (outer) case height |
11.4" (290 mm) |
| Products per master (outer) case |
100 pc(s) |
