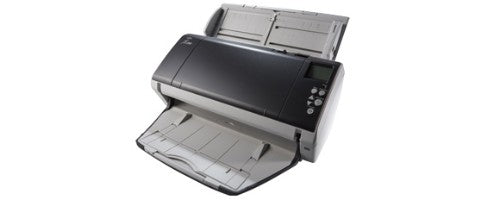

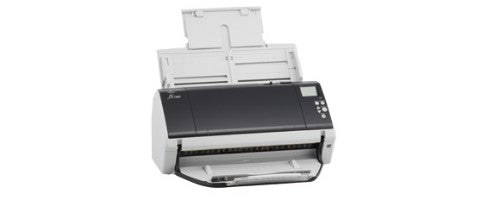

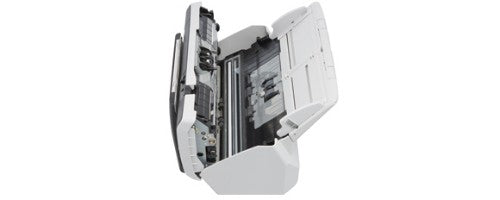

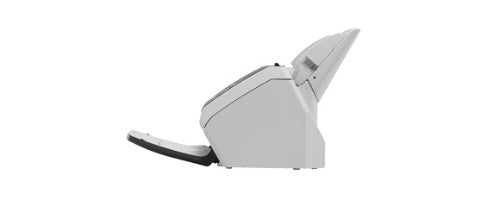

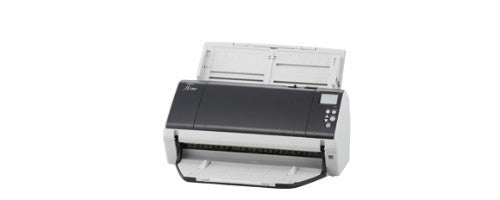

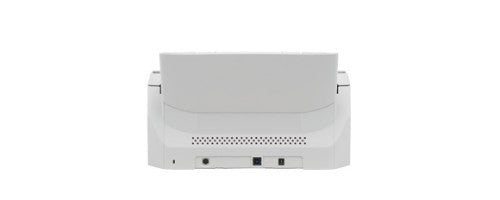

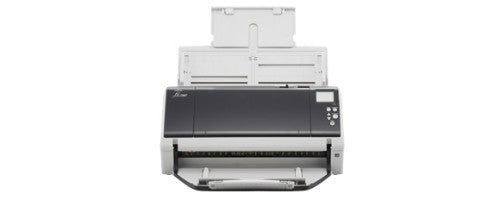

Fujitsu FI-7480 ADF + Manual feed scanner 600 x 600 DPI A3 Black, Gray

ADF, 600 x 600 dpi, 2 x CCD, 24 bit, 80 ppm, 130 ipm, 100 sheets, USB 3.0, 7.6 kg

Description

Wide variety of media captured by most compact scanner

The fi-7480 is ideal for office use as the smallest A3-capable scanner of its class(1). Its wide range feeding ability includes regular A8 to A3 sizes, as well as folded A2 documents and plastic cards. Additionally, no burdensome pre-sorting is required with mixed batch scanning.

- Fast scanning with fast start-up
fi-7480 scans at the high-speed of 80 ppm / 160 ipm (A4, landscape, Color, 200 / 300 dpi). It can also recover from power-saving mode (sleep mode) in a second or less, enabling users to scan immediately and continue work seamlessly without pauses or interruptions.
- Ability to scan various documents from thin to thick
It can support a wide variety of media. The paper feed mechanism can handle both thick and thin paper (27~413 g/m2), enabling users to scan documents without the concern of paper thickness.

Reliable, uninterrupted volume scanning

The fi-7480 can efficiently scan a large amount of documents. The ADF paper chute (feeder) can accommodate 100 sheets (A4 sheet, landscape, 80 g/m2) and additional papers can be added while scanning. Furthermore, it also includes several functions to ensure reliable scanning.

- Stacking Control function to boost work efficiency
This function controls paper output speed so that documents are not piled up in a disorderly fashion. This increases work efficiency as no time is spent realigning messy stacks of papers.
- Highly reliable paper feeding mechanism
The adopted functions, such as the Brake Roller, which separates each document, and the Skew Reducer, which assists in feeding mixed batches, are highly reliable and enable easy digitization. Additionally, each Hopper Side Guide moves independently, so you can easily adjust them to the document width for efficient scanning in mixed batches.
- Functions that minimize paper feeding errors
Even if documents are creased, wrinkled or when staples were not removed before scanning, Multi-feed Detection and iSOP (Intelligent Sonic Paper Protection) technology protects both the physical documents and the scanner hardware from potential damage. This helps improve and maintain work efficiency. Users can also utilize Manual/Single mode (so that the scanner waits for the next document to be placed within a specified time) for scanning where you need to check the contents of each document or delicate documents that may cause multi-feeds or paper jams.

Connect your business workflow with PaperStream IP and PaperStream Capture

The PaperStream IP scanner driver, which supports TWAIN/ISIS, avoids the inconvenience of fine adjustments to the settings for OCR processes. It automatically converts the images into exceptionally clean images, accelerating OCR even when scanning wrinkled or soiled documents, or documents with a background pattern. With an intuitive interface, PaperStream Capture effectively and efficiently allows you to feed information into your organization's workflow through various capture features during batch scanning.

PaperStream IP (32/64 Bit)

The PaperStream IP driver takes the work out of image cleanup when scanning invoices, ID cards, receipts, forms, or any other day to day paperwork. PaperStream IP automatically improves the image quality, removes unwanted backgrounds, and optimizes your scanned images for optical character recognition. It is fast and easy to use. Our latest innovation, Assisted Scan, allows users to replace poor images by visually selecting the image they lack rather than learning driver settings. If driver settings need to be adjusted for rare and difficult documents, our preview function allows scan operators to see their adjustments in real-time without time consuming re-scans. PaperStream IP works with both ISIS and TWAIN applications.

PaperStream Capture

PaperStream Capture makes advanced capture with Fujitsu scanners easier than before. PaperStream Capture has a streamlined User Interface to reduce training time and increase productivity. Not only have we provided users with the most common profiles used by customers—black and white, color, and auto-color—new profiles are easily created or modified through a wizard. We have organized the release screen so that batches can easily be suspended or continued. PaperStream Capture is also integrated with PaperStream IP’s assisted scanning for visual cleanup of documents. The reading of barcodes and patch codes make document separation easy, improving document organization.

PaperStream Capture Pro

A high-quality, front end scanning software, PaperStream Capture Pro enhances Fujitsu fi Series’ superior scanning abilities with an improved feature set that includes options for high level data extraction and indexing, the import of electronic images, and support for multi-station licensing. PaperStream Capture Pro offers cost-effective improvement tools such as PaperStream IP for optimized image capture. As a distributed capture model, this scanner software captures your data without added costs and resources. This solution benefits organizations and departments that require an efficient yet easy way to convert paper documents into a digital file for high level data indexing and extraction. Improve records management processes and drive down business expenses with PaperStream Capture Pro.

Specifications

Scanning
Output greyscale depth	8 bit
Output monochrome depth	1 bit
Black/white scanning colour modes	Grayscale, Monochrome
Maximum scan size	12 x 17" (304.8 x 431.8 mm)
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Output colour depth	24 bit
ADF scan speed (b/w, A4)	80 ppm
Sensor type	Dual CCD
Light source	White LED (4x)
Daily duty cycle (max)	24000 pages
Design
Built-in display	Yes
Scanner type	ADF + Manual feed scanner
Product colour	Black, Gray
Performance
Sensor type	Dual CCD
Light source	White LED (4x)
Daily duty cycle (max)	24000 pages
Scan drivers	ISIS, TWAIN
Input capacity
Auto document feeder (ADF) input capacity	100 sheets
Paper handling
Maximum ISO A-series paper size	A3
Scanning media types supported	Plain paper
Minimum scan area (ADF)	2 x 2.72" (50.8 x 69 mm)
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
ISO A-series sizes (A0...A9)	A3, A8
Ports & interfaces
Standard interfaces	USB 3.2 Gen 1 (3.1 Gen 1)
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
Software
Scan drivers	ISIS, TWAIN
Drivers included	Yes
Power
Power consumption (typical)	43 W
Power consumption (off)	0.35 W
Input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Media formats
ISO A-series sizes (A0...A9)	A3, A8
Technical details
Black/white scanning colour modes	Grayscale, Monochrome
Scanner type	ADF + Manual feed scanner
Product colour	Black, Gray
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Weight & dimensions
Width	15" (380 mm)
Depth	8.23" (209 mm)
Height	6.61" (168 mm)
Weight	16.8 lbs (7.6 kg)
Packaging content
Drivers included	Yes
Other features
Scanner type	ADF + Manual feed scanner
