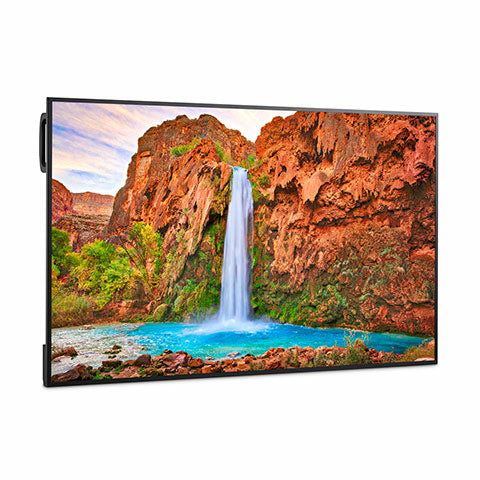

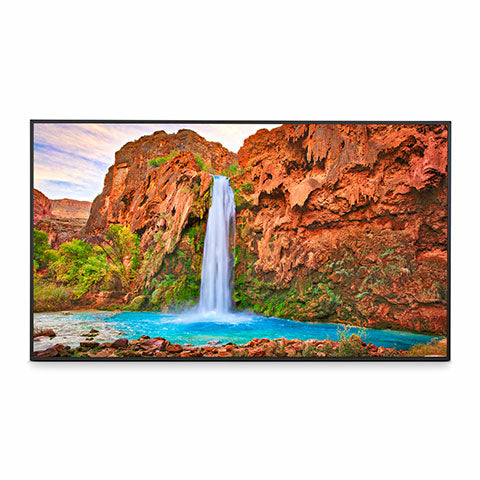

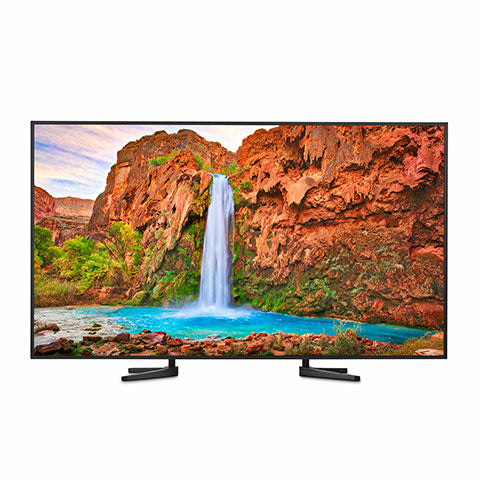

55" Ultra High Definition Commercial Display
Description
Create pixel-perfect imagery at a cost-conscious price point with the new fully commercial Sharp ME Series large format displays. By focusing on bringing high-powered, integrated and easy-to-use media playback to the customer all while maintaining the proven reliability and quality of previous product, the ME series gives customers a reliable mainstream display to fit all of their digital signage needs. The flexible system-on-chip platform not only allows for high-end media playback via USB or internal storage but since these products are powered by Android 13, they also allow the ability to install separate APK’s if a third-party application needs to be installed. On top of this, the updated OSD design includes new and legacy functionality within a brand new aesthetically appealing and stylistic approach.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Display number of colours |
1.07 billion colors |
| Panel type |
ADS |
| LED backlighting type |
Direct-lit LED |
| Touchscreen |
No |
| Display technology |
LCD |
| Display diagonal |
55" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
450 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0126 x 0.0126" (0.32 x 0.32 mm) |
| Vertical scan range |
23 - 76 Hz |
| Horizontal scan range |
15 - 135 kHz |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| High Dynamic Range (HDR) supported |
Yes |
| Native refresh rate |
60 Hz |

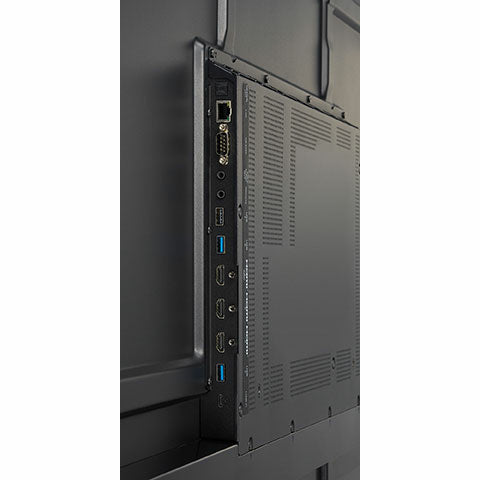

| Ports & interfaces |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| USB port |
Yes |
| HDMI version |
2.0 |
| RS-232C |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| DVI port |
No |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Placement supported |
Indoor |
| Product colour |
Black |
| Panel mounting interface |
400 x 400 mm |
| VESA mounting |
Yes |
| Performance |
|---|
| Purpose |
Commercial |
| HDCP |
Yes |
| Wi-Fi |
No |
| Power |
|---|
| Power consumption (max) |
220 W |
| Power consumption (typical) |
120 W |
| Power consumption (standby) |
0.5 W |
| Energy efficiency class (SDR) |
G |
| Computer system |
|---|
| Computer system |
Yes |
| Operating system installed |
Android |
| Operating system version |
13 |
| Weight & dimensions |
|---|
| Display width |
48.5" (1233 mm) |
| Display depth |
2.44" (62 mm) |
| Display height |
27.7" (703.5 mm) |
| Display weight |
29.1 lbs (13.2 kg) |
| Packaging data |
|---|
| Package width |
52.4" (1332 mm) |
| Package depth |
6.14" (156 mm) |
| Package height |
32.2" (819 mm) |
| Package weight |
65 lbs (29.5 kg) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 80% |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| Panel type |
ADS |
| LED backlighting type |
Direct-lit LED |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Thin Client |
|---|
| Operating system installed |
Android |
| Other features |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| Panel type |
ADS |
| Wi-Fi |
No |
| Power consumption (max) |
220 W |
| Display technology |
LCD |
