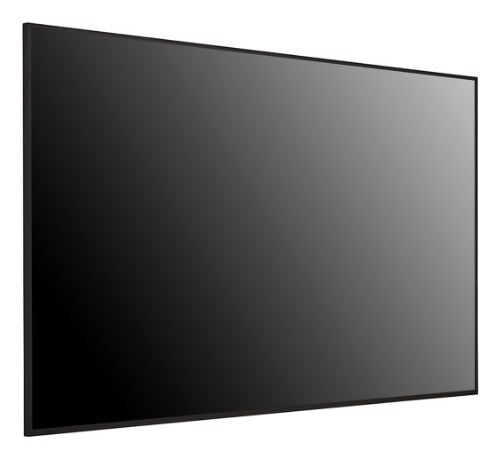

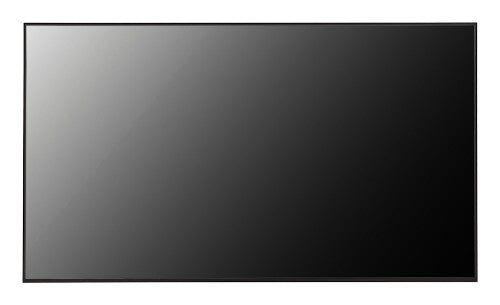

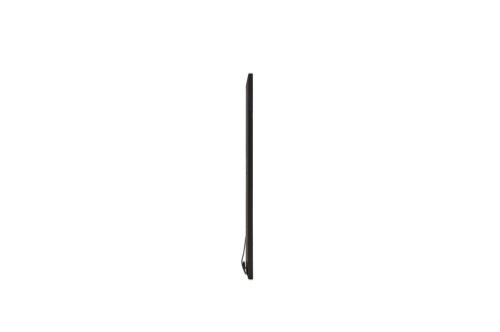

LG 65UH5N-E Digital signage flat panel 65" LCD Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7

65", 4K UHD (3840 x 2160), IPS, 500 nit, 8 ms, IP5X, SoC, Wi-Fi, PIP, PBP, Pro:Idiom, Beacon, Control Manager, SuperSign CMS, webOS 6.0

Key Features

• Resolution : 3,840 x 2,160 (UHD)
• Brightness (Typ.) : 500 nit
• Surface Treatement (Haze) : 28 %
• Bezel : 8.9 mm (T/R/L), 12.9 mm (B)
• Interface : HDMI(3) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
• webOS Smart Platform

Description

UHD Signage Display with LG webOS Platform and Advanced Security

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Convenient webOS Platform
The UH5N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability
Optimized for business environments, the UH5N-E is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

Design for Space Utilization
Designed with thin bezels and simple cable management, the UH5N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket. Bezels accessories can also be used to convert it into an art frame, making it a stylish interior element that matches customers' interior spaces.

Enhanced Security Features
The UH5N-E provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

Specifications

Display
LED backlight	Yes
Display number of colours	1.07 billion colors
Panel type	IPS
LED backlighting type	Edge-LED
Touchscreen	No
Display technology	LCD
Colour gamut	95%
Display diagonal	65"
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1100:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Panel life	50000 h
Native aspect ratio	16:9
Colour depth	10 bit
Native refresh rate	60 Hz
Haze rate	28%
Ports & interfaces
USB connector type	USB Type-A
Remote (IR) input	1
USB port	Yes
RS-232C	Yes
Wi-Fi	Yes
DisplayPorts quantity	1
Ethernet LAN	Yes
HDMI ports quantity	4
DVI port	No
Ethernet LAN (RJ-45) ports	1
USB version	2.0
USB ports quantity	1
HDMI input ports quantity	3
HDMI output ports quantity	1
Audio
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Bezel width (top)	0.35" (8.9 mm)
Bezel width (side)	0.35" (8.9 mm)
Bezel width (bottom)	0.508" (1.29 cm)
Product colour	Black
Panel mounting interface	300 x 300 mm
VESA mounting	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X
Picture-in-Picture	Yes
On Screen Display (OSD)	Yes
HDCP	Yes
Automatic brightness control	Yes
Plug and Play	Yes
HDCP version	1.4/2.2/2.3
Wi-Fi	Yes
Panel life	50000 h
Power
Power consumption (max)	200 W
Power consumption (typical)	145 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Energy efficiency class (SDR)	G
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Operating system installed	WebOS
Internal memory	16 GB
Operating system version	6.0
Weight & dimensions
Display width	57.1" (1450.3 mm)
Display depth	1.17" (29.7 mm)
Display height	32.7" (830.3 mm)
Display weight	53.4 lbs (24.2 kg)
Packaging data
Package width	63" (1600 mm)
Package depth	6.77" (172 mm)
Package height	38.2" (970 mm)
Package weight	67 lbs (30.4 kg)
Batteries included	Yes
Remote control included	Yes
Cables included	AC, Phone
Packaging content
Batteries included	Yes
Remote control included	Yes
Cables included	AC, Phone
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
USB connector type	USB Type-A
Panel type	IPS
LED backlighting type	Edge-LED
Real Time Clock (RTC)	Yes
Thin Client
Operating system installed	WebOS
Internal memory	16 GB
Other features
USB connector type	USB Type-A
Panel type	IPS
Wi-Fi	Yes
Power consumption (PowerSave)	101.5 W
Power consumption (max)	200 W
Display technology	LCD
Bezel width (top)	0.35" (8.9 mm)
Bezel width (side)	0.35" (8.9 mm)
Bezel width (bottom)	0.508" (1.29 cm)
Audio output	1
Plug and Play	Yes
