MSI Cubi 5 12M-265US Intel® Core™ i7 i7-1255U 16 GB DDR4-SDRAM 1 TB SSD Windows 11 Home Mini PC Black

Intel Core i7-1255U (12MB Cache), 16GB DDR4-SDRAM, 1000GB SSD, Intel Iris Xe Graphics, LAN, WLAN, Bluetooth, Windows 11 Home

Key Features

• Windows 11 Home
• Intel Core i7-1255U (12MB Cache)
• 16GB (3200MHz) DDR4-SDRAM (2 x 8) & 1000GB SSD

Description

Small But Powerful
Bring it home when you need without any inconvenience that it can be your mini PC and your portable storage device.

SUPPORT UP TO 8K RESOLUTION
Cubi 5 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.

BOLT TO THE NEXT POWER
Thunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS.

Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly

SEE MORE, DO MORE
With HDMI™, DP, and Thunderbolt 4, Cubi 5 allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency.

MSI Cloud Center
FAST, SECURE & WIRELESS BACKUP
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.

MSI CENTER
The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.

STABLE & POWERFUL
Equips up to 12th Gen Intel® Core™ i7 processor with 10 cores and 12 threads, delivering computing capability and keeping you in the flow, wherever you go. Also, enjoy more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.

WI-FI 6E TECHNOLOGY
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices at the same time, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speed up to 2.4Gbps.

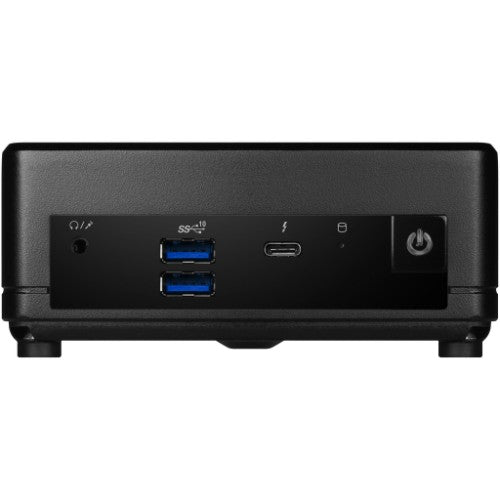

USB 3.2 GEN 2 Type A
With data transfer speeds up to 10Gbps, dual USB 3.2 Gen 2 Type A ports in the front I/O offer twice the bandwidth of the older USB 3.1 Gen 1 Type A ports, effectively halving any data delay or waiting time.

DUAL LAN - SECURITY
More than Dual LAN, the best way to secure your data and prevent the Hacker

FW TPM SUPPORT
FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.

EASY MAINTENANCE
Users can easily upgrade two SO-DIMM, one M.2 SSD or one 2.5” HDD/SSD by disassembling the cover. Made Cubi 5 an even flexible desktop and also reduce the time wasting on upgrading.

VESA MOUNT SUPPORT
VESA Mountable design allows users to hook Cubi 5 up anywhere you like or mount it with MSI PRO MP243 Series . Not only improve the flexibility of using Cubi 5, but also let users make good use of their space at home or at office.

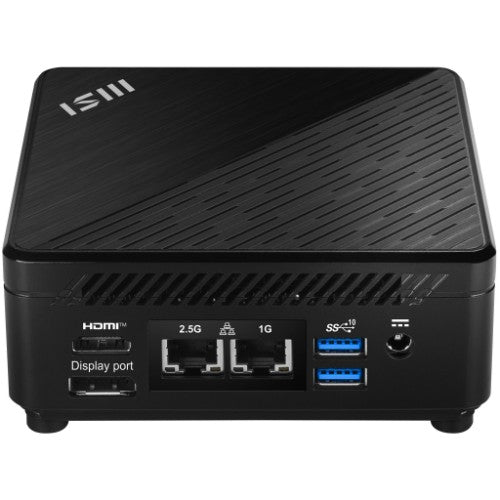

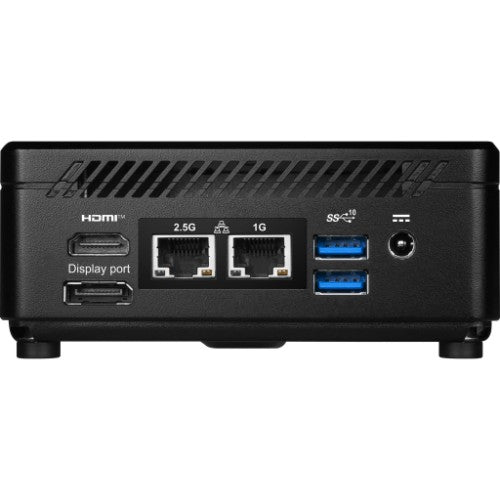

VARIOUS IO PORTS
With a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won’t need an adaptor or a dock.

Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.

Specifications

Processor
Processor generation	12th gen Intel® Core™ i7
Processor cache type	Smart Cache
Processor cache	12 MB
Processor model	i7-1255U
Processor manufacturer	Intel
Processor boost frequency	4.7 GHz
Processor threads	12
Processor cores	10
Processor family	Intel® Core™ i7
Performance cores	2
Efficient cores	8
Processor base power	15 W
Maximum turbo power	55 W
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core Max Turbo Frequency	4.7 GHz
Memory
Internal memory	16 GB
Memory layout (slots x size)	2 x 8 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Storage
Storage media	SSD
Optical drive type	No
SSD interface	PCI Express
SSD capacity	1 TB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	1 TB
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.3
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN data rates	10,100,1000 Mbit/s
WLAN controller model	Intel Wi-Fi 6E AX211
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
HDMI version	2.0b
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	1
DC-in jack	Yes
DisplayPort version	1.4
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
Technical details
Product type	Mini PC
Product colour	Black
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Audio output channels	2.1 channels
Motherboard chipset	Intel SoC
Warranty period	3 year(s)
Design
Volume	0.66 L
Product colour	Black
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Performance
Market positioning	Business
Product type	Mini PC
Audio output channels	2.1 channels
Motherboard chipset	Intel SoC
Software
Operating system installed	Windows 11 Home
Power
Power supply	65 W
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 35 °C
Weight & dimensions
Volume	0.66 L
Package width	8.7" (221 mm)
Package depth	19.9" (506 mm)
Package height	18.5" (469 mm)
Width	4.88" (124 mm)
Depth	4.88" (124 mm)
Height	2.11" (53.7 mm)
Package weight	2.93 lbs (1.33 kg)
Weight	20.8 oz (590 g)
Packaging data
Package width	8.7" (221 mm)
Package depth	19.9" (506 mm)
Package height	18.5" (469 mm)
Package weight	2.93 lbs (1.33 kg)
Packaging content
Mouse included	No
Display included	No
Keyboard included	No
Other features
On-board graphics card	Yes
Processor manufacturer	Intel
Warranty period	3 year(s)
