StarTech.com USB-C Multiport Adapter w/Attached USB-C to USB-A Dongle, Dual HDMI (4K30Hz/1080p60Hz), 3x USB-A 5Gbps, Mini Travel Dock, Laptop Docking Station, 1.3ft/40cm Cable (167B-USBC-MULTIPORT)
Key Features

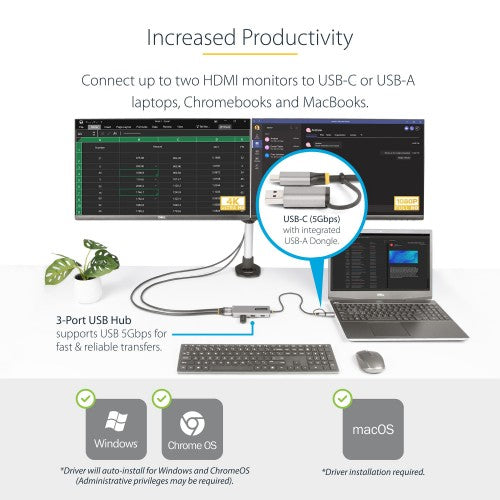

- INCREASED PRODUCTIVITY: Multiport Adapter adds dual HDMI displays to almost any laptop with a built-in USB-C host cable & attached USB-C to USB-A dongle; Supports resolutions up to 4K 30Hz (HDMI 1.4, Video Output 1) & 1080p 60Hz (HDMI 1.2, Video Output 2)

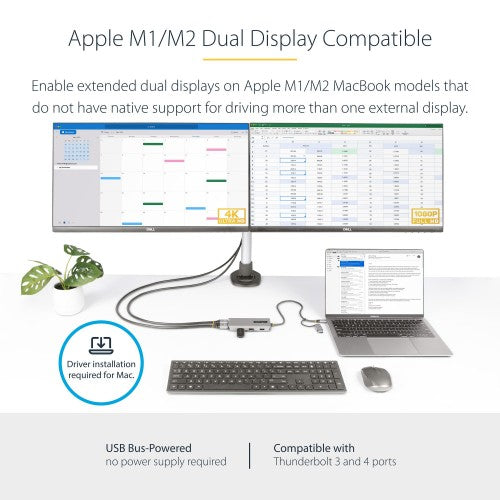

- APPLE M1/M2 DUAL DISPLAY COMPATIBLE: Universal compatibility with macOS, Windows and ChromeOS, enabling extended dual displays on USB & TB3/4 laptops incl. Apple M1/M2 MacBooks which are not capable of driving more than 1 external display natively
- HIGH-PERFORMANCE: 3-Port USB Type-A (5Gbps) Hub for fast/reliable data transfer; Works with legacy USB 2.0/1.1; Portable bus-powered adapter; Silicon Motion's Content Adaptive Technology uses processing algorithms to reduce latency for smoother graphics

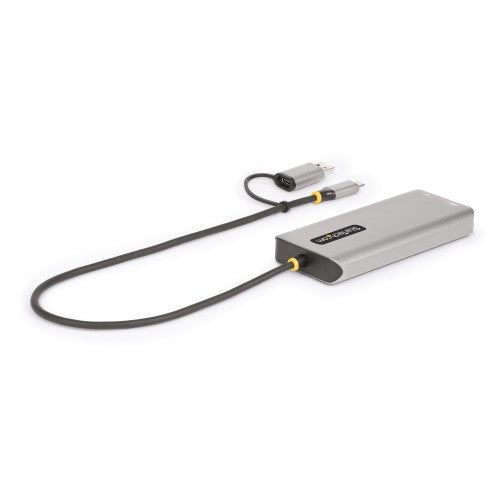

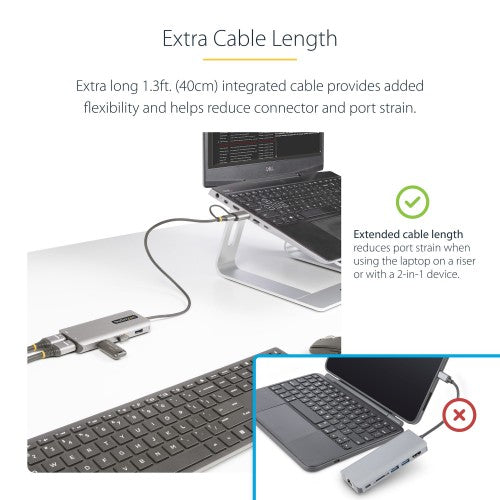

- EXTRA-LONG CABLE: Extended port reach with attached 1.3ft (40cm) host cable for easy setup that prevents adapter from dangling on the host connector; Ideal cable length to reduce port strain on 2-in-1 convertible laptops, or host laptops on riser stands
- OUR ADVANTAGE: Hybrid Mini docking station incl. Connectivity Tools app w/USB Event Monitoring to log/timestamp USB port usage for admins to identify potentially malicious devices & Windows Layout Utility restores app locations when re-connecting displays
Description
Add dual-HDMI monitors and 3x USB-A peripheral ports to a USB-C or USB-A-enabled laptop

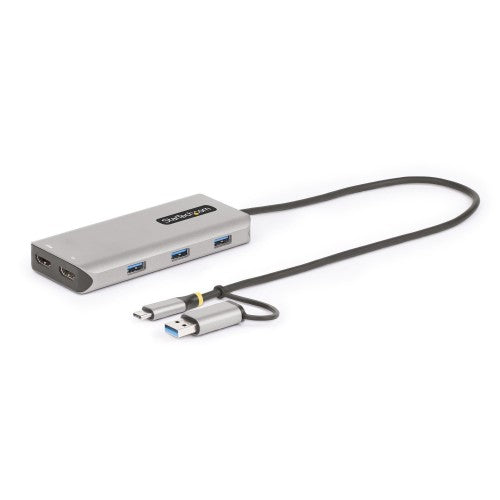

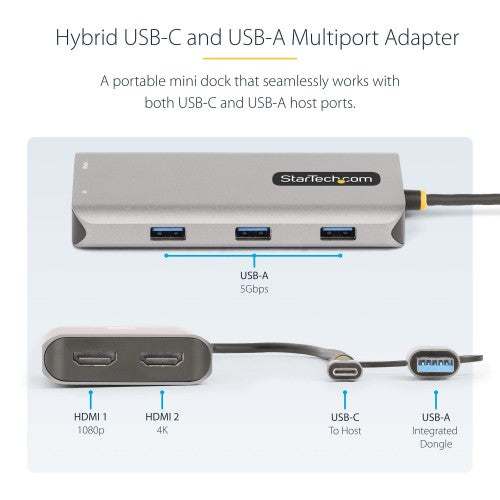

This USB Type-C & USB Type-A Multiport Adapter turns almost any laptop or desktop into a high-productivity workstation that supports dual external HDMI displays and features a 3-port USB hub. The Mini Dock has a built-in 1.3ft (40cm) USB-C host cable and includes a tethered USB-C to USB-A adapter, so it can support both USB-C and USB-A host computers.

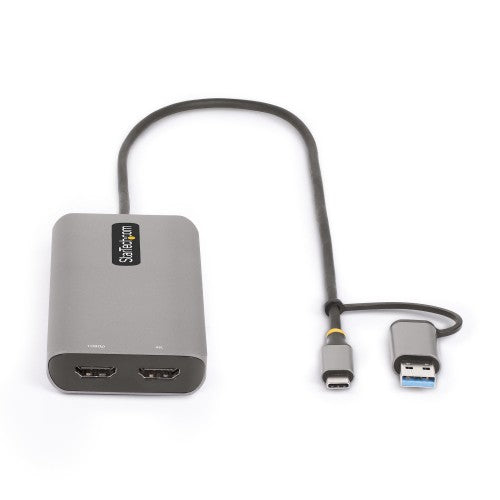

Dual Display Adapter
Enhance productivity with two HDMI output ports for connecting external monitors. The HDMI output ports support resolutions up to 4K 30Hz (Video Output 1, HDMI 1.4), and 1080p 60Hz (Video Output 2, HDMI 1.2). Dual external monitors increase productivity - enabling users to have different applications, documents, or windows open on each monitor.
Wide-Range Compatibility
The Multiport Adapter is compatible with Windows, macOS, and Chrome OS. With its tethered USB-C to USB-A dongle that ensures it ensures seamless USB compatibility with any host running a supported OS. The Multiport Adapter supports dual-extended displays on Apple M1/M2/M3 MacBooks, which are not capable of driving more than one external display natively.
Built-in 3-Port USB-A Hub
The USB-C & USB-A Multiport Adapter features three downstream USB-A ports. For fast and reliable data transfers the built-in USB hub supports SuperSpeed USB 3.2 Gen 1 (5Gbps) and is backward compatible with legacy USB 2.0 and USB 1.1 (HID) devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : Setup and save custom windows layouts.
•
USB Event Monitoring Utility : Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| HDMI ports quantity |
2 |
| HDMI version |
1.4 |
| Microphone in |
No |
| Headphone outputs |
0 |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN |
No |
| Performance |
|---|
| Maximum digital resolution |
3840 x 2160 pixels |
| Product colour |
Silver |
| Card reader integrated |
No |
| Data transfer rate |
5 Gbit/s |
| HD type |
4K Ultra HD |
| Housing material |
Aluminum |
| Maximum refresh rate |
60 Hz |
| Technical details |
|---|
| Product colour |
Silver |
| Data transfer rate |
5 Gbit/s |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE |
| Products per master (outer) case |
90 pc(s) |
| Master (outer) case width |
20.9" (530 mm) |
| Master (outer) case length |
17.5" (445 mm) |
| Master (outer) case height |
12.8" (325 mm) |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
USB |
| USB cable length |
15.7" (0.4 m) |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported |
Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |

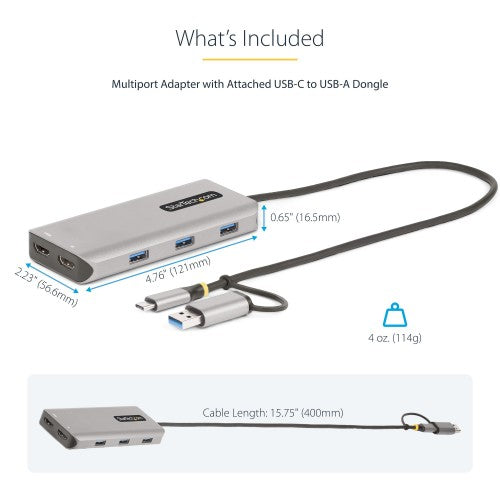

| Weight & dimensions |
|---|
| Weight |
4.02 oz (114 g) |
| Width |
2.24" (57 mm) |
| Depth |
4.72" (120 mm) |
| Height |
0.63" (16 mm) |
| Package width |
5.59" (142 mm) |
| Package depth |
6.69" (170 mm) |
| Package height |
1.18" (30 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported |
Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Product colour |
Silver |
| Packaging data |
|---|
| Package width |
5.59" (142 mm) |
| Package depth |
6.69" (170 mm) |
| Package height |
1.18" (30 mm) |
| Packaging content |
|---|
| Interface adapters included |
USB Type-A male - USB Type-C female |
| Quick start guide |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
90 pc(s) |
| Master (outer) case width |
20.9" (530 mm) |
| Master (outer) case length |
17.5" (445 mm) |
| Master (outer) case height |
12.8" (325 mm) |
| Other features |
|---|
| Chipset |
SMI - SM768G0, ITE - IT66121FN, VIA - VL817C0, Terminus - FE1.1S |
