3840x2160, 15 fps, 1/2.8", 0-0.19lux, 360° IR illumination, 360° Horizontal FOV, 55.3-21.8 ° Vertical FOV, IP66, IP67, 2kg
Description
Ideal for wide-area surveillance, this multidirectional camera delivers excellent overviews and detailed coverage. With highly efficient power consumption, it ensures sustainable surveillance with lower operating costs.
Wide area surveillance with high-quality overview—24/7AXIS P3738-PLE offers four channels with 4K per channel at 15 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.

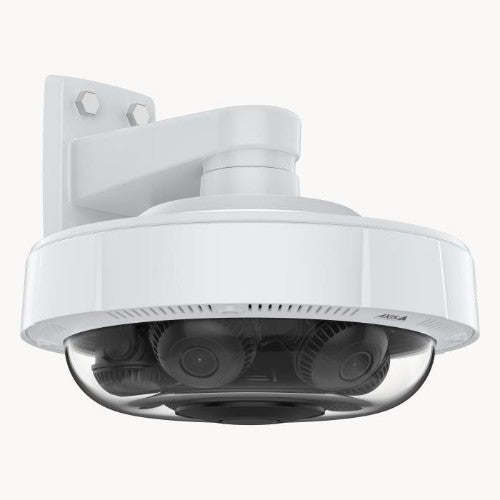

Brilliant DesignThis compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.
Cost-efficient and secureWith four camera heads in one camera, AXIS P3738-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access
Deep learning analyticsBuilt on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Specifications
| Performance |
|---|
| Remote viewing |
Yes |
| Type |
IP security camera |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Wide Dynamic Range (WDR) |
Yes |
| Day/night mode |
Yes |
| Design |
|---|
| IK code |
IK09 |
| Form factor |
Dome |
| Product colour |
White |
| Mounting type |
Ceiling |
| International Protection (IP) code |
IP66, IP67 |
| Camera |
|---|
| Tilt angle range |
25 - 95° |
| Pan range |
-90 - 90° |
| Angle of rotation |
100° |
| Camera pixel size |
1.45 µm |
| Lens viewing angle, horizontal |
108 - 40° |
| Lens viewing angle, vertical |
55 - 23° |
| Lens viewing angle, diagonal |
131 - 46° |
| Progressive scan |
Yes |
| Image sensor |
|---|
| Sensor type |
CMOS |
| Progressive scan |
Yes |
| Optical sensor size |
1/2.8" |
| Number of sensors |
4 |
| Panoramic camera |
|---|
| Maximum resolution (panoramic camera) |
3840 x 2160 pixels |
| Focal length range (panoramic camera) |
3.2 - 8.1 mm |
| Lens system |
|---|
| Number of lenses |
4 |
| Auto focus |
Yes |
| Zoom capability |
Yes |
| Night vision |
|---|
| Night vision |
Yes |
| LED type |
IR |
| Video |
|---|
| Maximum resolution |
3840 x 2160 pixels |
| Video formats supported |
H.264, H.265, M-JPEG |
| Frame rate |
15 fps |
| Video streaming |
Yes |
| Video recording |
Yes |
| Network |
|---|
| Ethernet interface type |
Gigabit Ethernet |
| Networking standards |
IEEE 802.1x |
| Ethernet LAN |
Yes |
| Live view |
Yes |
| Storage |
|---|
| Internal memory |
4096 MB |
| Flash memory |
8192 MB |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Memory |
|---|
| Internal memory |
4096 MB |
| Flash memory |
8192 MB |
| Technical details |
|---|
| Type |
IP security camera |
| Form factor |
Dome |
| Placement supported |
Indoor & outdoor |
| Product colour |
White |
| Mounting type |
Ceiling |
| Wide Dynamic Range (WDR) |
Yes |
| Day/night mode |
Yes |
| Progressive scan |
Yes |
| Sustainability compliance |
Yes |
| Sustainability certificates |
UL ECOLOGO |
| Compliance certificates |
CE, EAC, KC, RoHS, UKCA, VCCI, cUL |
| Security |
|---|
| HTTPS encryption |
Yes |
| Power |
|---|
| Power source type |
PoE |
| Certificates |
|---|
| International Protection (IP) code |
IP66, IP67 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 50 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Weight & dimensions |
|---|
| Weight |
4.41 lbs (2 kg) |
| Packaging content |
|---|
| Number of cameras |
1 |
