Description
TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4
Key Features
- Supports AMD Ryzen Threadripper PRO 7000 series/ Ryzen Threadripper 7000 series Processors
- Breakthrough Performance：16+8+4 Phases Digital VRM Solution
- Quad Channel DDR5：4*SMD R-DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
- Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
- Next-gen Connectivity: Dual USB4 Type-C ports
- Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
- PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with quick release design
- Hi-Fi Audio with DTS:X Ultra：ALC4080+ALC897 CODEC
- UC BIOS：User-Centred intuitive UX with Quick Access function
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeSpecifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Total number of SATA connectors | 8 |
| Audio connector | Yes |
| Supported storage drive interfaces | M.2, SATA |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of chassis fan connectors | 10 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD TRX50 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Total number of SATA connectors | 8 |
| Maximum internal memory supported by processor | 1 TB |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 2.0 channels |
| Performance | |
| Number of HDDs supported | 8 |
| Supported storage drive types | SSD |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD TRX50 |
| RAID levels | 0, 1, 10 |
| Windows operating systems supported | Windows 11 x64 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 2.0 channels |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Expansion card interfaces | |
| Audio connector | Yes |
| Processor | |
| Processor manufacturer | AMD |
| Maximum internal memory supported by processor | 1 TB |
| Compatible processor series | AMD Ryzen Threadripper 1000 Series |
| Maximum number of SMP processors | 1 |
| Processor socket | Socket sTR5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Quad-channel |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB |
| Maximum internal memory | 1 TB |
| Supported memory clock speed (max) | 7800 MHz |
| ECC сompatibility | ECC |
| Storage controllers | |
| Number of HDDs supported | 8 |
| Supported storage drive types | SSD |
| Supported storage drive interfaces | M.2, SATA |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 12 |
| RAID support | Yes |
| Graphics | |
| DirectX version | 12.0 |

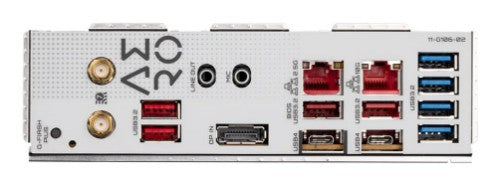

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 2.0 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 2 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Ethernet interface type | 10 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD TRX50 |
| Windows operating systems supported | Windows 11 x64 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 2.0 channels |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Audio chip | Realtek ALC4080 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 13.6" (345 mm) |
| Package depth | 11.6" (294 mm) |
| Package height | 3.15" (80 mm) |
| Package weight | 6.7 lbs (3.04 kg) |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Bundled software | Norton Internet Security (OEM version), LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 0.106 oz (3 g) |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.00247 oz (0.0700 g) |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 1.38" (35 mm) |
| Package width | 13.6" (345 mm) |
| Package depth | 11.6" (294 mm) |
| Package height | 3.15" (80 mm) |
| Package weight | 6.7 lbs (3.04 kg) |
| Width | 12" (305 mm) |
| Depth | 10.4" (264 mm) |
| Packaging content | |
| Bundled software | Norton Internet Security (OEM version), LAN bandwidth management software |
| Batteries included | Yes |
| Other features | |
| Height | 1.38" (35 mm) |
| Package width | 13.6" (345 mm) |
| Package depth | 11.6" (294 mm) |
| Package height | 3.15" (80 mm) |
| Package weight | 6.7 lbs (3.04 kg) |
