2 Channels ( 1 x 2 SFF-8644 connectors ), PCIe Gen3 x8, Max. 64Gbps, 4.44 × 2.71 × 0.72 inch
Description

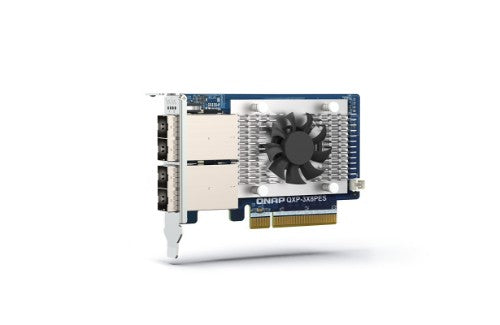

The QXP-3X8PES PCIe card is designed for expanding the capacity of a QuTS hero or QTS NAS by connecting it to QNAP TL PCIe Interface JBOD. Multiple JBODs can be daisy-chained via high-speed cables to scale up to petabyte-level storage to handle exponential data growth caused by archiving/backing up surveillance recordings, RAW multimedia files, big data, and virtualization applications.
Expand up to petabyte-scale capacity
A NAS with a QXP-3X8PES can be daisy-chained with multiple TL PCIe Interface JBODs (TL-R1200PES-RP, TL-R1600PES-RP and TL-R2400PES-RP), which supports SATA HDDs. This provides the potential to store up to petabyte-scale capacity.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Connectivity technology |
Wired |
| Bandwidth |
|---|
| Maximum data transfer rate |
64000 Mbit/s |
| Network |
|---|
| Maximum data transfer rate |
64000 Mbit/s |
| Design |
|---|
| Internal |
Yes |
| Component for |
NAS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
20 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
