750 W, APFC, 24 Pin, 2x CPU, 4x PCI-E, 8x SATA, 4x Peripheral, 120 mm FDB, 15-8A, 50/60Hz, 100-240V, 150 x 86 x 140 mm, Black
Description

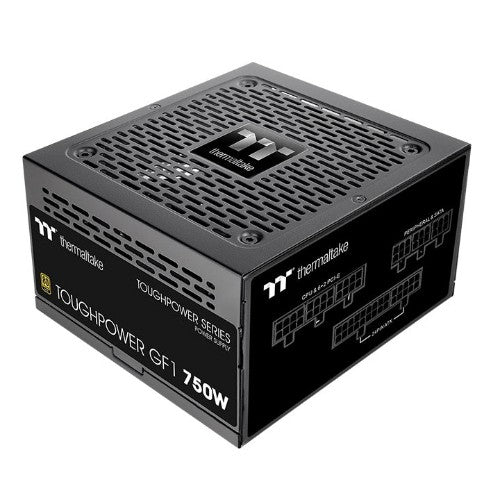

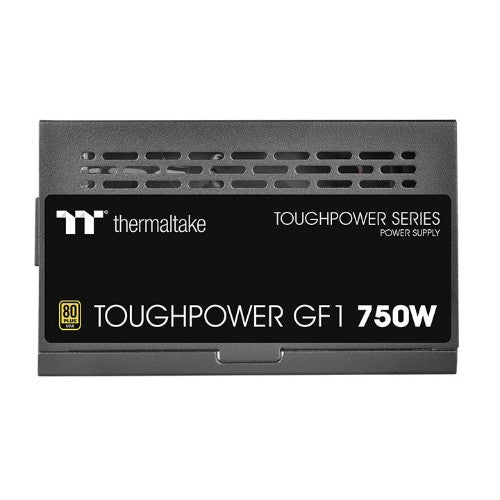

Toughpower GF1 750W - TT Premium EditionThe fully modular Toughpower GF1 series is available in 750W / 850W models and built to deliver 80 PLUS Gold efficiency. With an ample 10-year warranty, the Toughpower GF1 is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.
Compact Design with 140mm DepthThe Toughower GF1 Series is designed to be compact with a size of 140mm (D) x 86mm (H) x 150mm (L) providing ample space for cable management.
Zero Cable PlatformFarewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality

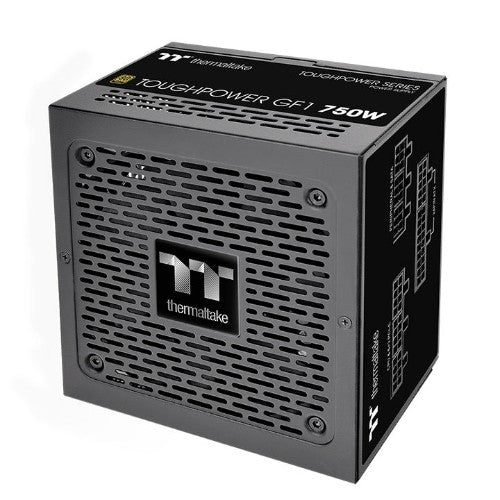

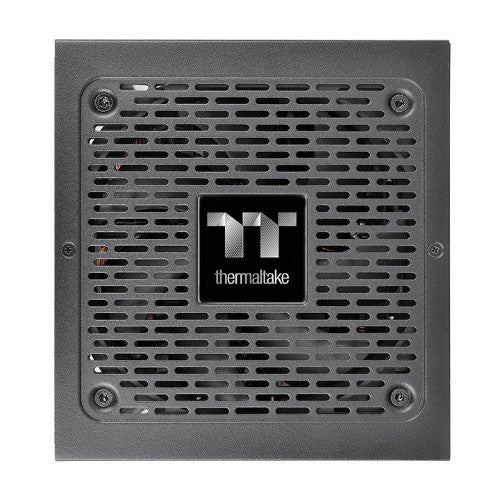

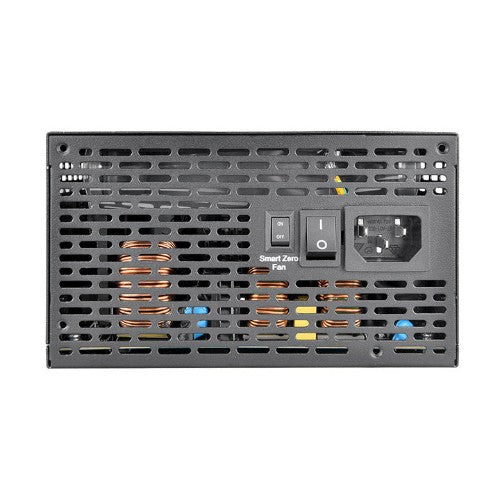

Be Smart, Stay QuietFeaturing a 120mm fluid bearing fan to deliver excellent airflow. Furthermore, the Smart Zero Fan will not spin until the load exceeds certain percentage of the power supply, minimizing undesired noise.
Fully Modular Low-Profile Flat CableOffers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
High Quality 105°C/221°F Main CapacitorsProviding great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail & High-Class TechnologiesPowerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation.
80 PLUS Gold Certified and Intel C6/C7 States ReadyToughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Built-in Industrial Grade ProtectionTo protect the hardware, Toughpower GF1 series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
Specifications
| Cooling |
|---|
| Fan diameter |
4.72" (12 cm) |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Performance |
|---|
| On/off switch |
Yes |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Platinum |
| Purpose |
PC |
| ATX version |
3.1 |
| Safety |
FCC/cTUVus |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
FDB |
| Design |
|---|
| 80 PLUS certification |
80 PLUS Platinum |
| Safety |
FCC/cTUVus |
| Product colour |
Black |
| Fan diameter |
4.72" (12 cm) |
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Illumination |
No |
| Cooling type |
Active |
| On/off fan switch |
Yes |
| Power |
|---|
| Total power |
750 W |
| Power Good signal delay range |
100 - 150 ms |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
15 - 8 A |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
100 W |
| Combined power (+12V) |
750 W |
| Combined power (+5V) |
100 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
20 A |
| Max output current (+12V) |
62.5 A |
| Max output current (+5V) |
20 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
3 A |
| Power protection features |
Over current, Over power, Over voltage, Short circuit, Under voltage |
| Hold time |
17 ms |
| Efficiency |
90% |
| Number of +12V rail(s) |
1 |
| Ports & interfaces |
|---|
| Motherboard power cable length |
23.6" (60 cm) |
| SATA power cable length |
500,650,800,950 mm |
| Peripheral (Molex) power cable length |
950,800,650,500 mm |
| Motherboard power connector |
24-pin ATX |
| Number of SATA power connectors |
8 |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| PCI Express power connectors (6+2 pin) |
4 |
| CPU power connector (4+4 pin) |
Yes |
| Floppy drive power connector |
1 |
| Floppy disk drive connector |
Yes |
| Cabling type |
Fully-Modular |
| PCI Express power connectors (12+4 pin) |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-40 - 55 °C |
| Operating relative humidity (H-H) |
20 - 85% |
| Storage relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Width |
5.91" (150 mm) |
| Depth |
5.51" (140 mm) |
| Height |
3.39" (86 mm) |
| Packaging data |
|---|
| Package type |
Box |
| Certificates |
|---|
| 80 PLUS certification |
80 PLUS Platinum |
| Safety |
FCC/cTUVus |
