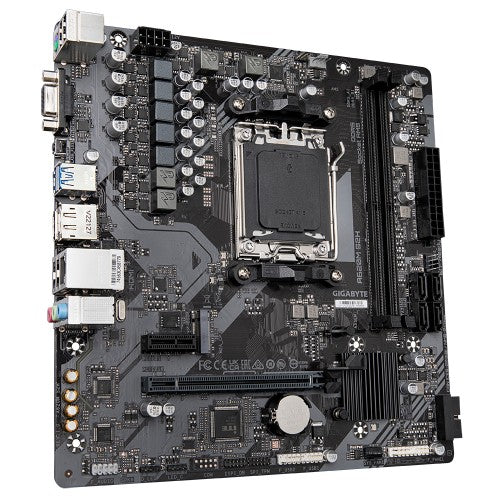

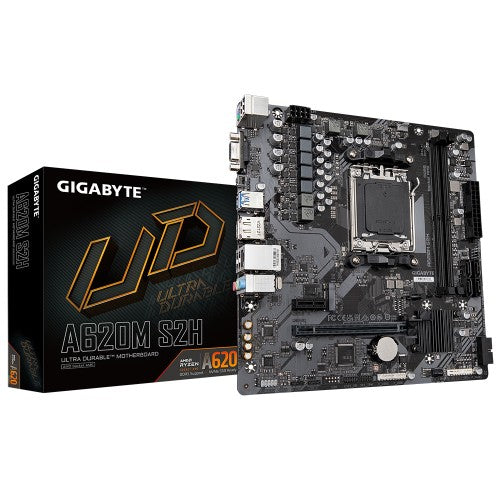

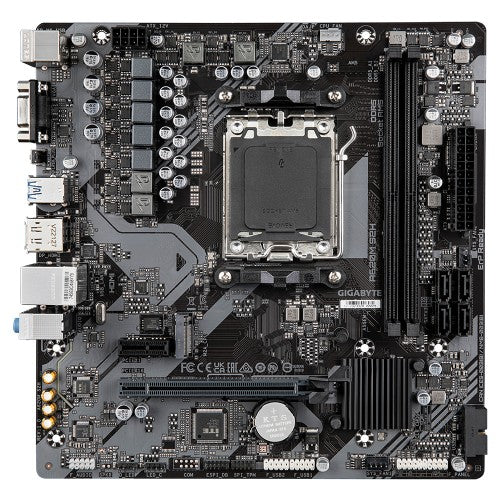

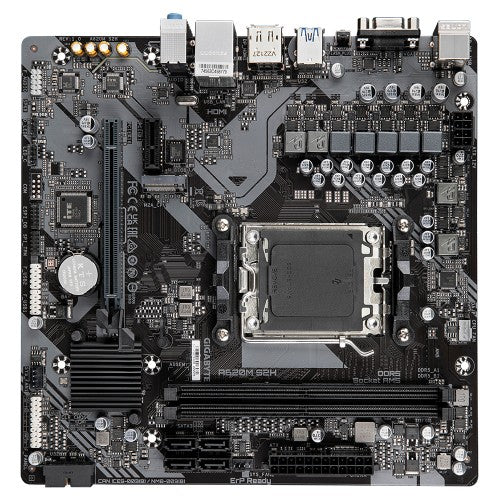

GIGABYTE A620M S2H motherboard AMD A620 Socket AM5 micro ATX

A620M S2H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Key Features

• AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
• Unparalleled Performance：5+2+2 Phases Digital VRM Solution
• Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
• SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
• EZ-Latch：PCIe x16 Slot with Quick Release Design
• Fast Networks：GbE LAN
• Extended Connectivity：DP, HDMI, D-Sub
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Total number of SATA connectors	4
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Number of SATA III connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD A620
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Parallel processing technology support	Not supported
HDMI version	2.1
Motherboard form factor	micro ATX
Component for	PC
Total number of SATA connectors	4
Maximum internal memory supported by processor	96 GB
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Motherboard chipset family	AMD
Motherboard chipset	AMD A620
RAID levels	0, 1, 10
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	AMD
Maximum internal memory supported by processor	96 GB
Compatible processor series	AMD Ryzen 7000 Series
Supported processor sockets	Socket AM5
Processor socket	Socket AM5
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400,6600,6800,7200 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Maximum internal memory	96 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	7200 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	5
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0

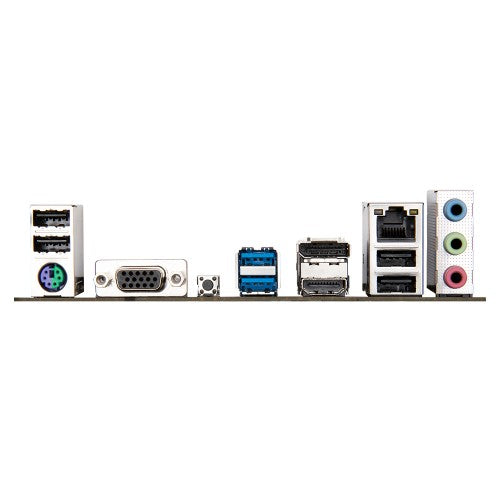

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	3
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Features
Motherboard chipset family	AMD
Motherboard chipset	AMD A620
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Product colour	Brown
Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 slots	1
PCI Express x1 slots	1
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
Packaging data
Package width	10.4" (265 mm)
Package depth	10.4" (265 mm)
Package height	2.13" (54 mm)
Package weight	32 oz (907 g)
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Bundled software	Norton Internet Security LAN bandwidth management software
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	0.106 oz (3 g)
Number of battery cells	1
Lithium weight per battery	0.00247 oz (0.0700 g)
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Height	1.38" (35 mm)
Package width	10.4" (265 mm)
Package depth	10.4" (265 mm)
Package height	2.13" (54 mm)
Package weight	32 oz (907 g)
Width	9.06" (230 mm)
Depth	8.86" (225 mm)
Packaging content
Cables included	SATA
Bundled software	Norton Internet Security LAN bandwidth management software
Batteries included	Yes
Other features
Height	1.38" (35 mm)
Package width	10.4" (265 mm)
Package depth	10.4" (265 mm)
Package height	2.13" (54 mm)
Package weight	32 oz (907 g)
