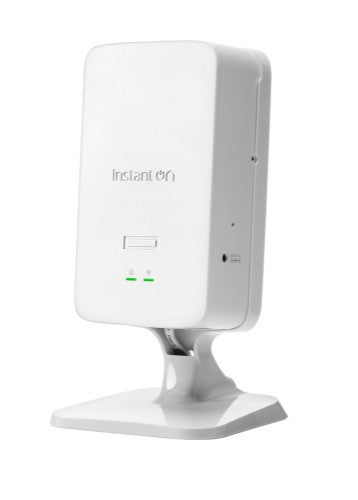

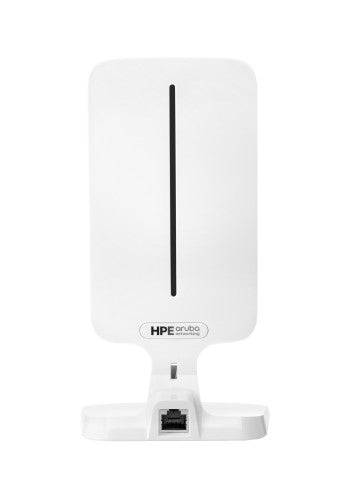

HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (US) AP22D

HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (US) AP22D, 2.4 GHz, 5 GHz, 1200 Mbit/s, OWE, WPA2, WPA3, 1000,2500 Mbit/s

Reasons To Buy

802.11ax Wi-Fi CERTIFIED 6™

HPE Networking Instant On Access Points AP22D features Orthogonal Frequency-Division Multiple Access (OFDMA) which allows access points to handle multiple Wi-Fi 6 capable clients on each channel simultaneously and improve efficiency by boosting overall capacity, reducing latency.
Target Wake Time (TWT): Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients.
Multi-User, Multiple Input, Multiple Output (MU-MIMO), allows the access point to simultaneously serve multiple clients (Wi-Fi 5 and Wi-Fi 6).

2.5 Gigabit Ethernet Uplink Port

HPE Networking Instant On Access Points AP22D offers increased available bandwidth to allow for more traffic over Wi-Fi 6 or with the downlink ethernet ports.
Use existing cabling infrastructure like Cat5 or Cat6(a) cables and avoid the additional cost of running new cables across your facility.
Future-proof your environment with the added bandwidth capacity to handle the ever-growing world of cloud-based applications.

Four Downlink 1 Gigabit Ethernet Ports

Connect up to four copper RJ-45 devices to the HPE Networking Instant On Access Points AP22D without the need for an additional switch to manage.
Downlink ports can power two 15W PoE (802.3af) devices without the intervention of a bulky PoE-Injector.

Description

HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (US) AP22D. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1200 Mbit/s. Security algorithms: OWE, WPA2, WPA3. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 51 W

Specifications

Data transmission
Ethernet LAN data rates	1000,2500 Mbit/s
Maximum data transfer rate	1200 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Number of users	75 user(s)
Networking standards	IEEE 802.11ax
Ethernet LAN data rates	1000,2500 Mbit/s
Certification	None
Maximum data transfer rate	1200 Mbit/s
MIMO	Yes
Network
Number of users	75 user(s)
Networking standards	IEEE 802.11ax
Security
Cable lock slot	Yes
Security algorithms	OWE, WPA2, WPA3
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Number of users	75 user(s)
Networking standards	IEEE 802.11ax
Ethernet LAN data rates	1000,2500 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate	1200 Mbit/s
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
DC-in jack	Yes
Cabling technology	10/100/1000Base-T(X)
Power
Power consumption (max)	51 W
Power consumption (typical)	50 W
Power over Ethernet (PoE)	Yes
DC voltage range	48 V
Design
Placement	Desk, Wall
Product colour	White
Certification	None
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	5.4 dBi
Antenna direction type	Semi-directional
Certificates
Certification	None
Weight & dimensions
Width	3.39" (86 mm)
Depth	1.85" (47 mm)
Weight	12.7 oz (360 g)
Height	5.91" (150 mm)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
