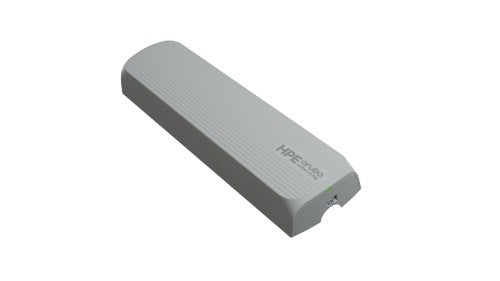

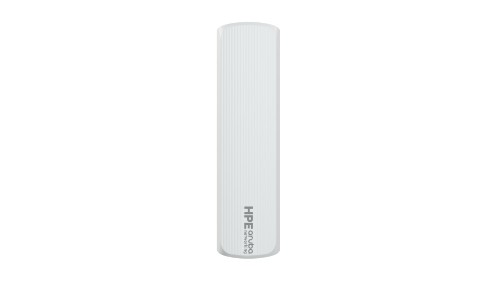

HPE Aruba Networking User Experience Insight 6Ghz 11ax PoE Powered Sensor without PSU, 2.4 GHz, 5 GHz, 6 GHz, 10,100,1000 Mbit/s
Reasons To Buy
Proactive Observability into Network and Application Performance with Vendor Agnostic UXI
Proactive observability with path analysis: Get an end-to-end blueprint of outbound traffic over the global network and visualize the cause and the location of the issue impacting end-user digital experience
Wi-Fi 6E monitoring: Validate the deployment of Wi-Fi 6E network with an industry-first Wi-Fi 6E hardware sensor
Single glance network health monitoring: Understand how your campus or branch network works for end-users with just a single glance at the HPE Aruba Networking User Experience Insight Dashboard, and help ensure the SLAs and XLAs are meet
Automatic triage: Capture intermittent issues as they happen and get to the root-cause for rapid troubleshooting, IT teams can download the PCAP file for further analysis or go back in time up to 30 days to validate any network changes
Data push destination: Create customer dashboard by sending test results and issue data captured by HPE Aruba Networking UXI to a destination that you manage. The current options are AWS S3, Google™ BigQuery™, Elasticsearch, Splunk (beta), BigPanda (beta), or you can set up a generic HTTP endpoint
24x7 Monitoring with Dedicated Hardware Sensors
Run up to 20K tests per day: HPE Aruba Networking User Experience Insight Sensor tests up to four networks and all the configured enterprise and web applications, running up to 20K tests per day, taking any guess work out of the picture
Backup mobile connection: The fully managed onboard mobile connection provides connectivity to the UXI Sensor when it cannot connect to Wi-Fi, cannot authenticate, or when the Wi-Fi backhaul is down
Last gasp power backup: An array of supercapacitors provides backup power for the UXI Sensor to notify you of the power issue, make sure the network is still up, and enter sleep mode gracefully
Web application testing: Tests hop-by-hop user journey on different web applications by recording a user workflow using Selenium and uploading it to UXI Dashboard for testing
In depth Digital Experience Monitoring with UXI Agent
Run synthetic tests from Windows, Mac, Android device: The UXI Agent empowers IT teams with unparalleled visibility into the end-user digital experience by providing deep insights into network, application, and device performance.
Device analysis: UXI Agent provides added analysis into device performance by offering insights like PID, serial number, battery percentage, health status, temperature, IP address, and location to help IT rapidly troubleshoot issues.
User self-service portal for end-users: When installed on laptops the agent provides performance overview tab for end-users that highlights network status and applications that are being tested and commonly asked device and network information by the IT teams such as OS, ISP, PHY Mode, MSC Index.
Rapidly Troubleshoot Helpdesk Tickets Related to Network Issues on Zebra Devices
Run synthetic tests from Zebra device: Deployed on handheld Zebra devices and continuously runs synthetic tests to monitor network and different configured applications. When the agent detects an issue, it goes into automatic triage mode to identify the root cause
Roaming and voice analysis: Provides additional analysis into device VoIP call quality and roaming performance. Using 802.11mc, the agent also pinpoints the exact location (on a floor map) of Zebra devices affected by network or application-related issues
Description
HPE Aruba Networking User Experience Insight 6Ghz 11ax PoE Powered Sensor without PSU. 2.4 GHz, 5 GHz, 6 GHz, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Network |
|---|
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Features |
|---|
| 6 GHz |
Yes |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (typical) |
12 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Product colour |
White |
| Antenna |
|---|
| Antenna type |
Internal |
| Weight & dimensions |
|---|
| Width |
2.28" (58 mm) |
| Depth |
4.02" (102 mm) |
| Weight |
24 oz (680.4 g) |
| Height |
10.4" (264 mm) |
