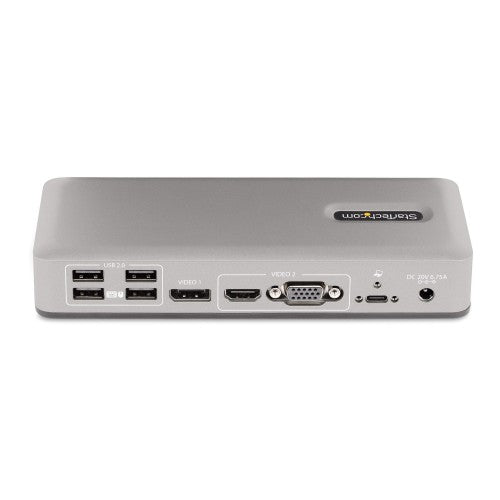

StarTech.com 101N-USBC-DOCK laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Gray
Save 30%
Description
StarTech.com Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, Multi Monitor Dock up to 4K 60Hz - USB 3.2/3.1 (5Gbps) Type-C Dock - 7x USB Hub, 85W PD, Windows & ChromeOS (101N-USBC-DOCK)
This USB Type-C Docking Station expands the connectivity of a USB-C laptop, enabling support for dual monitors and adding seven downstream USB ports. The USB-C Dock features driverless installation. It's compatible with USB-C and Thunderbolt 3/4 computers and works with Windows and ChromeOS computers. The Dock features a locking USB-C host port and includes a USB-IF Certified 3.3ft (1m) locking host cable.

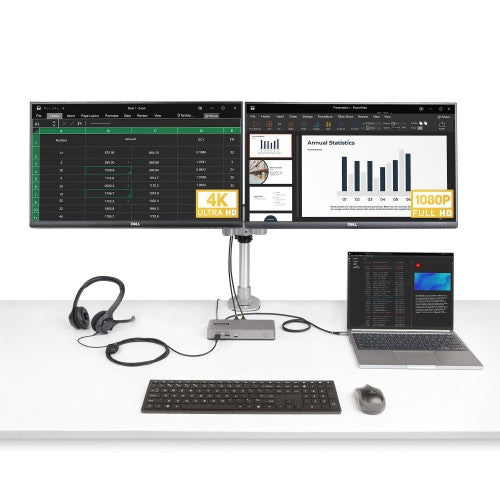

High-Performance Dual Video via MST
The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors.
Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video performance.
Platform
Single Monitor
Resolution
Dual Monitor
Resolution
DisplayPort 1.4
(Intel 11th Generation and Higher)
1x 4K 60Hz
2x 2560 x 1440p 60Hz
DisplayPort 1.2
(Intel 10th Generation and Below)
1x 4K 30Hz
2x 1920x1200/1080p 60Hz
Notes:
• All specified resolutions support RGB color representation (4:4:4)
• Computers with discrete graphics controllers may achieve higher performance
• Chart assumes combination of DisplayPort and HDMI video outputs, maximum VGA resolution is 1920x1200 in any configuration
Full-Featured Docking Station with Built-in 7-Port USB Hub
Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. The docking station features:
• 1x DisplayPort 1.4 port for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x HDMI 2.0b port with HDR for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x VGA port for connecting a Full High-Definition monitor with support for resolutions up to 1080p/1920x1200.
• 2x USB-A (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
• 4x USB-A (USB 2.0 480Mbps) ports for USB HID devices, such as a keyboard and mouse.
• 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.

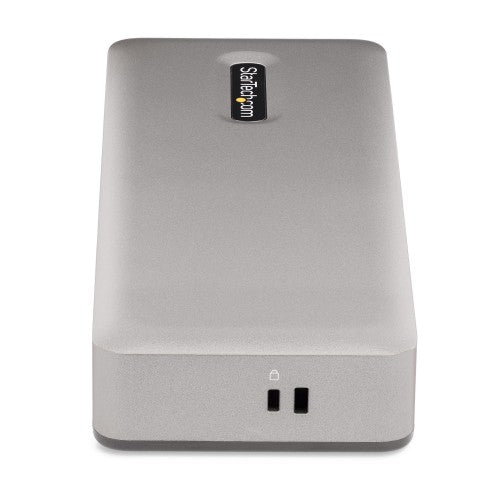

• 2x K-Slots (regular/nano) to tether the dock with a cable lock (sold separately) for security.
• Front facing Power Button to turn the dock on/off.

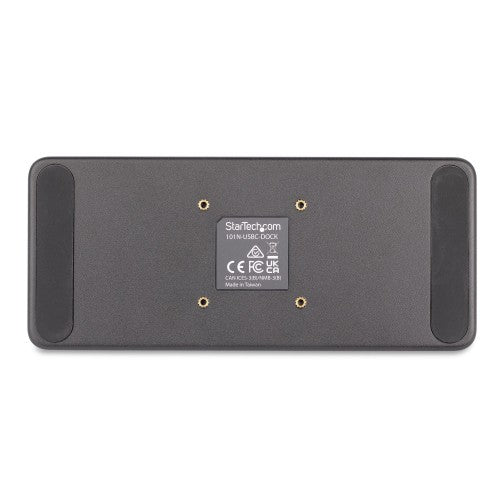

This dock is designed with a mounting pattern that enables it to be mounted when paired with StarTech.com mounting accessories (sold separately). With our mounting accessories, the dock can easily be attached to the VESA pattern on the back of a monitor, or to any flat surface, providing a clutter-free workspace. The mounting pattern ensures a secure fit, and the accessories are easy to install. The following mounts are compatible with this product:
• SSPMSUDWM - Docking Station Surface Mount
• SSPMSVESA - Docking Station VESA Mount
85W Power Delivery 3.0
The USB-C docking station supports 85W power delivery, facilitated by the included power adapter. With power delivery, users can confidently charge their devices while using the docking station. The provided power adapter ensures a consistent and stable power supply, allowing for uninterrupted productivity and device functionality.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : Setup and save custom windows layouts.
•
USB Event Monitoring Utility : Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
Key Features

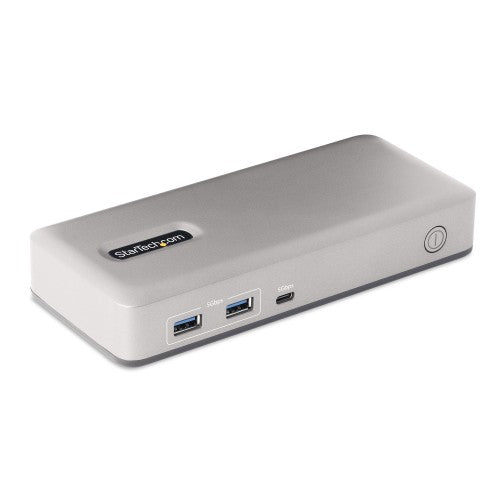

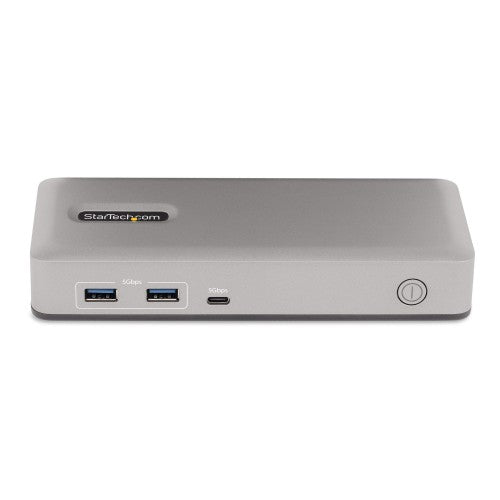

- 7-PORT USB HUB: The dock features a wide variety of extra USB ports for device connectivity; 2x USB 3.2 Type-A (5Gbps) front facing ports, 1x USB 3.2 5Gbps Type-C front facing port, 4x USB 2.0 Type-A HID rear facing ports; Features Driverless installation
- FLEXIBLE MULTIMONITOR OUTPUT: Provides video versatility with DisplayPort (DP) 1.4, HDMI 2.0b and VGA display outputs; Choose between single or dual video; For dual video pair DP as the primary output with HDMI or VGA as the secondary output
- HIGH-PERFORMANCE VIDEO: Supports up to 2x 2560x1440 60Hz through DP & HDMI ports or single 4K 60Hz (Intel 11th Gen or higher with DP 1.4 Alt Mode & MST req. for max performance); 1080p VGA; MST utilizes laptop GPU for uncompressed video & low CPU usage
- DEVICE SECURITY: Includes USB-IF Certified 3.3ft (1m) Locking USB-C host cable; Locking USB-C host port; Mounting holes for optional bracket; K-slot and Nano Slot; USB Event Monitoring & Windows Layout utilities
- 85W POWER DELIVERY 3.0: The port replicator includes a fully spec'd power adapter that provides full power to laptop and peripheral devices unlike consumer docks that use SMART power; Front-facing power button to turn docking station on/off
Description
Turn a USB Type-C enabled laptop into a dual-monitor DisplayPort and HDMI or VGA workstation with 6 USB-A and 1 USB-C peripheral portsThis USB Type-C Docking Station expands the connectivity of a USB-C laptop, enabling support for dual monitors and adding seven downstream USB ports. The USB-C Dock features driverless installation. It's compatible with USB-C and Thunderbolt 3/4 computers and works with Windows and ChromeOS computers. The Dock features a locking USB-C host port and includes a USB-IF Certified 3.3ft (1m) locking host cable.
High-Performance Dual Video via MST
The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors.
Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video performance.
Platform
Single Monitor
Resolution
Dual Monitor
Resolution
DisplayPort 1.4
(Intel 11th Generation and Higher)
1x 4K 60Hz
2x 2560 x 1440p 60Hz
DisplayPort 1.2
(Intel 10th Generation and Below)
1x 4K 30Hz
2x 1920x1200/1080p 60Hz
Notes:
• All specified resolutions support RGB color representation (4:4:4)
• Computers with discrete graphics controllers may achieve higher performance
• Chart assumes combination of DisplayPort and HDMI video outputs, maximum VGA resolution is 1920x1200 in any configuration
Full-Featured Docking Station with Built-in 7-Port USB Hub
Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. The docking station features:
• 1x DisplayPort 1.4 port for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x HDMI 2.0b port with HDR for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x VGA port for connecting a Full High-Definition monitor with support for resolutions up to 1080p/1920x1200.
• 2x USB-A (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
• 4x USB-A (USB 2.0 480Mbps) ports for USB HID devices, such as a keyboard and mouse.
• 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
• 2x K-Slots (regular/nano) to tether the dock with a cable lock (sold separately) for security.
• Front facing Power Button to turn the dock on/off.
This dock is designed with a mounting pattern that enables it to be mounted when paired with StarTech.com mounting accessories (sold separately). With our mounting accessories, the dock can easily be attached to the VESA pattern on the back of a monitor, or to any flat surface, providing a clutter-free workspace. The mounting pattern ensures a secure fit, and the accessories are easy to install. The following mounts are compatible with this product:
• SSPMSUDWM - Docking Station Surface Mount
• SSPMSVESA - Docking Station VESA Mount
85W Power Delivery 3.0
The USB-C docking station supports 85W power delivery, facilitated by the included power adapter. With power delivery, users can confidently charge their devices while using the docking station. The provided power adapter ensures a consistent and stable power supply, allowing for uninterrupted productivity and device functionality.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : Setup and save custom windows layouts.
•
USB Event Monitoring Utility : Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 85 W |
| DisplayPort version | 1.4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| Product colour | Gray |
| Card reader integrated | No |
| Cable lock slot | Yes |
| LED indicators | Power |
| Data transfer rate | 5 Gbit/s |
| Cable lock slot type | Kensington |
| HD type | 4K Ultra HD |
| Housing material | Plastic |
| Maximum refresh rate | 60 Hz |
| Technical details | |
| Product colour | Gray |
| Cable lock slot | Yes |
| Data transfer rate | 5 Gbit/s |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS, Trade Agreements Act (TAA) |
| Products per master (outer) case | 12 pc(s) |
| Master (outer) case width | 13.6" (345 mm) |
| Master (outer) case length | 17.9" (455 mm) |
| Master (outer) case height | 11.1" (282 mm) |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | DC |
| Input current | 2.37 A |
| Power consumption (max) | 135 W |
| Compatible power plug types | US |
| AC input voltage | 100 - 240 V |
| Output voltage | 20 V |
| Output current | 6.75 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Other operating systems supported | ChromeOS |
| Indication | |
| LED indicators | Power |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Weight | 9.7 oz (275 g) |
| Width | 7.28" (185 mm) |
| Depth | 3.15" (80 mm) |
| Height | 1.22" (31 mm) |
| Package weight | 2.2 lbs (1 kg) |
| Package width | 4.21" (107 mm) |
| Package depth | 8.74" (222 mm) |
| Package height | 5.12" (130 mm) |
| Design | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Product colour | Gray |
| Cable lock slot | Yes |
| LED indicators | Power |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package weight | 2.2 lbs (1 kg) |
| Package width | 4.21" (107 mm) |
| Package depth | 8.74" (222 mm) |
| Package height | 5.12" (130 mm) |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | USB Type-C |
| AC adapter included | Yes |
| Logistics data | |
| Products per master (outer) case | 12 pc(s) |
| Master (outer) case width | 13.6" (345 mm) |
| Master (outer) case length | 17.9" (455 mm) |
| Master (outer) case height | 11.1" (282 mm) |
| Other features | |
| Chipset | Realtek - RTD2142, Realtek - RTS5450M, Realtek - RTS5451, Realtek - RTS5411S, Terminus - FE1.1s |
