Description
Description

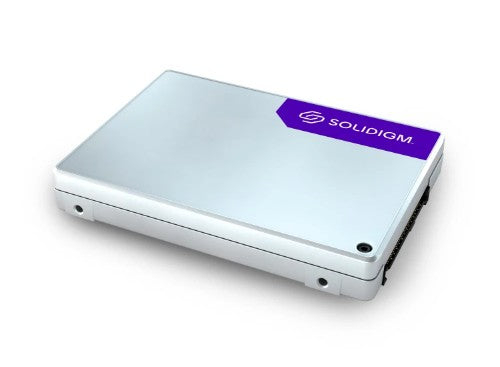

D5-P5336Optimized for the edge to the core, the D5-P5336 is a hyper-scalable, cost-effective solution for data- and read-intensive workloads that lets you efficiently accelerate data, no matter where it lives.
Value. Performance. Density. Pick Three.
Your storage solution shouldn’t compromise on value, performance, or density. With the Solidigm D5-P5336 you don't need to sacrifice, as you get them all. Massive scalability and read-optimized performance are finally available at a price point that substantially improves TCO.
Massive Scalability for High-Density Storage Environments
From data pipelines and data lakes to content delivery networks and cloud storage, if your application demands storing and accessing vast amounts of data efficiently at speed, the D5-P5336 has got your number. With up to 61.44TB capacity, you can store up to 2PB in a 1U chassis.
Significantly Improve TCO Across a Broad Range of Configurations
The D5-P5336 offers substantial TCO savings of up to 61% and reduces energy costs by 6X compared to TLC SSD + HDD hybrid storage arrays.
Accelerate Data in Widely Adopted, Read/Data-Intensive Workloads
Made to perform equally well in the heart of a data center or in an edge deployment, the D5-P5336 efficiently accelerates more data, in widely adopted, read/data-intensive workloads, delivering up to 2.3X faster read performance than some TLC SSDs and nearly 600X faster reads than leading SAS HDDs.
Deploy With Confidence
Solidigm D5 Series drives are designed and tested with a passion for—and a relentless focus on—quality and reliability. Our data reliability is enhanced on multiple levels with additional circuitry for critical data integrity functions, as well as testing that goes above and beyond industry specifications and common practices.
Specifications
| Hard drive | |
|---|---|
| PCI Express interface data lanes | x4 |
| SSD capacity | 15.4 TB |
| Memory type | QLC 3D NAND |
| Data transmission | |
| Random write (4KB) | 29900 IOPS |
| Random read (4KB) | 1005000 IOPS |
| Write latency | 31 µs |
| Read latency | 110 µs |
| Security | |
| Security algorithms | 192-bit AES |
| Endurance | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Performance | |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| PCI Express interface data lanes | x4 |
| SSD capacity | 15.4 TB |
| Security algorithms | 192-bit AES |
| Memory type | QLC 3D NAND |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 29900 IOPS |
| Random read (4KB) | 1005000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 31 µs |
| Read latency | 110 µs |
| Hardware encryption | Yes |
| PCI Express CEM revision | 4.0 |
| Design | |
| Component for | Server/workstation |
| Protection features | Shock resistant, Vibration proof |
| SSD form factor | U.2 |
| Features | |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| PCI Express interface data lanes | x4 |
| SSD capacity | 15.4 TB |
| Security algorithms | 192-bit AES |
| Protection features | Shock resistant, Vibration proof |
| Memory type | QLC 3D NAND |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 29900 IOPS |
| Random read (4KB) | 1005000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 31 µs |
| Read latency | 110 µs |
| Hardware encryption | Yes |
| SSD form factor | U.2 |
| PCI Express CEM revision | 4.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G162706L3 |
| Target workload | Mixed Use (MU) |
| Drive writes per day (DWPD) | 0.51 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating shock | 1000 G |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Technical details | |
| Interface | PCI Express 4.0 |
| Operating temperature (T-T) | 0 - 70 °C |
| Protection features | Shock resistant, Vibration proof |
| Operating shock | 1000 G |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Hardware encryption | Yes |
| SSD form factor | U.2 |
| Other features | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
