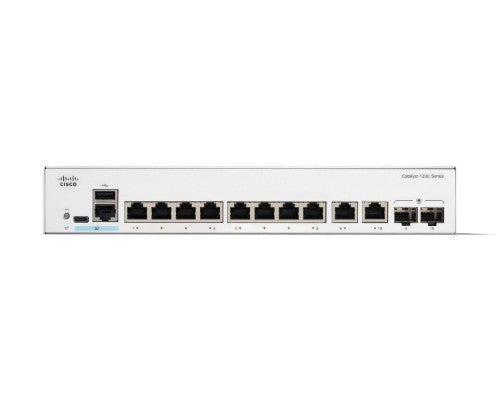

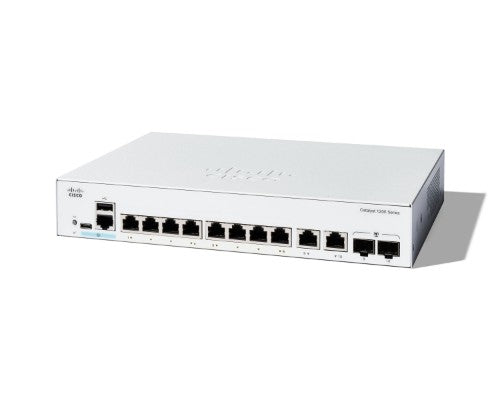

Catalyst 1200-8T-E-2G Smart Switch, 8 Port GE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1200-8T-E-2G)
Key Features
- SWITCH PORTS: 8 ports 10/100/1000 + 2x 1GE copper/SFP combo
- SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
- SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
- ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
- PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
Description
The Cisco Catalyst 1200-8T-E-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.
Specifications
| Management features |
|---|
| Reset button |
Yes |
| Multicast support |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| MIB support |
Yes |
| Switch layer |
L2 |
| Configuring Location Settings (CLI) |
Yes |
| Network |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az |
| Head-of-line (HOL) blocking |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Number of VLANs |
255 |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
No |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
255 |
| Data transmission |
|---|
| Number of VLANs |
255 |
| Jumbo frames |
9000 |
| Packet buffer memory |
1.5 MB |
| MAC address table |
8000 entries |
| Switching capacity |
20 Gbit/s |
| Number of queues |
8 |
| Jumbo frames support |
Yes |
| Forwarding rate |
14.88 Mpps |
| Performance |
|---|
| Packet buffer memory |
1.5 MB |
| Processor frequency |
1.4 MHz |
| Memory type |
DDR4-SDRAM |
| Mean time between failures (MTBF) |
2171669 h |
| Internal memory |
1000 MB |
| Flash memory |
512 MB |
| Firmware upgradeable |
Yes |
| Built-in processor |
Yes |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
White |
| Processor frequency |
1.4 MHz |
| Mean time between failures (MTBF) |
2171669 h |
| Firmware upgradeable |
Yes |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Ports & interfaces |
|---|
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
10 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Console port |
RJ-45/USB Type-C |
| Security |
|---|
| Loop protection |
Yes |
| Access Control List (ACL) rules |
512 |
| Security algorithms |
802.1x RADIUS |
| Queue scheduling algorithms |
Weighted Round Robin (WRR) |
| DoS attack prevention |
Yes |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Certificates |
|---|
| Certification |
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Memory |
|---|
| Packet buffer memory |
1.5 MB |
| Memory type |
DDR4-SDRAM |
| Internal memory |
1000 MB |
| Flash memory |
512 MB |
| Design |
|---|
| Reset button |
Yes |
| Country of origin |
China |
| Form factor |
1U |
| Product colour |
White |
| LED indicators |
Yes |
| Certification |
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Rack mounting |
Yes |
| Indication |
|---|
| LED indicators |
Yes |
| Mobile network |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (typical) |
10.65 W |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-25 - 70 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-5 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
7.28" (184.9 mm) |
| Depth |
10.6" (268.2 mm) |
| Height |
1.73" (43.9 mm) |
| Weight |
3.06 lbs (1.39 kg) |
| Packaging data |
|---|
| Package width |
11.8" (299 mm) |
| Package depth |
21.4" (544.8 mm) |
| Package height |
4.09" (103.9 mm) |
| Package weight |
5.4 lbs (2.45 kg) |
| Other features |
|---|
| Country of origin |
China |
