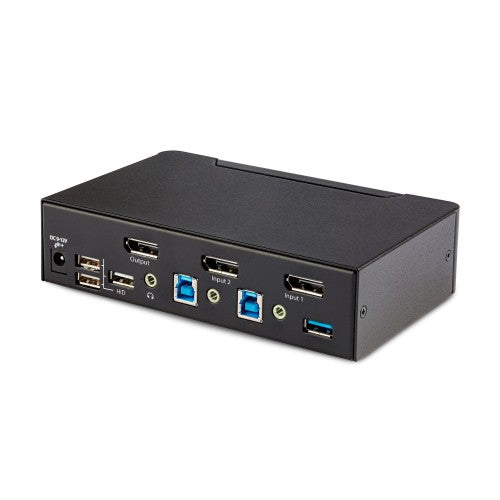

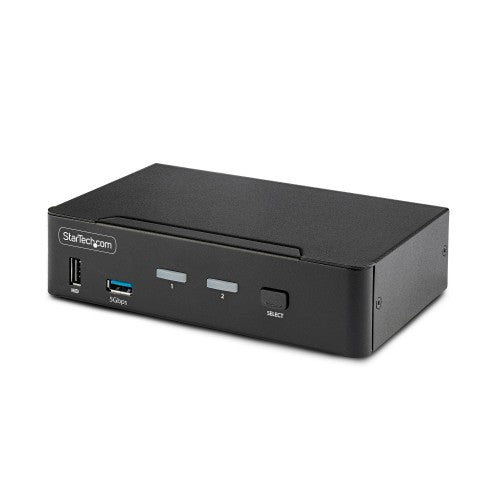

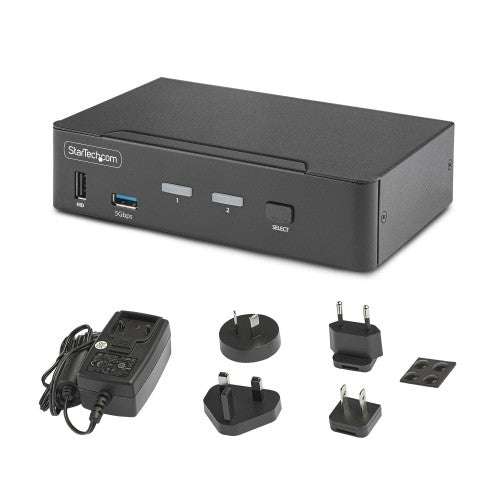

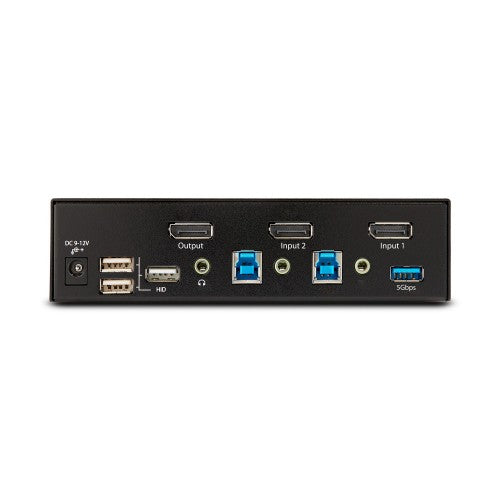

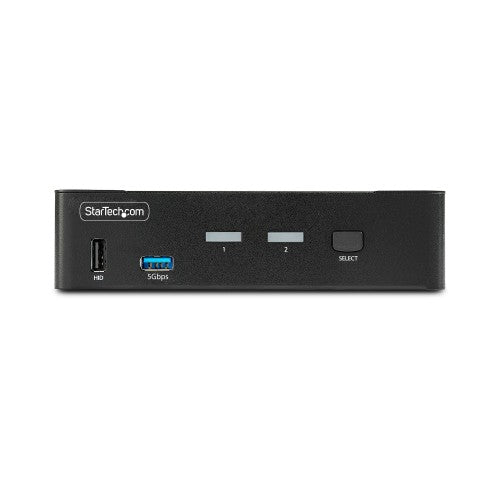

StarTech.com 2-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0 Ports, 4x USB 2.0 HID Ports, Push-Button & Hotkey Switching, TAA Compliant (D86A2-2-PORT-8K-KVM)
Key Features
- 8K 60HZ WITH HDR: Fast switch between two USB-A and DisplayPort-enabled desktops to share a keyboard, mouse, audio device, and a single 8K 60Hz DisplayPort monitor; DSC support required for maximum video performance; Supports MST Pass-through
- UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch works with any operating system including Windows, macOS, ChromeOS, and Linux; Compatible with all hardware platforms such as Intel and AMD; Supports ultrawide resolutions up to 5120x1440 60Hz
- MULTIPLE SWITCHING OPTIONS: Fast Switching via push-buttons or hotkeys with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer while controlling the other
- THOUGHTFUL DESIGN: Metal housing is durable and helps prevent Electro-magnetic Interference (EMI); Overcurrent Protection (OCP) prevents peripherals from overdrawing power, reducing the risk of damage to the KVM and attached USB devices
- TECHNICAL SPECIFICATIONS: KVM Switch is DisplayPort 1.4 compliant, supporting resolutions up to 8K 60Hz or 4K 144Hz, HDR10, HDCP 2.2/1.4, and DSC; Supports DisplayPort Audio and 3.5mm analog audio; USB 5Gbps Hub Ports; OS Independent
Description
Share a mouse, keyboard, USB 5Gbps Hub, and 8K 60Hz DisplayPort between two DisplayPort enabled computers
Share and switch between two USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices.
High-Resolution 8K 60Hz Video
This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120x1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Customizable Switching
This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
Universal Compatibility
The TAA-Compliant KVM Switch offers universal compatibility, working with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD.
Reliable Performance
The durable metal housing helps prevent Electro-magnetic Interference (EMI). Overcurrent Protection (OCP) ensures peripherals don't overdraw power, reducing the occurrence of device dropouts or shutdowns.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
6 |
| Console ports |
3.5mm headphone, DisplayPort, USB A |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4 |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Audio connections |
Yes |
| Headphone outputs |
3 |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
2 |
| Console DisplayPorts ports quantity |
1 |
| HDCP |
Yes |
| Performance |
|---|
| Daisy chain |
No |
| Chipset |
GL-3523 |
| HDCP |
Yes |
| Data transfer rate (max) |
5 Gbit/s |
| HD type |
8K Ultra HD |
| Plug and Play |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Scan interval |
3,8,15,30 s |
| High Dynamic Range (HDR) supported |
Yes |
| HDCP version |
1.4/2.2 |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Plug and Play |
Yes |
| Scan interval |
3,8,15,30 s |
| Push button |
Yes |
| On Screen Display (OSD) |
No |
| LED indicators |
Yes |
| Hot keys |
Yes |
| IP control |
No |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS, Trade Agreements Act (TAA) |
| Design |
|---|
| Mean time between failures (MTBF) |
130000 h |
| Product colour |
Black |
| Rack mounting |
No |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Housing material |
Steel |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Input current |
1 A |
| Output current |
3 A |
| Compatible power plug types |
EU, JP, UK, US |
| Output voltage |
12 V |
| Power source |
DC |
| Power consumption (typical) |
36 W |
| Input voltage |
100 - 240 V |
| Video |
|---|
| HD type |
8K Ultra HD |
| Maximum resolution |
7680 x 4320 pixels |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS, Trade Agreements Act (TAA) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
3.94" (100 mm) |
| Depth |
6.3" (160 mm) |
| Height |
1.57" (40 mm) |
| Weight |
21.2 oz (600 g) |
| Package width |
9.37" (238 mm) |
| Package depth |
7.24" (184 mm) |
| Package height |
3.5" (89 mm) |
| Package weight |
2.2 lbs (1 kg) |
| Packaging data |
|---|
| Package width |
9.37" (238 mm) |
| Package depth |
7.24" (184 mm) |
| Package height |
3.5" (89 mm) |
| Package weight |
2.2 lbs (1 kg) |
| Packaging content |
|---|
| Rubber feet |
Yes |
| Quick installation guide |
Yes |
| Other features |
|---|
| IP control |
No |
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
15.6" (397 mm) |
| Master (outer) case length |
10.1" (257 mm) |
| Master (outer) case height |
11.8" (300 mm) |
