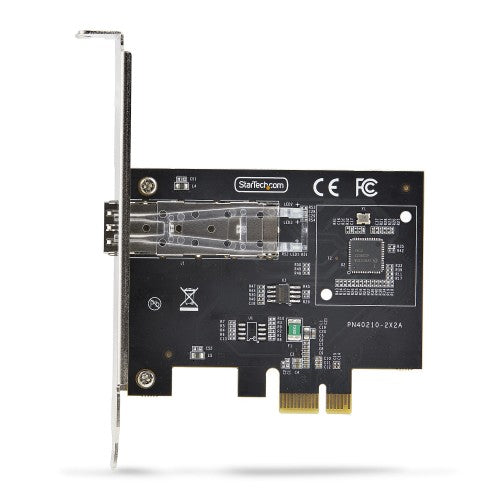

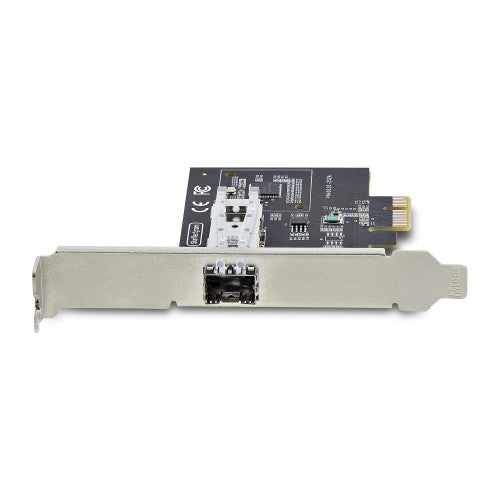

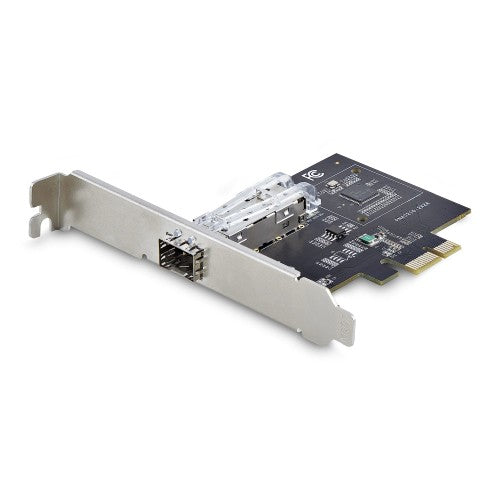

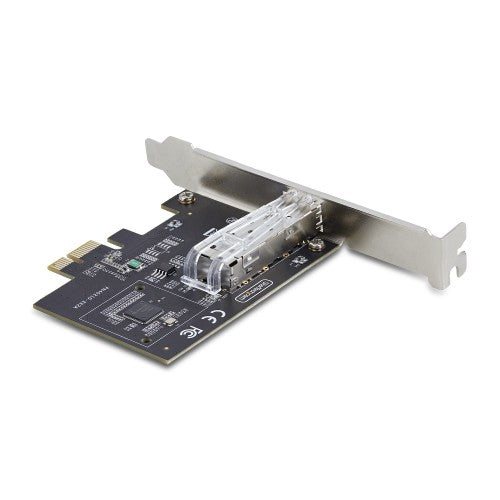

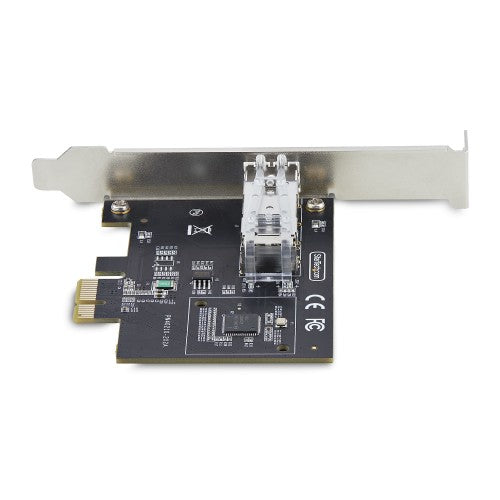

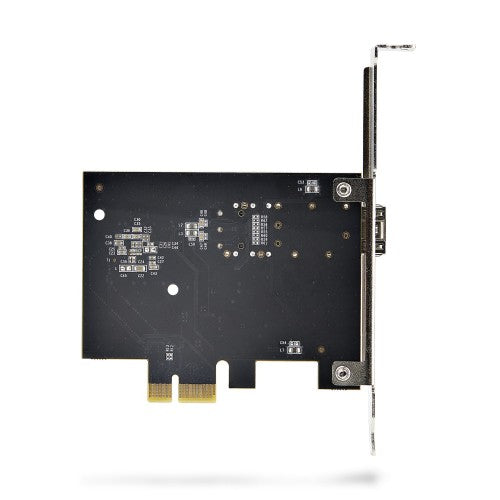

StarTech.com 1-Port GbE SFP Network Card, PCIe 2.1 x1, Intel I210-IS, 1GbE Controller, 1000BASE Copper/Fiber Optic, Single-Port Gigabit Ethernet NIC, Desktop/Server Backplanes (P011GI-NETWORK-CARD)
Key Features
- INTEL I210 SERIES NETWORK CARD: High-performance 1-port PCIe network card featuring Intel I210-IS chipset adds a gigabit open SFP slot to a desktop or server; Supports IPv4, IPv6, TCP/UDP offloading, link aggregation
- UNLOCKED 1GB SFP SLOT: Works with any Singlemode/Multimode MSA-compliant or branded SFP/direct attach copper cable (DACC) module; 1Gbps (full-duplex) bandwidth; Fiber enables longer cable runs than copper cabling while being immune to EMI
- COMPATIBILITY: Works with Windows Server 2012 & up, Windows 10 & up, Linux, VMware ESXi 7.x, and Microsoft Hyper-V; PCI Express Ethernet NIC is compatible with PCIe version 2.1 and works in PCI Express x1 or larger expansion slots

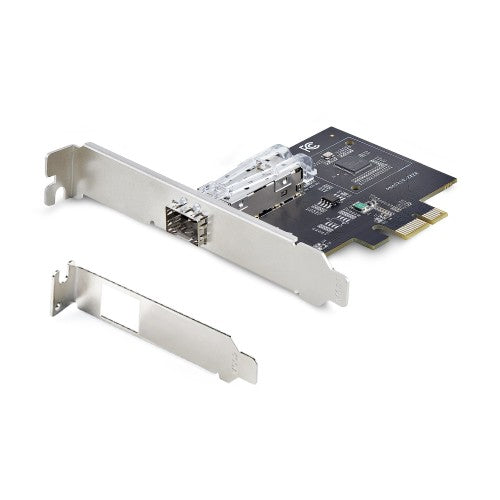

- THOUGHTFUL DESIGN: LED indicators for port status or network activity monitoring, and to assist with troubleshooting; Full-profile bracket installed by default with a Low-Profile bracket included
- IT MANAGEABILITY: PXE boot enabled for centralized OS deployment and updates; 9K jumbo frame support for reduced packet overhead; VLAN tagging support for efficient network management; Supports Intel Virtualization Technology (VT-c, VMDq, SR-IOV)
Description
Add a fiber/copper GbE SFP transceiver or Direct Attach Cable to a workstation or server
Add a 1GbE SFP module to a PCI Express (PCIe) 2.1 x1 (or higher) slot in an IT Administrator workstation or server backplane, using this 1-Port SFP Network Controller.
High Performance Intel Chipset
The network controller features an Intel I210 chip known for its reliability and high-performance capabilities, offering low-latency and low CPU utilization, ensuring smooth and efficient network data transfer, which is critical for business applications and services. Support for VMDq, SR-IOV, and Intel® VT-c technologies allow for enhanced virtual machine performance, reduced CPU overhead, and improved network virtualization capabilities. The PCIe network card supports PXE boot, enabling centralized operating system deployment and updates. It also features 9K jumbo frame support, reducing packet overhead for improved data transmission efficiency. VLAN tagging support allows for efficient network management and segmentation.
Hardware and Operating System Compatibility
The network interface controller connects to an available x1 PCI Express 2.1 (or higher) expansion slot. It is compatible with Windows Server 2012 and newer, Windows 10 and newer, Linux, VMware ESXi 7.x, and Microsoft Hyper-V. This NIC is compatible with both MSA-compliant and branded 1GB SFP modules, as well as direct attach copper cables (DACC). Includes a low-profile bracket designed for small form factor systems.
Flexible Network Connections
The card features an SFP slot for interchangeable SFP modules. Select fiber transceiver modules that best suit the network needs of the application, based on the distance and connector type. StarTech.com offers a wide variety of SFP transceiver modules to meet many GbE network applications.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| PCI version |
2.1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SFP |
| Interface |
Fiber |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Bandwidth |
|---|
| Full duplex |
Yes |
| Maximum data transfer rate |
1000 Mbit/s |
| Technical details |
|---|
| Product colour |
Black |
| Auto MDIX IEEE |
Yes |
| Network |
|---|
| Jumbo frames |
9000 |
| Networking standards |
IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3z |
| Auto MDIX IEEE |
Yes |
| Supported network protocols |
IPv4, IPv6, TCP/UDP |
| Jumbo frames support |
Yes |
| Full duplex |
Yes |
| Maximum data transfer rate |
1000 Mbit/s |
| Design |
|---|
| Product colour |
Black |
| Internal |
Yes |
| LED indicators |
Speed, Status |
| Component for |
PC |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Linux operating systems supported |
Yes |
| Power |
|---|
| Power consumption (typical) |
0.6 W |
| Indication |
|---|
| LED indicators |
Speed, Status |
| System requirements |
|---|
| Server operating systems supported |
Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Linux operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
2.64" (67 mm) |
| Depth |
3.43" (87 mm) |
| Height |
0.63" (16 mm) |
| Weight |
1.41 oz (40 g) |
| Package width |
6.69" (170 mm) |
| Package depth |
5.59" (142 mm) |
| Package height |
1.18" (30 mm) |
| Package weight |
1.68 oz (47.5 g) |
| Protocols |
|---|
| Supported network protocols |
IPv4, IPv6, TCP/UDP |
| Packaging data |
|---|
| Package width |
6.69" (170 mm) |
| Package depth |
5.59" (142 mm) |
| Package height |
1.18" (30 mm) |
| Package weight |
1.68 oz (47.5 g) |
| Mounting brackets included |
Yes |
| Quick installation guide |
Yes |
| Packaging content |
|---|
| Mounting brackets included |
Yes |
| Quick installation guide |
Yes |
| Performance |
|---|
| Server operating systems supported |
Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Auto MDIX IEEE |
Yes |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Linux operating systems supported |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
23.8" (605 mm) |
| Master (outer) case length |
12.8" (325 mm) |
| Master (outer) case height |
15.2" (385 mm) |
| Products per master (outer) case |
80 pc(s) |
| Other features |
|---|
| Jumbo frames |
9000 |
