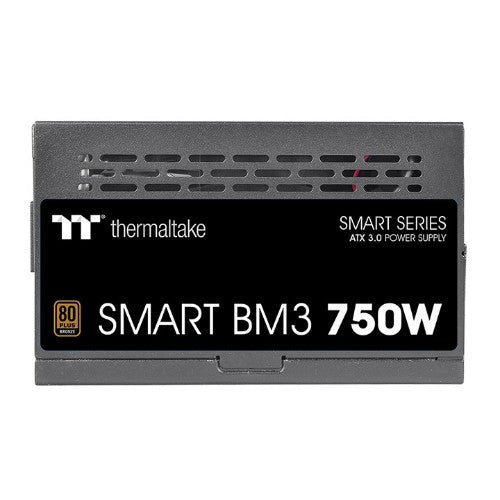

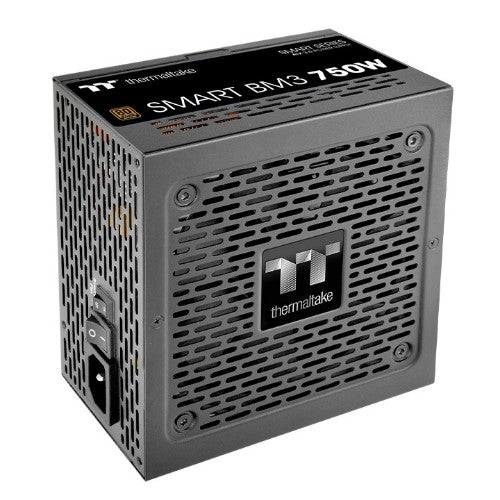

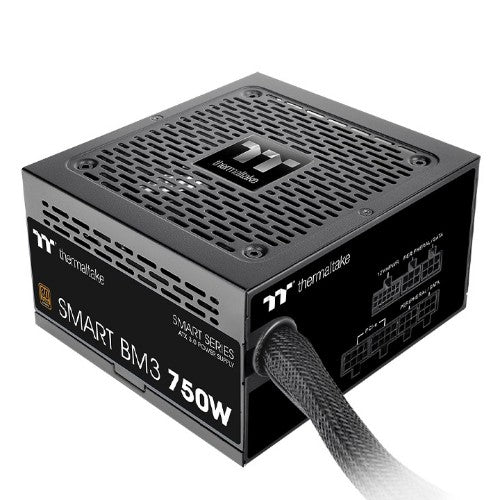

Smart BM3 Bronze 750W - TT Premium Edition, 80 PLUS Bronze, Intel ATX 3.0
Description

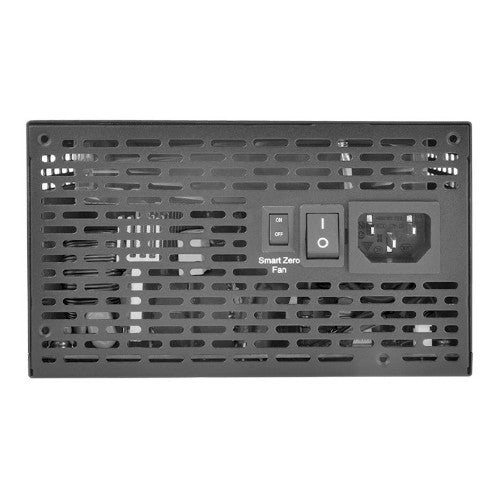

Smart BM3 80 PLUS Bronze certified semi modular PSU (650W/750W/850W) is designed to meet ATX 3.0 standards, it also comes with one PCIe Gen 5.0 (12VHPWR) connector to support modern graphics cards. With an ample 5-year warranty, the Smart BM3 series is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features. Featuring a 120mm FDB fan to deliver excellent airflow. Furthermore, with the Smart Zero Fan function the fan will not spin until the load exceeds 20% of the power supply, minimizing undesired noise. It also built with high quality Japanese main electrolytic capacitor greatly improves the power supplies durability.
Specifications
| Cooling |
|---|
| Fan diameter |
4.72" (12 cm) |
| Number of fans |
1 fan(s) |
| Fan location |
Top |
| Cooling type |
Active |
| Performance |
|---|
| On/off switch |
Yes |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Bronze |
| Purpose |
PC |
| ATX version |
3.0 |
| Mean time between failures (MTBF) |
100000 h |
| Certification |
CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
| Design |
|---|
| 80 PLUS certification |
80 PLUS Bronze |
| Certification |
CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
| Product colour |
Black |
| Fan diameter |
4.72" (12 cm) |
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Illumination |
No |
| Fan location |
Top |
| Cooling type |
Active |
| Power |
|---|
| Total power |
750 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
15 A |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
110 W |
| Combined power (+12V) |
750 W |
| Combined power (+5V) |
110 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
18 A |
| Max output current (+12V) |
62.5 A |
| Max output current (+5V) |
18 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
3 A |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time |
17 ms |
| Number of +12V rail(s) |
1 |
| Ports & interfaces |
|---|
| Motherboard power cable length |
23.6" (60 cm) |
| SATA power cable length |
150,500 mm |
| Peripheral (Molex) power cable length |
150,500 mm |
| Motherboard power connector |
24-pin ATX |
| Number of SATA power connectors |
6 |
| Peripheral (Molex) power connectors (4-pin) |
7 |
| PCI Express power connectors (6+2 pin) |
4 |
| CPU power connector (4+4 pin) |
Yes |

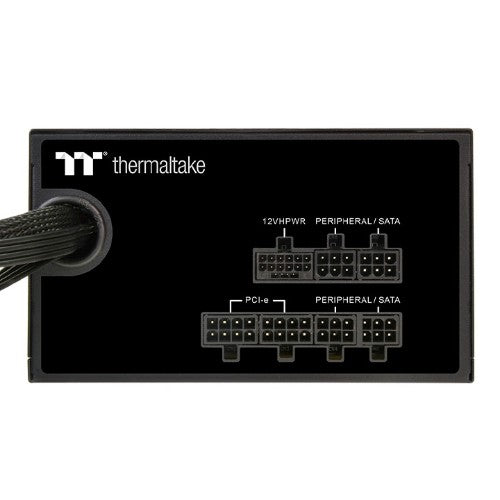

| Cabling type |
Semi-Modular |
| PCI Express power connectors (12+4 pin) |
1 |
| PCI Express power connectors (12+4 pin) cable length |
600 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 45 °C |
| Storage temperature (T-T) |
-40 - 55 °C |
| Operating relative humidity (H-H) |
20 - 85% |
| Storage relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Width |
5.91" (150 mm) |
| Depth |
5.51" (140 mm) |
| Height |
3.39" (86 mm) |
| Weight |
3.59 lbs (1.63 kg) |
| Certificates |
|---|
| 80 PLUS certification |
80 PLUS Bronze |
| Certification |
CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
