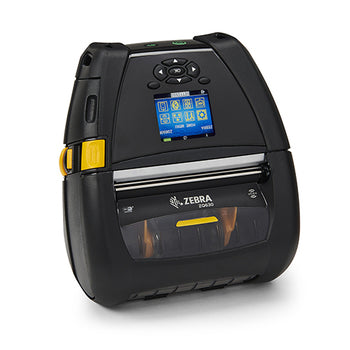

Zebra ZQ630 Plus label printer Direct thermal 203 x 203 DPI 115 mm/sec Wired & Wireless Wi-Fi Bluetooth
Save 0
Description
203 x 203 dpi, 115 mm/s, 256MB (RAM), 512MB (ROM), 802.11AX / BT5.X, EN fonts
Business Tough — Built for All-day Every Day Enterprise Use
While the ZQ600 Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one- piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance. And multiple mechanical design improvements further increase printer robustness and uptime.
The Latest Wireless Connections for Fast, Reliable, and Secure Printing
Zebra printers are known for leading the market in wireless technology and the ZQ600 Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth 4.1 Classic and Low Energy, your workers can count on blazing fast and secure connections.
Industry-Standard 802.11r Fast Roaming for Seamless Access
Workers rarely stand still. With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.
The Industry's Only Instant Wake-up Over Wi-Fi
Forget about frustrating printer reboot times that drain productivity. You can be sure that the ZQ600 Series is ready whenever workers press ‘print’. This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job — delivering instant availability and maximum power efficiency. And unlike other mobile printers, the ZQ600 Series’ instant wake-up works over both Wi-Fi and Bluetooth.
Large Color Display Makes Configuration and Operation a Snap
It’s easy to set up and maintain the ZQ600 Series with its large display, user-friendly interface and easily customized menu. The display changes color when the printer is paused or in an error state, such as out of media or latch open, so users instantly know what the printer needs to stay up and running. And since the ZQ600 Series is based on Zebra’s Link-OS menu system, you’ll get a common UI and user experience across other Zebra Link-OS mobile, desktop and industrial printers to lower the learning curve.
Business Tough — Built for All-day Every Day Enterprise Use
While the ZQ600 Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one- piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance. And multiple mechanical design improvements further increase printer robustness and uptime.
The Highest Capacity Battery in its Class
Your workers depend on their mobile printers nearly every minute of the day. With the ZQ600 Series’ high capacity 3250 mAH (ZQ610 / ZQ620) and 6800 mAH (ZQ630) battery, you can be sure that every worker has plenty of power for every shift.
Do More on a Single Charge with Zebra’s Power Smart Print Technology™
This patented Zebra technology maximizes efficiency by delivering the exact amount of power required for the highest quality printing. Printers with PSPT save an estimated 20 to 30 percent of their battery power, so users can do more on a single charge.
Extraordinary Battery Management Capabilities with PowerPrecision+ Technology
The ZQ600 Series’ PowerPrecision+ battery delivers the ultimate in battery power and management. A wealth of easily accessible battery metrics makes it easy to identify aging batteries before they impact productivity. You can be sure that every worker starts every shift with a healthy and fully-charged battery. And better visibility into battery health means you can reduce the size of the spare battery pool.
Zebra Print DNA – Transforming Printers from the Inside
The printer hardware is just the start of what you need to maximize the value of your printers. The ZQ600 Series is powered by Link-OS, Zebra’s robust printer operating system, and Print DNA, a combination of productivity, management, development and visibility tools. The result is a superior printing experience through better performance, simplified remote manageability and easier integration.
Robust Memory to Support Applications Today and Tomorrow
The ZQ600 Series offers 256 MB RAM and 512 MB Flash — providing more than enough memory for all your fonts and graphics needs today, as well as all the firmware upgrades and new Print DNA tools for years to come.
Backward Compatible with QLn Accessories
With more than one million units sold, Zebra’s QLn Series set the bar for retail mobile printing. Now, the ZQ600 Series raises the bar again. And since the ZQ600 Series is backward compatible with QLn accessories, you can upgrade to the latest platform and ingenuity without buying new accessories or rebuilding the settlement room.
Resolve Problems Faster with the Ethernet Cradle
Remote management is easy with the ZQ600 Series’ Ethernet Cradle. By docking the printer in the cradle at the end of every shift, IT can remotely upgrade the firmware as needed to ensure that each printer is operating at peak performance. Should employees experience a problem, they can simply dock the printer into the cradle for a remote diagnosis — eliminating the downtime and costs associated with shipping a printer to the repair depot when nothing is physically wrong.
Easily Manage All Your Printers — All from a Single Location
With our comprehensive and flexible remote management tools, you can maintain, secure and troubleshoot printers simply and easily, from anywhere, at anytime. Use the free Printer Setup Utilities to simplify setup and out-of-the-box configuration tasks. And with the optional Printer Profile Manager Enterprise, you can manage one printer, a group of specific printers or all printers anywhere in the world. This browser-based solution lets you instantly discover every Link-OS printer on your network — there’s no need to manually track down, configure or troubleshoot printers.
Seamless Integration with Your Device Management System
Get the simplicity of a single-pane-of-glass to manage all your Zebra mobile devices and printers — including the ZQ600 Series. With Print DNA’s MDM Connectors, you can easily integrate networked ZQ600 Series printers into your existing AirWatch or SOTI MobiControl device management system. And if you are using Ivanti Avalanche (powered by Wavelink), the ZQ600 Series offers support for Avalanche right out of the box.
Ensure Continued Reliability with Printhead Diagnostics
With the ZQ600 Series, you don’t need to worry about downtime from a worn-out printhead. Our unique Printhead Diagnostics provide visibility into the health of printheads across your deployment, enabling you to take action before productivity is impacted.
Protect Sensitive Customer and Business Data with PrintSecure
This complimentary Print DNA utility makes it easy to configure over 30 settings to fine-tune printer security to protect your data and your infrastructure by creating secure printer connections and blocking unauthorized printer access.
Consistently Exceptional Zebra Certified Supplies
Printing supplies can impact everything from printhead lifespan to operational efficiency. That’s why we design, produce and rigorously pre-test our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer — and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.
Maximize Uptime, Business Operations and Printer Visibility with Services
You invest in Zebra printers to better serve your customers and boost operational efficiency. Now, you can ensure predictable performance and eliminate unbudgeted repair expenses with Zebra OneCare. You get unmatched technical support direct from Zebra, as well as comprehensive repair services, including accidental damage and defined repair turn-around times. And Zebra’s Visibility Services provide the real-time insight into printer operational information you need to increase printer availability and optimize utilization within your workflows.
Description
Want to improve inventory management and customer service in your store? With the ZQ600 Series mobile printer, you can. The ZQ600 Series takes Zebra’s popular QLn platform and makes it even better — adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600 Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600 Series easier to integrate, manage, setup and secure thanks to Zebra’s Link-OS® operating system and powerful Print DNA suite of applications, utilities and developer tools. The ZQ600 Series — the next evolution in the gold standard for mobile label and receipt printing.Business Tough — Built for All-day Every Day Enterprise Use
While the ZQ600 Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one- piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance. And multiple mechanical design improvements further increase printer robustness and uptime.
The Latest Wireless Connections for Fast, Reliable, and Secure Printing
Zebra printers are known for leading the market in wireless technology and the ZQ600 Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth 4.1 Classic and Low Energy, your workers can count on blazing fast and secure connections.
Industry-Standard 802.11r Fast Roaming for Seamless Access
Workers rarely stand still. With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.
The Industry's Only Instant Wake-up Over Wi-Fi
Forget about frustrating printer reboot times that drain productivity. You can be sure that the ZQ600 Series is ready whenever workers press ‘print’. This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job — delivering instant availability and maximum power efficiency. And unlike other mobile printers, the ZQ600 Series’ instant wake-up works over both Wi-Fi and Bluetooth.
Large Color Display Makes Configuration and Operation a Snap
It’s easy to set up and maintain the ZQ600 Series with its large display, user-friendly interface and easily customized menu. The display changes color when the printer is paused or in an error state, such as out of media or latch open, so users instantly know what the printer needs to stay up and running. And since the ZQ600 Series is based on Zebra’s Link-OS menu system, you’ll get a common UI and user experience across other Zebra Link-OS mobile, desktop and industrial printers to lower the learning curve.
Business Tough — Built for All-day Every Day Enterprise Use
While the ZQ600 Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one- piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance. And multiple mechanical design improvements further increase printer robustness and uptime.
The Highest Capacity Battery in its Class
Your workers depend on their mobile printers nearly every minute of the day. With the ZQ600 Series’ high capacity 3250 mAH (ZQ610 / ZQ620) and 6800 mAH (ZQ630) battery, you can be sure that every worker has plenty of power for every shift.
Do More on a Single Charge with Zebra’s Power Smart Print Technology™
This patented Zebra technology maximizes efficiency by delivering the exact amount of power required for the highest quality printing. Printers with PSPT save an estimated 20 to 30 percent of their battery power, so users can do more on a single charge.
Extraordinary Battery Management Capabilities with PowerPrecision+ Technology
The ZQ600 Series’ PowerPrecision+ battery delivers the ultimate in battery power and management. A wealth of easily accessible battery metrics makes it easy to identify aging batteries before they impact productivity. You can be sure that every worker starts every shift with a healthy and fully-charged battery. And better visibility into battery health means you can reduce the size of the spare battery pool.
Zebra Print DNA – Transforming Printers from the Inside
The printer hardware is just the start of what you need to maximize the value of your printers. The ZQ600 Series is powered by Link-OS, Zebra’s robust printer operating system, and Print DNA, a combination of productivity, management, development and visibility tools. The result is a superior printing experience through better performance, simplified remote manageability and easier integration.
Robust Memory to Support Applications Today and Tomorrow
The ZQ600 Series offers 256 MB RAM and 512 MB Flash — providing more than enough memory for all your fonts and graphics needs today, as well as all the firmware upgrades and new Print DNA tools for years to come.
Backward Compatible with QLn Accessories
With more than one million units sold, Zebra’s QLn Series set the bar for retail mobile printing. Now, the ZQ600 Series raises the bar again. And since the ZQ600 Series is backward compatible with QLn accessories, you can upgrade to the latest platform and ingenuity without buying new accessories or rebuilding the settlement room.
Resolve Problems Faster with the Ethernet Cradle
Remote management is easy with the ZQ600 Series’ Ethernet Cradle. By docking the printer in the cradle at the end of every shift, IT can remotely upgrade the firmware as needed to ensure that each printer is operating at peak performance. Should employees experience a problem, they can simply dock the printer into the cradle for a remote diagnosis — eliminating the downtime and costs associated with shipping a printer to the repair depot when nothing is physically wrong.
Easily Manage All Your Printers — All from a Single Location
With our comprehensive and flexible remote management tools, you can maintain, secure and troubleshoot printers simply and easily, from anywhere, at anytime. Use the free Printer Setup Utilities to simplify setup and out-of-the-box configuration tasks. And with the optional Printer Profile Manager Enterprise, you can manage one printer, a group of specific printers or all printers anywhere in the world. This browser-based solution lets you instantly discover every Link-OS printer on your network — there’s no need to manually track down, configure or troubleshoot printers.
Seamless Integration with Your Device Management System
Get the simplicity of a single-pane-of-glass to manage all your Zebra mobile devices and printers — including the ZQ600 Series. With Print DNA’s MDM Connectors, you can easily integrate networked ZQ600 Series printers into your existing AirWatch or SOTI MobiControl device management system. And if you are using Ivanti Avalanche (powered by Wavelink), the ZQ600 Series offers support for Avalanche right out of the box.
Ensure Continued Reliability with Printhead Diagnostics
With the ZQ600 Series, you don’t need to worry about downtime from a worn-out printhead. Our unique Printhead Diagnostics provide visibility into the health of printheads across your deployment, enabling you to take action before productivity is impacted.
Protect Sensitive Customer and Business Data with PrintSecure
This complimentary Print DNA utility makes it easy to configure over 30 settings to fine-tune printer security to protect your data and your infrastructure by creating secure printer connections and blocking unauthorized printer access.
Consistently Exceptional Zebra Certified Supplies
Printing supplies can impact everything from printhead lifespan to operational efficiency. That’s why we design, produce and rigorously pre-test our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer — and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.
Maximize Uptime, Business Operations and Printer Visibility with Services
You invest in Zebra printers to better serve your customers and boost operational efficiency. Now, you can ensure predictable performance and eliminate unbudgeted repair expenses with Zebra OneCare. You get unmatched technical support direct from Zebra, as well as comprehensive repair services, including accidental damage and defined repair turn-around times. And Zebra’s Visibility Services provide the real-time insight into printer operational information you need to increase printer availability and optimize utilization within your workflows.
Specifications
| Print quality | |
|---|---|
| Vertical printing | Yes |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 4.09" (10.4 cm) |
| Printing | |
| Minimum print length | 0.5" (1.27 cm) |
| Colour | No |
| Vertical printing | Yes |
| Print speed | 115 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 4.09" (10.4 cm) |
| Print technology | Direct thermal |
| Design | |
| Navigation key | Yes |
| International Protection (IP) code | IP43 |
| Colour display | Yes |
| Display resolution | 288 x 240 pixels |
| Display | LCD |
| Product colour | Black |
| Built-in display | Yes |
| Certification | FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5, CE, TUV, CSA, Made for iPod/iPhone/iPad |
| Display | |
| Colour display | Yes |
| Display resolution | 288 x 240 pixels |
| Display | LCD |
| Network | |
| Wi-Fi | Yes |
| Memory | |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Paper handling | |
| Media thickness | 2.3, 5.5, 6.5 mm |
| Maximum roll diameter | 2.6" (6.6 cm) |
| Maximum label width | 4.09" (10.4 cm) |
| Ports & interfaces | |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Connectivity technology | Wired & Wireless |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Performance | |
| Built-in barcodes | 2D, AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC39, UPC-A, UPC-E |
| Number of fonts | 26 |
| Security algorithms | 802.1x RADIUS, AES, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, TKIP, WEP, WPA, WPA2 |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Built-in processor | Yes |
| Certification | FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5, CE, TUV, CSA, Made for iPod/iPhone/iPad |
| Page description languages | CPCL-native, EPL, ZBI, ZPL |
| Power | |
| Number of batteries supported | 1 |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 6800 mAh |
| Technical details | |
| Product colour | Black |
| Built-in barcodes | 2D, AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC39, UPC-A, UPC-E |
| Number of fonts | 26 |
| Navigation key | Yes |
| Maximum label width | 4.09" (10.4 cm) |
| Processor | |
| Built-in processor | Yes |
| Security | |
| Security algorithms | 802.1x RADIUS, AES, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, TKIP, WEP, WPA, WPA2 |
| Certificates | |
| Certification | FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5, CE, TUV, CSA, Made for iPod/iPhone/iPad |
| Battery | |
| Number of batteries supported | 1 |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 6800 mAh |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 6.5" (165 mm) |
| Depth | 7.36" (187 mm) |
| Height | 3.25" (82.5 mm) |
| Weight | 2.43 lbs (1.1 kg) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Quantity per pack | 1 pc(s) |
| Navigation key | Yes |
