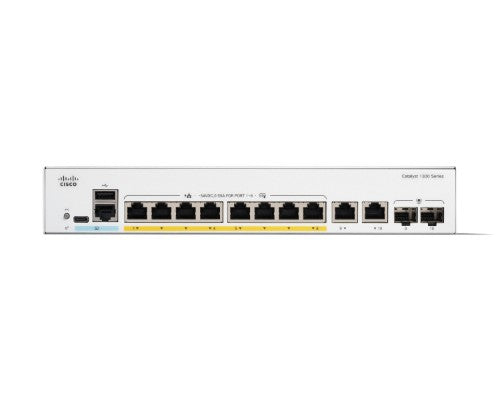

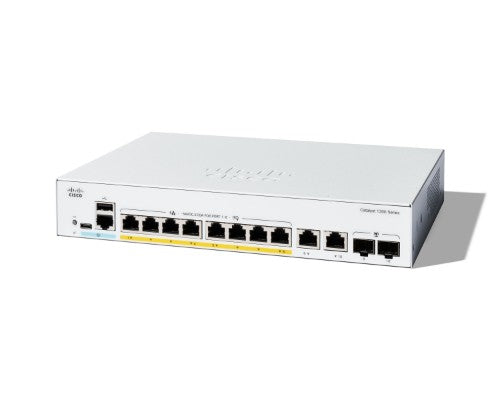

Cisco Catalyst 1300 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray

Catalyst 1300-8FP-2G Managed Switch, 8 Port GE, Full PoE, 2x1GE Combo, Limited Lifetime Protection (C1300-8FP-2G)

Key Features

• SWITCH PORTS: 8 ports 10/100/1000 + 2x 1GE copper/SFP combo (total PoE power budget: 120W, PoE, PoE+)
• SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
• ENHANCED SECURITY: IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
• ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
• PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

Description

The Cisco Catalyst 1300-8FP-2G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
MIB support	Yes
Switch layer	L2
Configuring Location Settings (CLI)	Yes
Network
IGMP snooping	Yes
IGMP entries	2000
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4093
Link aggregation	Yes
Broadcast storm control	Yes
Virtual LAN features
VLAN support	Yes
Number of VLANs	4093
Data transmission
Number of VLANs	4093
Jumbo frames	9000
Number of static routes	990
Packet buffer memory	1.5 MB
MAC address table	16000 entries
Switching capacity	20 Gbit/s
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	14.88 Mpps
Performance
Packet buffer memory	1.5 MB
Mean time between failures (MTBF)	1786412 h
Technical details
Product colour	Gray
Mean time between failures (MTBF)	1786412 h
Rack mounting	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Console port	RJ-45/USB Type-C
Security
Loop protection	Yes
Authentication	MAC-based authentication, Web-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
IGMP entries	2000
DHCP features	DHCP Option 82, DHCP client, DHCP server
Multicast features
Multicast support	Yes
Memory
Packet buffer memory	1.5 MB
Design
Country of origin	China
Product colour	Gray
LED indicators	Yes
Rack mounting	Yes
Indication
LED indicators	Yes
Power
Power consumption (max)	148.12 W
AC input voltage	110 - 220 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	120 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	505.41 BTU/h
Weight & dimensions
Width	11.7" (297.4 mm)
Depth	10.6" (268.2 mm)
Height	1.73" (43.9 mm)
Weight	5.71 lbs (2.59 kg)
Packaging data
Package width	15.1" (384.8 mm)
Package depth	17.6" (446.8 mm)
Package height	3.74" (95 mm)
Package weight	7.54 lbs (3.42 kg)
Other features
Country of origin	China
