Description
Key Features
- Low power, low cost
- Single-port 10/100/1000/2.5GBASE-T(X) Copper
- Ultra-compact footprint
- Ventilated bracket
- Environmentally friendly
- Lead free and low halogen
- PCIe 3.1 support (5GT/s)
- Distance up to 100 meters
Description

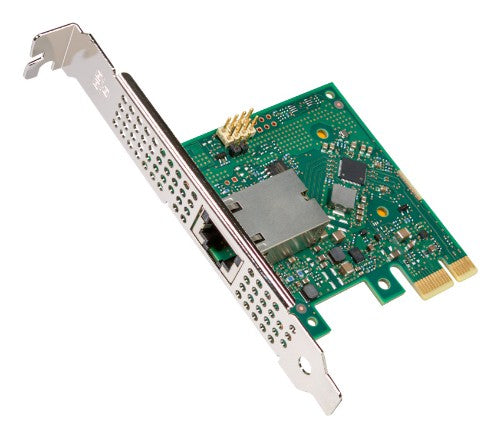

The Intel® Ethernet Network Adapter I226-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I226-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption.Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms.
Based on the Intel® Ethernet Controller I226-LM, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with autonegotiation between port speeds provides maximum flexibility.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 25000 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | No |
| Technical details | |
| Product colour | Green, Silver |
| PCI Card form factor | Full-height (low-profile) |
| Harmonized System (HS) code | 8517620090 |
| Export Control Classification Number (ECCN) | 5A991.B.4.A |
| Sustainability compliance | Yes |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), KCC, RoHS, VCCI |
| Network interface card cable medium | Copper |
| Market segment | Desktop |
| Launch date | Q3'23 |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3z |
| Maximum operating distance | 3937" (100 m) |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 25000 Mbit/s |
| Design | |
| Product colour | Green, Silver |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| LED indicators | Activity, Link |
| Component for | PC/server |
| Power | |
| Power consumption (typical) | 1.4 W |
| Indication | |
| LED indicators | Activity, Link |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 2.7" (68.7 mm) |
| Depth | 2.57" (65.3 mm) |
| Performance | |
| Ethernet adapter ARK ID | 225771 |
| Logistics data | |
| Harmonized System (HS) code | 8517620090 |
| Other features | |
| Ethernet adapter ARK ID | 225771 |
| Network interface card cable medium | Copper |
| Market segment | Desktop |
| Launch date | Q3'23 |
| Harmonized System (HS) code | 8517620090 |
| Export Control Classification Number (ECCN) | 5A991.B.4.A |
| Cabling type | CAT5e, CAT6, CAT6A |
