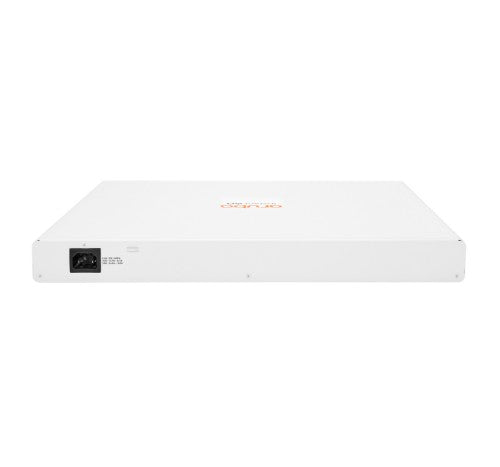

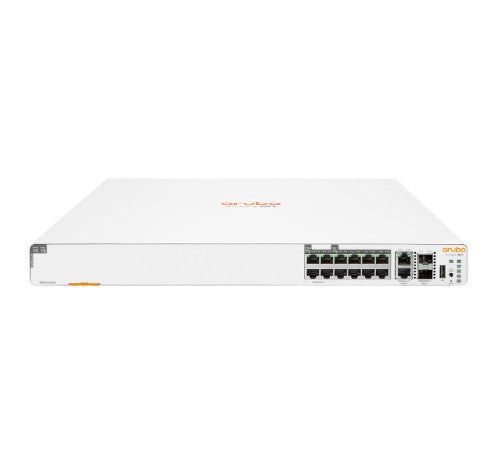

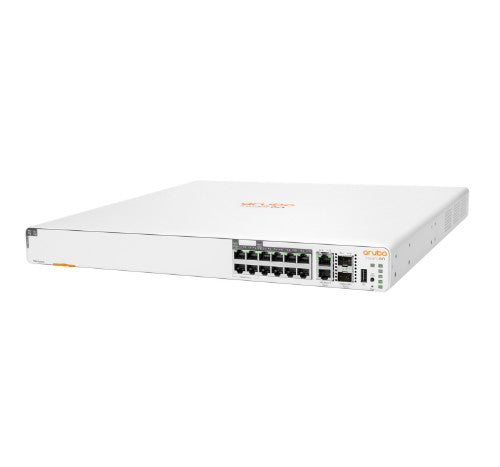

HPE Aruba Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U, Wall mountable
Description
HPE Aruba Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 116 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: 1U
Specifications
| Network |
|---|
| IGMP snooping |
Yes |
| Auto-sensing |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| Auto-negotiation |
Yes |
| Half duplex |
Yes |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Performance |
|---|
| Packet buffer memory |
1.5 MB |
| Stackable |
Yes |
| Auto-negotiation |
Yes |
| Physical stacking (units) |
4 |
| Processor frequency |
800 MHz |
| Memory type |
DDR3-SDRAM |
| Internal memory |
1024 MB |
| Flash memory |
512 MB |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A9 |
| Technical details |
|---|
| Physical stacking (units) |
4 |
| Form factor |
1U |
| Stackable |
Yes |
| Processor frequency |
800 MHz |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Management features |
|---|
| Switch type |
Managed |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| 2.5G Ethernet (copper) ports quantity |
4 |
| Data transmission |
|---|
| Throughput |
172 Mpps |
| Latency (10-100 Mbps) |
4.1 µs |
| Latency (1 Gbps) |
1.8 µs |
| Latency (10 Gbps) |
2.8 µs |
| Packet buffer memory |
1.5 MB |
| MAC address table |
16000 entries |
| Switching capacity |
116 Gbit/s |
| Jumbo frames support |
Yes |
| Security |
|---|
| Authentication |
Port-based authentication |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Authentication type |
RADIUS |
| DHCP features |
DHCP relay, DHCP snooping |
| Protocols |
|---|
| Management protocols |
SNMPv1, SNMPv2c, SNMPv3 |
| Supported network protocols |
HTTPS |
| Memory |
|---|
| Packet buffer memory |
1.5 MB |
| Memory type |
DDR3-SDRAM |
| Internal memory |
1024 MB |
| Flash memory |
512 MB |
| Design |
|---|
| Wall mountable |
Yes |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (max) |
790 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
480 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
15 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
15 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions |
|---|
| Width |
17.4" (443 mm) |
| Depth |
13.8" (350 mm) |
| Height |
1.73" (43.9 mm) |
| Weight |
11.6 lbs (5.24 kg) |
