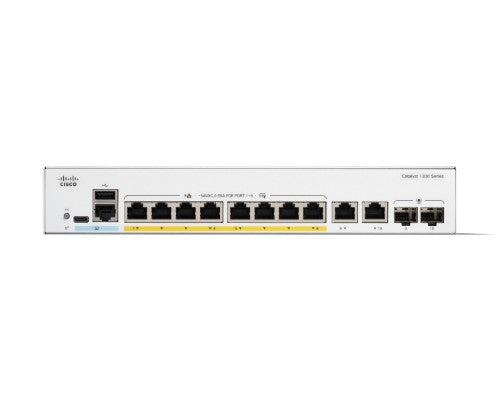

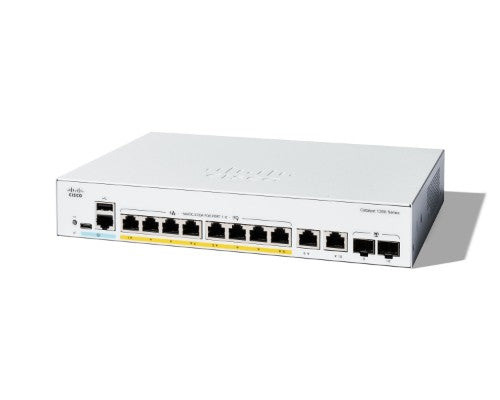

Cisco Catalyst 1300 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray
Description
Key Features
- SWITCH PORTS: 8 ports 10/100/1000 + 2x 1GE copper/SFP combo (total PoE power budget: 67W, PoE, PoE+)
- SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
- ENHANCED SECURITY: IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
- ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
- PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
Description
The Cisco Catalyst 1300-8P-E-2G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| IGMP snooping | Yes |
| IGMP entries | 2000 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4093 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4093 |
| Data transmission | |
| Number of VLANs | 4093 |
| Jumbo frames | 9000 |
| Number of static routes | 990 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 14.88 Mpps |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Mean time between failures (MTBF) | 1706649 h |
| Technical details | |
| Product colour | Gray |
| Mean time between failures (MTBF) | 1706649 h |
| Rack mounting | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45/USB Type-C |
| Security | |
| Loop protection | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| IGMP entries | 2000 |
| DHCP features | DHCP Option 82, DHCP client, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Design | |
| Country of origin | China |
| Product colour | Gray |
| LED indicators | Yes |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 80.86 W |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 275.91 BTU/h |
| Weight & dimensions | |
| Width | 7.28" (184.9 mm) |
| Depth | 10.6" (268.2 mm) |
| Height | 1.73" (43.9 mm) |
| Weight | 3.37 lbs (1.53 kg) |
| Packaging data | |
| Package width | 11.8" (299 mm) |
| Package depth | 21.4" (544.8 mm) |
| Package height | 4.09" (103.9 mm) |
| Package weight | 6.77 lbs (3.07 kg) |
| Other features | |
| Country of origin | China |
