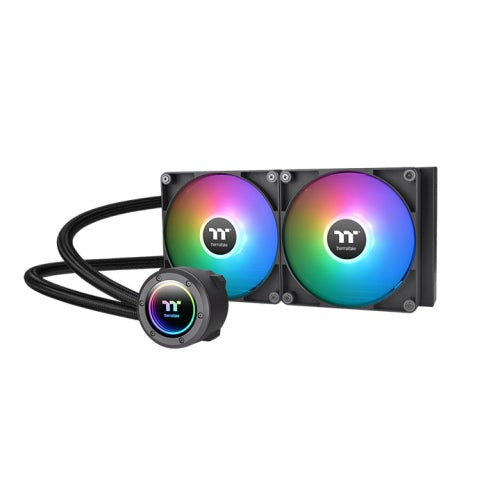

TH280 V2 ARGB Sync All-In-One Liquid Cooler
Description

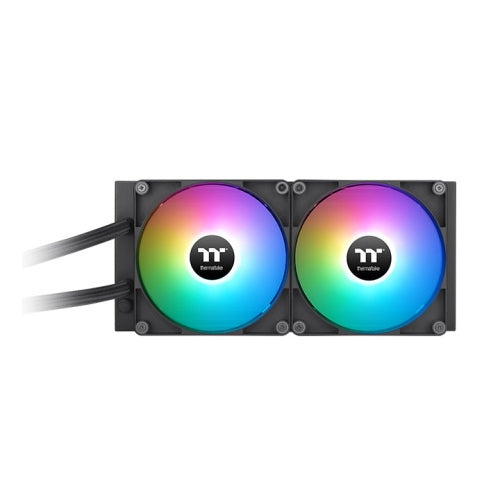

TH280 V2 ARGB has a new industrial cap with an infinity mirror light design, bringing a new vibe to the TH series. Equipped with two enhanced fan speed CT140 ARGB fans, the TH280 V2 ARGB is suitable for medium to large chassis’ that fits 280mm AIOs, and for those who seek to control lighting effects through 5V motherboard-controlled software.
No matter the build, We’ve got you coveredThe TH V2 ARGB Series is now ready for all types of builds; the series has three 120mm fan models, including the TH 120/ 240/ 360 V2 ARGB, and two 140mm fan models, including TH 280/ 420 V2 ARGB.

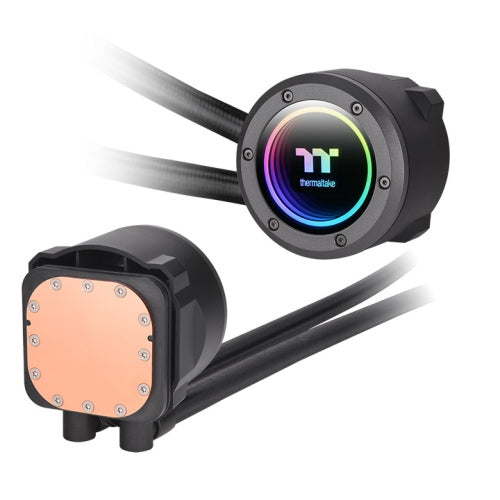

New Version, New DesignTH V2 ARGB was given an industrial look to freshen up the 360-degree rotational cap. Adding Infinity Mirror Lighting to this series can bring more diverse visual effects to the build and gives more depth than it looks.
Specifications
| Performance |
|---|
| Suitable location |
Processor |
| Rotational speed (min) |
500 RPM |
| Rotational speed (max) |
1800 RPM |
| Noise level (high speed) |
34.7 dB |
| Type |
All-in-one liquid cooler |
| Fan diameter |
5.51" (14 cm) |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5 |
| Maximum airflow |
84.32 cfm |
| Maximum air pressure |
3.02 mmH2O |
| Number of fans |
2 fan(s) |
| Fan noise level (max) |
34.7 dB |
| Pump motor speed (min) |
1500 RPM |
| Pump motor speed (max) |
3300 RPM |
| Design |
|---|
| Number of fans |
2 fan(s) |
| Material |
Aluminum, Rubber |
| Illumination colour |
Amber, Blue, Green, Red |
| Product colour |
Black |
| Illumination LED |
Yes |
| Radiator material |
Aluminum |
| Technical details |
|---|
| Noise level (high speed) |
34.7 dB |
| Type |
All-in-one liquid cooler |
| Fan diameter |
5.51" (14 cm) |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5 |
| Maximum airflow |
84.32 cfm |
| Maximum air pressure |
3.02 mmH2O |
| Number of fans |
2 fan(s) |
| Material |
Aluminum, Rubber |
| Illumination LED |
Yes |
| Power |
|---|
| Rated voltage |
5 V |
| Starting voltage |
12 V |
| Rated current |
0.32 A |
| Maximum current |
0.43 A |
| Fan power consumption |
3.84 W |
| Pump power consumption |
5.16 W |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Fan dimensions (W x D x H) |
5.51 x 5.51 x 0.984" (140 x 140 x 25 mm) |
| Radiator width |
12.5" (31.7 cm) |
| Radiator depth |
5.47" (13.9 cm) |
| Radiator height |
1.06" (2.7 cm) |
| Tube length |
18.1" (46 cm) |
| Indication |
|---|
| Illumination colour |
Amber, Blue, Green, Red |
