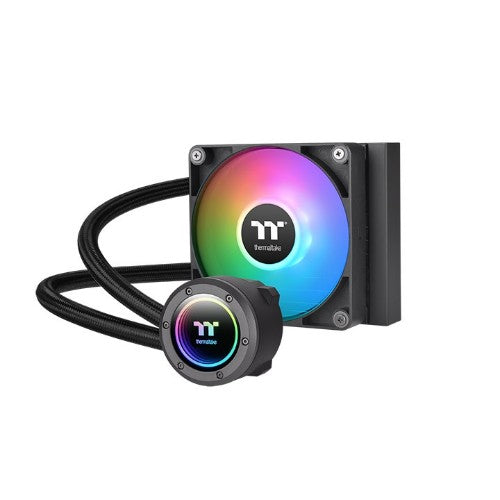

Thermaltake TH120 Processor All-in-one liquid cooler 4.72" (12 cm) Black 1 pc(s)

1500 - 3300 RPM, 157 x 120 x 27 mm, Aluminum

Description

TH120 V2 ARGB has a new industrial cap with an infinity mirror light design, bringing a new vibe to the TH series. Equipped with one CT120 ARGB fan, the TH120 V2 ARGB is suitable for small chassis that can fit 120mm AIOs, and for those who seek to control lighting effects through 5V motherboard-controlled software.

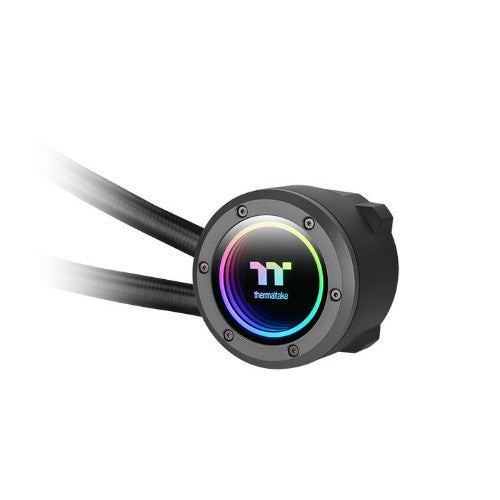

New Version, New Design
TH V2 ARGB was given an industrial look to freshen up the 360-degree rotational cap. Adding Infinity Mirror Lighting to this series can bring more diverse visual effects to the build and gives more depth than it looks.

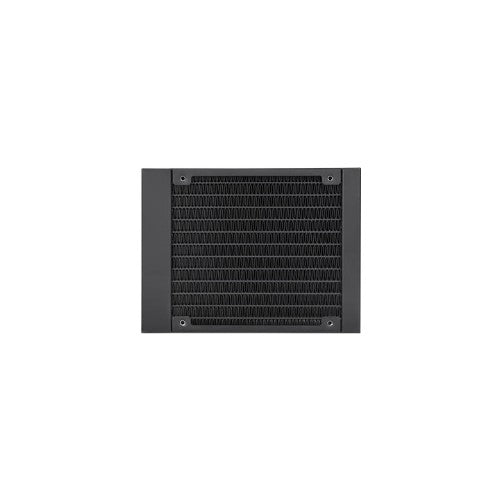

Enhanced Cooling Surface With A Compact Design
The TH V2 ARGB Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

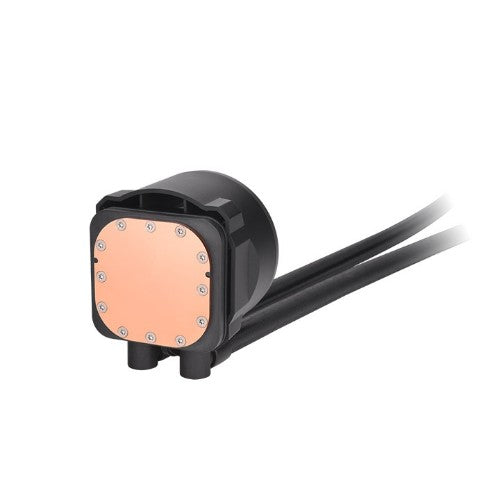

Keep it COLD with Copper
The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.

Any CPU Can Be the Right CPU
The package includes brackets for the latest Intel and AMD CPU sockets to be compatible with the most modern CPU platforms, including the latest Intel LGA1700 and AMD AM5 CPUs.

Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Specifications

Performance
Suitable location	Processor
Fan connector	3-pin
Bearing type	Hydraulic
Type	All-in-one liquid cooler
Fan diameter	4.72" (12 cm)
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2
Maximum airflow	57.05 cfm
Maximum air pressure	2.23 mmH2O
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Fan noise level (max)	28.2 dB
Pump motor speed (max)	3300 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2000 RPM
Fan's mean time to failure (MTTF)	40000 h
Design
Fan connector	3-pin
Number of fans	1 fan(s)
Illumination colour	Blue, Green, Red
Product colour	Black
Illumination LED	Yes
Tube material	Rubber
Radiator material	Aluminum
Water block material	Copper
Technical details
Type	All-in-one liquid cooler
Fan diameter	4.72" (12 cm)
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2
Maximum airflow	57.05 cfm
Maximum air pressure	2.23 mmH2O
Number of fans	1 fan(s)
Fan connector	3-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	3-pin
Power
Rated voltage	12 V
Starting voltage	5 V
Pump voltage	12/5 V
Fan current	0.32 A
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	4.72 x 4.72 x 0.984" (120 x 120 x 25 mm)
Radiator width	6.18" (15.7 cm)
Radiator depth	4.72" (12 cm)
Radiator height	1.06" (2.7 cm)
Tube length	18.1" (46 cm)
Indication
Illumination colour	Blue, Green, Red
Other features
Tube material	Rubber
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
