500-1800 RPM, 34.7 dB, 84.32 CFM, 12 V, 4 Pin
Description

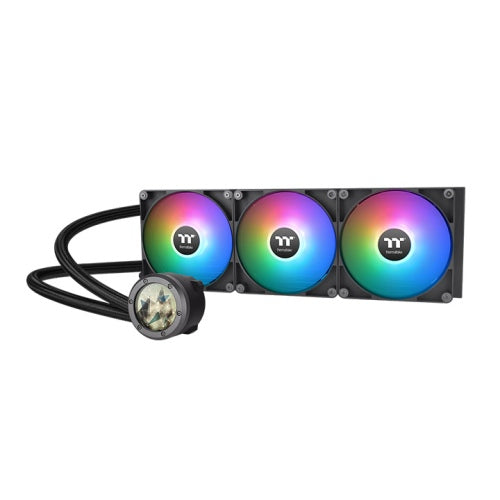

TH420 V2 Ultra ARGB has a new industrial cap with a 480 x 480 resolution LCD Display, bringing Ultra to the TH series. Equipped with three enhanced fan speed CT140 ARGB fans, the TH420 V2 Ultra ARGB is suitable for medium to large chassis’ that fits 420mm AIOs and for those who want to try the latest Ultra.
No matter the build, We’ve got you coveredThe TH V2 Ultra ARGB Series covers various types of builds; the series has two 120mm fan models, including the TH 240/ 360 V2 Ultra ARGB, and two 140mm fan models, including TH 280/ 420 V2 Ultra ARGB.

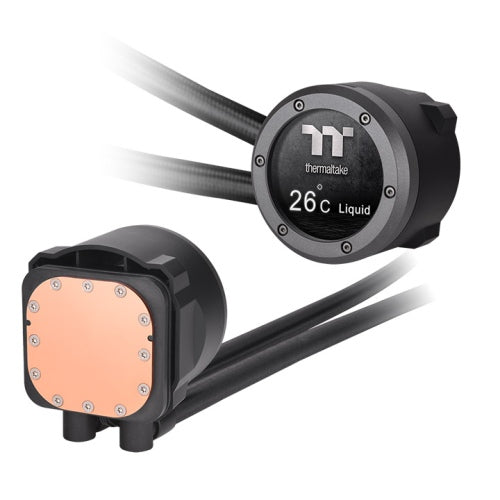

New Design, Same QualityTH V2 Ultra ARGB was given an industrial look to freshen up the 2.1” LCD Display. With its 480*480 high resolution, you can easily show off 16.8M color videos or photos.
Specifications
| Performance |
|---|
| Suitable location |
Processor |
| Fan connector |
4-pin |
| Rotational speed (min) |
500 RPM |
| Rotational speed (max) |
1800 RPM |
| Noise level (low speed) |
34.7 dB |
| Type |
All-in-one liquid cooler |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2 |
| Maximum airflow |
84.32 cfm |
| Maximum air pressure |
3.02 mmH2O |
| Number of fans |
3 fan(s) |
| Number of fan blades |
9 |
| Pump motor speed |
3200 RPM |
| Design |
|---|
| Fan connector |
4-pin |
| Number of fans |
3 fan(s) |
| Product colour |
Black |
| Number of fan blades |
9 |
| Radiator material |
Aluminum |
| Water block material |
Copper |
| Display type |
LCD |
| LED connector type |
4-pin |
| Technical details |
|---|
| Noise level (low speed) |
34.7 dB |
| Type |
All-in-one liquid cooler |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2 |
| Maximum airflow |
84.32 cfm |
| Maximum air pressure |
3.02 mmH2O |
| Number of fans |
3 fan(s) |
| Fan connector |
4-pin |
| Ports & interfaces |
|---|
| Fan connector |
4-pin |
| Power |
|---|
| Rated voltage |
5 V |
| Starting voltage |
12 V |
| Rated current |
0.32 A |
| Maximum current |
0.43 A |
| Pump power consumption |
5.16 W |
| Pump voltage |
12 V |
| Fan voltage |
12 V |
| Fan current |
0.32 A |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Fan dimensions (W x D x H) |
5.51 x 5.51 x 0.984" (140 x 140 x 25 mm) |
| Radiator width |
18" (45.6 cm) |
| Radiator depth |
5.47" (13.9 cm) |
| Radiator height |
1.06" (2.7 cm) |
| Tube length |
18.1" (46 cm) |
