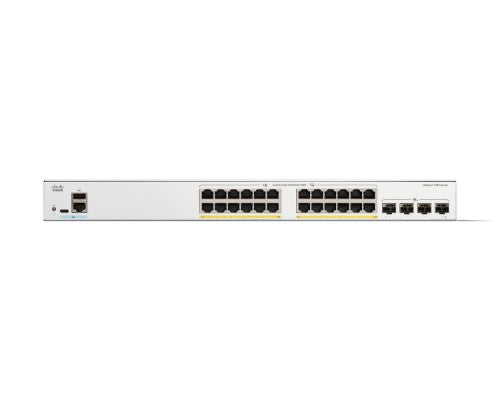

Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray
Save 32%
Description

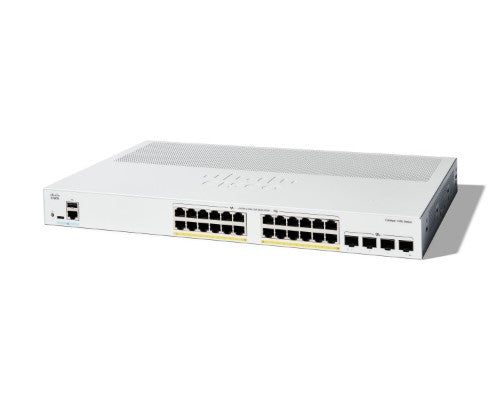

Catalyst 1300-24P-4X Managed Switch, 24 Port GE, PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24P-4X)
Key Features
- SWITCH PORTS: 24 ports 10/100/1000 + 4x 10GE SFP+ (total PoE power budget: 195W, PoE, PoE+)
- SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
- ENHANCED SECURITY: IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
- ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
- PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
Description
The Cisco Catalyst 1300-24T-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2/L3 |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IGMP proxy | Yes |
| Cable types supported | Cat5e |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| QinQ implementation | Selective QinQ |
| Policy-based routing | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Plug and Play | Yes |
| Processor frequency | 1.4 MHz |
| Memory type | DDR4-SDRAM |
| Mean time between failures (MTBF) | 698220 h |
| Internal memory | 1000 MB |
| Flash memory | 512 MB |
| Built-in processor | Yes |
| Technical details | |
| Product colour | Gray |
| Processor frequency | 1.4 MHz |
| Mean time between failures (MTBF) | 698220 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/USB Type-C |
| Data transmission | |
| Jumbo frames | 9000 |
| Number of static routes | 990 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| Access Control List (ACL) rules | 1024 |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| DoS attack prevention | Yes |
| Authentication type | RADIUS, TACACS+ |
| IGMP proxy | Yes |
| DHCP features | DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet |
| Certificates | |
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 1000 MB |
| Flash memory | 512 MB |
| Design | |
| Reset button | Yes |
| Country of origin | China |
| Product colour | Gray |
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Rack mounting | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| AC input voltage | 100 - 220 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 31.8 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 804.1 BTU/h |
| Weight & dimensions | |
| Width | 11.8" (298.7 mm) |
| Depth | 17.5" (444.5 mm) |
| Height | 1.73" (43.9 mm) |
| Weight | 8.11 lbs (3.68 kg) |
| Packaging data | |
| Package width | 16.9" (430 mm) |
| Package depth | 22.6" (575.1 mm) |
| Package height | 4.17" (105.9 mm) |
| Package weight | 13.2 lbs (5.99 kg) |
| Other features | |
| Country of origin | China |
