Description
Key Features
- SWITCH PORTS: 16 ports 10/100/1000 + 2x 1GE SFP (total PoE power budget: 120W, PoE, PoE+)
- SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
- ENHANCED SECURITY: IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
- ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
- PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
Description

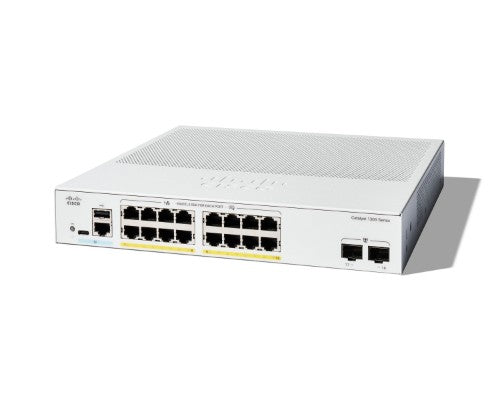

The Cisco Catalyst 1300-16P-2G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2/L3 |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Broadcast storm control | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Technical details | |
| Product colour | White |
| Processor frequency | 1400 MHz |
| Housing material | Metal |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Data transmission | |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SSH, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Design | |
| Reset button | Yes |
| Country of origin | China |
| Product colour | White |
| LED indicators | Yes |
| Housing material | Metal |
| Performance | |
| Processor frequency | 1400 MHz |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power supply included | Yes |
| Power source | AC |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 11.7" (296.9 mm) |
| Depth | 10.6" (268.2 mm) |
| Height | 1.73" (43.9 mm) |
| Packaging data | |
| Package width | 16.3" (414 mm) |
| Package depth | 15.7" (399 mm) |
| Package height | 4.25" (108 mm) |
| Package weight | 8.99 lbs (4.08 kg) |
| Other features | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Country of origin | China |
