4K, 8 MP, 30 fps, RJ-45, PoE
Key Features
- 4K (8MP) video resolution
- 3x optical zoom
- 25 m (82 ft) IR night vision
- AI event detections
- Built-in IR LEDs and an automatic IR cut filter
- Record audio with an integrated microphone
- Connect and power using PoE
- Optional Enhancer for integrated floodlight and extended IR
- Weatherproof (outdoor exposed)
Description

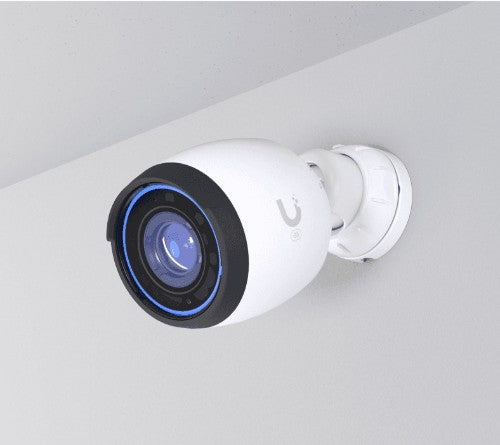

Indoor/outdoor 4K PoE Camera with exceptional image performance and 3x optical zoom lens.
Specifications
| Performance |
|---|
| Infrared (IR) cut-off filter |
Yes |
| Type |
IP security camera |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Certification |
FCC, IC, CE |
| Built-in processor |
Yes |
| Design |
|---|
| Weatherproof |
Yes |
| IK code |
IK04 |
| Form factor |
Bullet |
| Product colour |
White |
| Mounting type |
Ceiling/Wall/Pole |
| International Protection (IP) code |
IP65 |
| Housing material |
Aluminum, Polycarbonate (PC) |
| Camera |
|---|
| Lens viewing angle, horizontal |
35, 109.9° |
| Lens viewing angle, vertical |
19.8, 60° |
| Lens viewing angle, diagonal |
40, 127.7° |
| Image sensor |
|---|
| Optical sensor size |
1/2" |
| Lens system |
|---|
| Maximum aperture number |
3.3 |
| Minimum aperture number |
1.53 |
| Zoom capability |
Yes |
| Optical zoom |
3x |
| Focal length range |
4.1 - 12.3 mm |
| Night vision |
|---|
| Night vision |
Yes |
| Night vision distance |
25 m |
| LED type |
IR |
| Video |
|---|
| Noise reduction |
Yes |
| Image quality adjustment |
Brightness, Contrast, Sharpness |
| Noise reduction technology |
2D noise reduction, 3D noise reduction |
| Video compression formats |
H.264 |
| Maximum resolution |
3840 x 2160 pixels |
| Frame rate |
30 fps |
| Total megapixels |
8 MP |
| Audio |
|---|
| Built-in microphone |
Yes |
| Network |
|---|
| Bluetooth |
No |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Storage |
|---|
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Processor |
|---|
| Built-in processor |
Yes |
| Hard drive |
|---|
| Built-in HDD |
No |
| Technical details |
|---|
| Video compression formats |
H.264 |
| Type |
IP security camera |
| Form factor |
Bullet |
| Placement supported |
Indoor & outdoor |
| Product colour |
White |
| Mounting type |
Ceiling/Wall/Pole |
| Reset button |
Yes |
| Material |
|---|
| Housing material |
Aluminum, Polycarbonate (PC) |
| Management features |
|---|
| Reset button |
Yes |
| Power |
|---|
| Power source type |
PoE |
| Power consumption (max) |
10 W |
| DC output voltage |
37, 48, 54, 57 |
| Certificates |
|---|
| International Protection (IP) code |
IP65 |
| Certification |
FCC, IC, CE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Length |
6.07" (154.3 mm) |
| Diameter |
3.39" (8.6 cm) |
| Weight |
22.9 oz (650 g) |
| Packaging content |
|---|
| Number of cameras |
1 |
| Mounting kit |
Yes |
| Manual |
Yes |
| Other features |
|---|
| Video compression formats |
H.264 |
