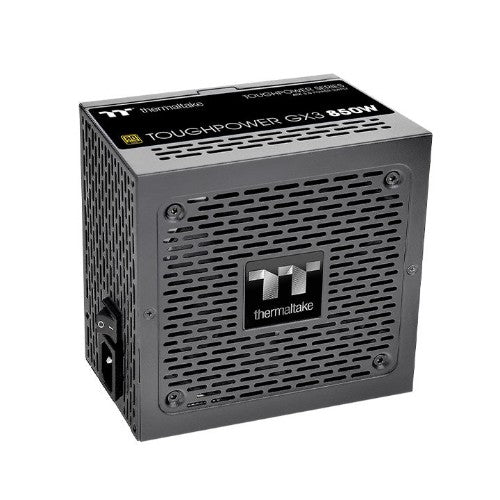

850 W, APFC, 24 Pin, 2x ATX 4+4 Pin, 5x PCI-E, 6x SATA, 3x Peripheral, 120 mm FDB, 15-8A, 50/60Hz, 100-240V, 150 x 86 x 140 mm, Black
Description
Toughpower GX3 series is 80 PLUS Gold certified non-modular PSU. The GX3 series is compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.
Power Up the Next Generation HardwareBuilt to deliver 80 PLUS Gold efficiency, Toughpower GX3 non-modular PSU is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GX3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.
Fully Compatible with Intel ATX 3.0 StandardsToughpower GX3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
PCIe Gen 5.0 ReadyToughpower GX3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GX3 850W can deliver up to 450W for PCIe 5.0 graphics cards.
Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

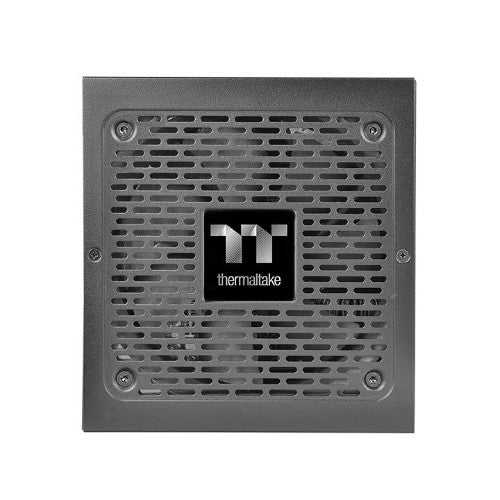

Ultra Quiet 120mm Fluid Dynamic Bearing FanFeaturing a 120mm Fluid Dynamic Bearing Fan to keep friction at really low levels even after prolonged usage while guaranteeing superior cooling performance and silent operation.
High Quality 105°C Electrolytic CapacitorHigh quality electrolytic capacitor greatly improves the power supplies durability and ensures the Toughpower GX3 series is stability and reliability.
High Amperage Single +12V Rail & High-Class TechnologiesPowerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Built-in Industrial Grade ProtectionTo protect the hardware, GX3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

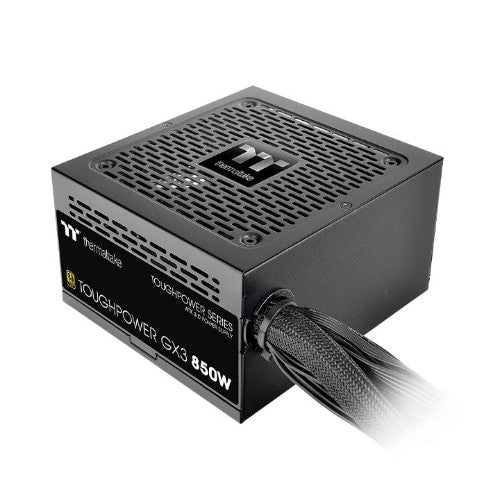

Non Modular Low-Profile Flat CableSoft black cables come with sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage.
80 PLUS Gold Certified and C6/C7 States ReadyToughpower GX3 Gold series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Specifications
| Cooling |
|---|
| Fan diameter |
4.72" (12 cm) |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Performance |
|---|
| On/off switch |
Yes |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Gold |
| Purpose |
PC |
| Safety |
FCC/ICES/CB/cTUVus/S-mark |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
FDB |
| Design |
|---|
| 80 PLUS certification |
80 PLUS Gold |
| Safety |
FCC/ICES/CB/cTUVus/S-mark |
| Product colour |
Black |
| Fan diameter |
4.72" (12 cm) |
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Power |
|---|
| Total power |
850 W |
| Power Good signal delay range |
100 - 150 ms |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
15 - 8 A |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
100 W |
| Combined power (+12V) |
850 W |
| Combined power (+5V) |
100 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
20 A |
| Max output current (+12V) |
70.8 A |
| Max output current (+5V) |
20 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
3 A |
| Power protection features |
Over current, Over power, Over voltage, Short circuit, Under voltage |
| Hold time |
17 ms |
| Efficiency |
90% |
| Ports & interfaces |
|---|
| Motherboard power cable length |
19.7" (50 cm) |
| SATA power cable length |
400,550,700 mm |
| Peripheral (Molex) power cable length |
550,700,400 mm |
| CPU power cable length |
23.6" (60 cm) |
| Motherboard power connector |
24-pin ATX |
| Number of SATA power connectors |
6 |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| PCI Express power connectors (6+2 pin) |
4 |
| CPU power connector (4+4 pin) |
Yes |
| Cabling type |
Non-Modular |
| PCI Express power connectors (12+4 pin) |
1 |
| PCI Express power connectors (12+4 pin) cable length |
600 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-40 - 55 °C |
| Operating relative humidity (H-H) |
20 - 85% |
| Storage relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Width |
5.91" (150 mm) |
| Depth |
5.51" (140 mm) |
| Height |
3.39" (86 mm) |
| Packaging data |
|---|
| Package type |
Box |
| Certificates |
|---|
| 80 PLUS certification |
80 PLUS Gold |
| Safety |
FCC/ICES/CB/cTUVus/S-mark |
