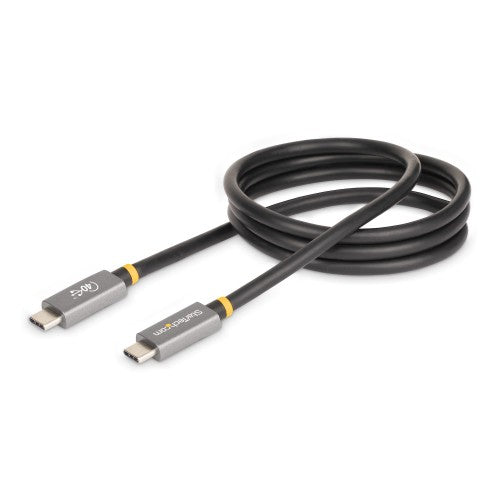

StarTech.com 3.3ft (1m) USB4 Cable 40Gbps, 100W (5A) PD, 8K 120Hz/4K 240Hz DP Alt Mode, USB-IF Certified, Thunderbolt Compat.
Key Features
- HIGH PERFORMANCE: 3.3ft/1m USB4 cable supports 40 Gbps, 4K/8K video, and 100W power; USB Type-C connectors offer universal compatibility with USB-C and Thunderbolt 4/3 laptops, docking stations, UHD monitors, and portable USB-C devices
- USB-IF CERTIFIED: USB4 cable is USB-IF certified with E-Marker chip, for reliable and consistent Power Delivery output to USB-C hosts and devices; Supports DisplayPort 1.4 with DSC; Compliant with PCIe 3.0 for external PCIe chassis/storage

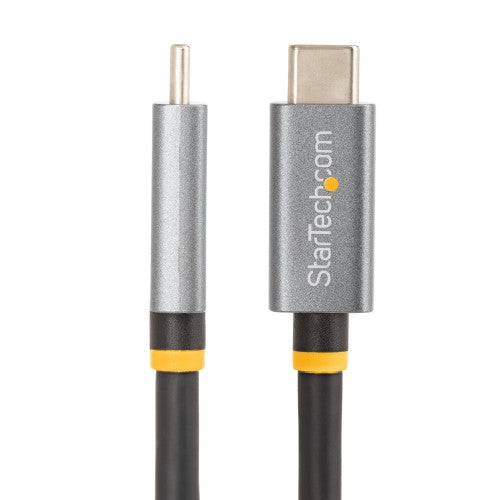

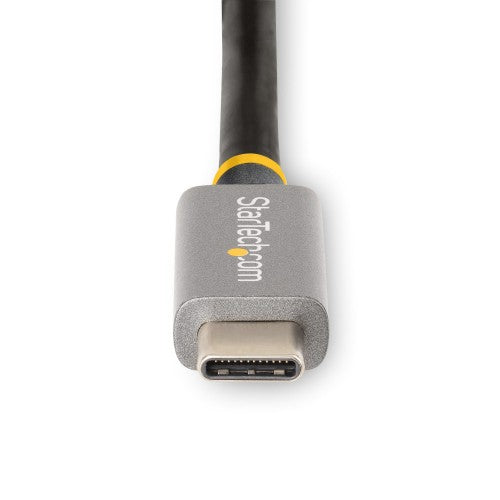

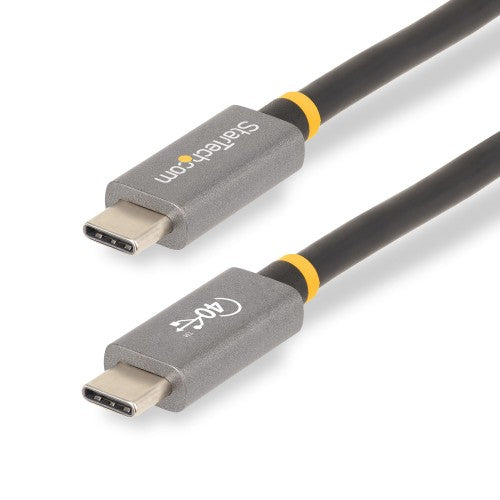

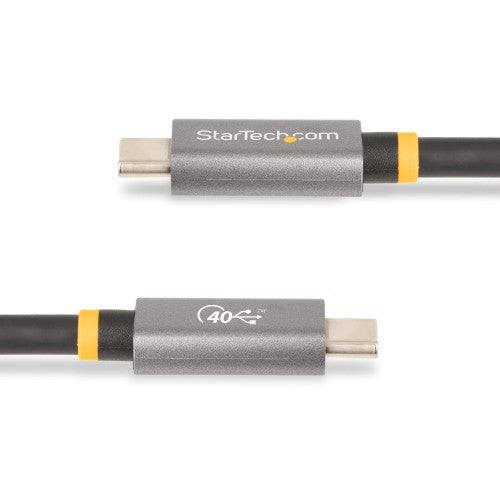

- QUALITY CONSTRUCTION: Nickel-plated connectors with robust strain reliefs for durability; Coaxial wire with Mylar shield for enhanced EMI protection; TPE cable jacket is environmentally friendly, non-toxic, halogen-free, and RoHS compliant
- APPLICATIONS: This versatile USB-C cable enables connectivity and charging across compatible USB, Thunderbolt 4/3, and DP Alt Mode devices; Ideal for high speed data transfer or docking stations; Dock and charge a USB-C laptop over a single connection

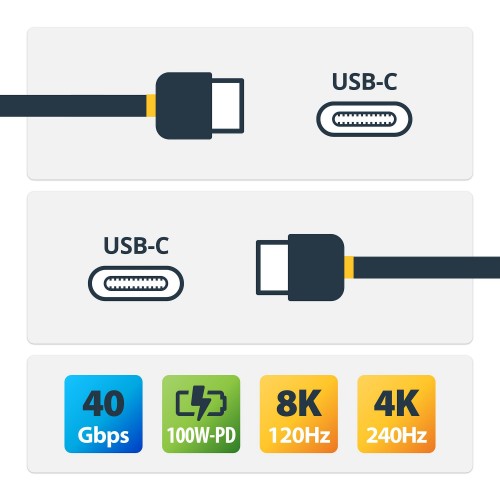

- SPECS: 3.3ft (1m); USB4 (40 Gbps); Backward Compatible with USB 3.2/3.0/2.0; DisplayPort 1.4 DP Alt Mode w/DSC/HDR/HBR3; Up to 8K 60Hz, 4K 120Hz; PCIe 3.0 (32 Gbps); 100W PD; 30/34 AWG; Cable Outer Diam.: 0.19in (4.95mm)
Description
Connect to USB4-enabled devices, using this USB-IF certified USB-C cable
This 3ft (1m) USB4 Cable connects to USB Type-C® (USB 3.2), Thunderbolt™ 4/3, and PCIe-enabled devices, delivering up to 40Gbps, 4K/8K video, and 100W charging.
Establish Fast and Stable Power/Data Connections
This USB4 Type-C cable is USB-IF certified for guaranteed USB-C compatibility. It reliably delivers consistent transfer rates and up to 100W PD output. It is ideal for 40Gbps data transfer to external USB-C-enabled external storage devices or as a single-cable connection from a USB-C dock to a laptop.
This cable has undergone rigorous USB-IF compliance testing to meet USB4 specifications. This includes electrical and mechanical standards which ensures a reliable, high-quality cable for USB-C devices.

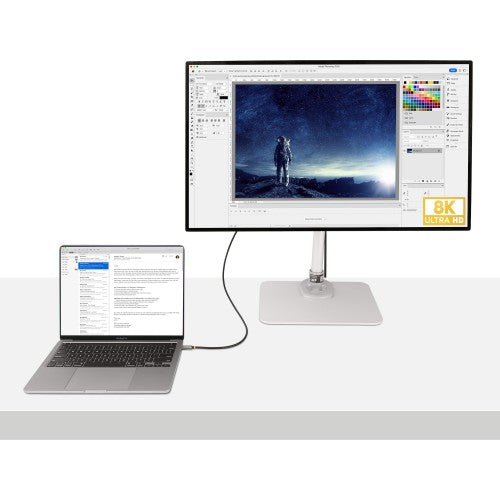

Experience 8K Video with DisplayPort 1.4 Alt Mode
The USB4 cable supports up to 8K 60Hz video over DisplayPort 1.4 Alt Mode with DSC, HDR, and HBR3, and is compatible with dual 4K 60Hz and lower resolutions.

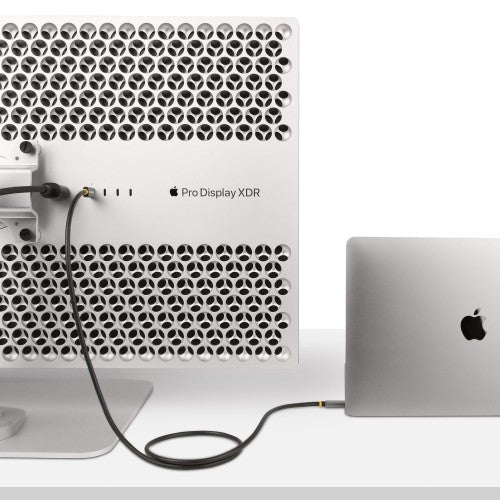

Power a USB-C Laptop
Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB4 cable from a laptop to a USB-C wall charger or docking station.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| AWG wire size |
34 |
| USB version |
USB4 Gen 2x2 |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Cable length |
39.4" (1 m) |
| Connector contacts plating |
Nickel |
| Maximum data transfer rate |
40000 Mbit/s |
| Cable type |
Round cable |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| USB Power Delivery (USB PD) |
Yes |
| Cable jacket material |
Thermoplastic elastomer (TPE) |
| USB Power Delivery up to |
100 W |
| Maximum resolution |
7680 x 4320 pixels |
| Maximum refresh rate |
120 Hz |
| High Dynamic Range (HDR) supported |
Yes |
| Display Stream Compression (DSC) |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Maximum data transfer rate |
40 Gbit/s |
| Cable diameter |
0.197" (5 mm) |
| Weight |
1.87 oz (53 g) |
| Quantity per pack |
1 pc(s) |
| Weight & dimensions |
|---|
| Cable diameter |
0.197" (5 mm) |
| Cable length |
39.4" (1 m) |
| Weight |
1.87 oz (53 g) |
| Package width |
4.92" (125 mm) |
| Package depth |
8.86" (225 mm) |
| Package height |
0.591" (15 mm) |
| Package weight |
1.06 oz (30 g) |
| Packaging data |
|---|
| Package width |
4.92" (125 mm) |
| Package depth |
8.86" (225 mm) |
| Package height |
0.591" (15 mm) |
| Package weight |
1.06 oz (30 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Doesn't contain |
Halogen |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Ports & interfaces |
|---|
| USB version |
USB4 Gen 2x2 |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Connector contacts plating |
Nickel |
| Data transmission |
|---|
| Maximum data transfer rate |
40000 Mbit/s |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Doesn't contain |
Halogen |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
150 pc(s) |
| Master (outer) case width |
19.7" (500 mm) |
| Master (outer) case length |
12.6" (320 mm) |
| Master (outer) case height |
8.27" (210 mm) |
| Other features |
|---|
| Cable type |
Round cable |
| Doesn't contain |
Halogen |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Compliance certificates |
RoHS |
