750W, 47-63Hz, 600W, 2.5A, 0.3A, 120 mm, 80 PLUS Gold, ATX 3.0
Key Features
- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module desig
Description
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

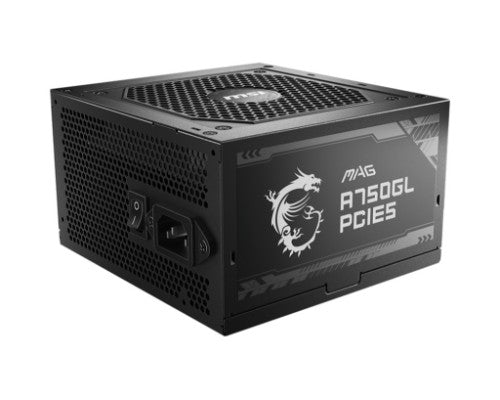

ATX 3.0 COMPATIBLEIt has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
80 PLUS GOLD CERTIFIEDThe efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZINGSmaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

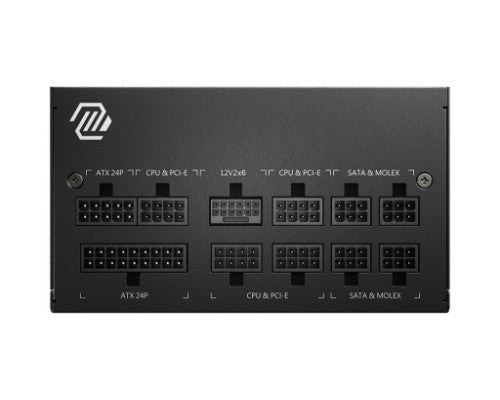

ONLY WHAT YOU NEEDThe connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZEDOrganizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

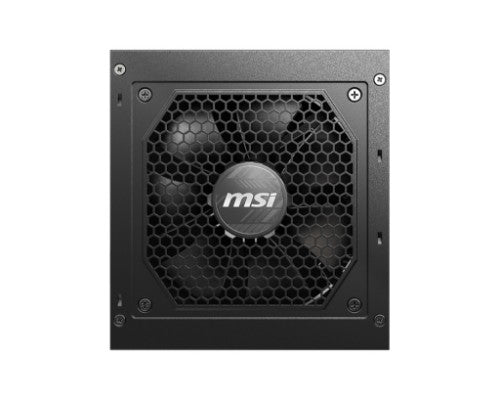

FLUID DYNAMIC BEARINGThe power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC TO DC & FULL BRIDGEDC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVEThe single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMSTo make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Specifications
| Cooling |
|---|
| Fan diameter |
4.72" (12 cm) |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Performance |
|---|
| On/off switch |
Yes |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Gold |
| Purpose |
PC |
| Harmonized System (HS) code |
84733020 |
| Design |
|---|
| 80 PLUS certification |
80 PLUS Gold |
| Product colour |
Black |
| Fan diameter |
4.72" (12 cm) |
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Illumination |
No |
| Cooling type |
Active |
| Power |
|---|
| Total power |
750 W |
| Maximum input current (@220V) |
4 A |
| AC input voltage |
100 - 240 V |
| AC input frequency |
47 - 63 Hz |
| Power Factor Correction (PFC) type |
Active |
| Maximum input current (@110V) |
8 A |
| Combined power (+3.3V) |
110 W |
| Combined power (+12V) |
744 W |
| Combined power (+5V) |
110 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
12.5 W |
| Max output current (+3.3V) |
20 A |
| Max output current (+12V) |
62 A |
| Max output current (+5V) |
20 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
2.5 A |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit |
| Efficiency |
90% |
| Ports & interfaces |
|---|
| Motherboard power cable length |
17.7" (45 cm) |
| Motherboard power connector |
20+4 pin ATX |
| Number of SATA power connectors |
8 |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| EPS power connector (8-pin) |
No |
| PCI Express power connectors (6-pin) |
0 |
| PCI Express power connectors (6+2 pin) |
3 |
| PCI Express power connectors (8-pin) |
0 |
| CPU power connector (4+4 pin) |
Yes |
| ATX Power connector (24-pin) |
No |
| ATX power connector (20+4 pin) |
No |
| Cabling type |
Fully-Modular |
| EPS power connector (4+4 pin) |
Yes |
| PCI Express power connectors (12+4 pin) |
0 |
| PCI Express power connectors (12-pin) |
0 |
| Weight & dimensions |
|---|
| Width |
5.91" (150 mm) |
| Depth |
5.51" (140 mm) |
| Height |
3.39" (86 mm) |
| Packaging data |
|---|
| Package type |
Box |
| Certificates |
|---|
| 80 PLUS certification |
80 PLUS Gold |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Harmonized System (HS) code |
84733020 |
