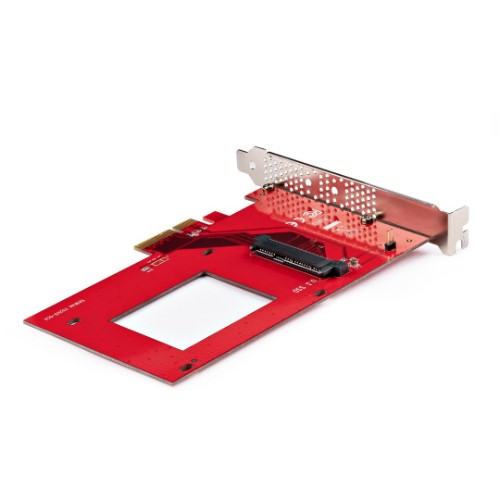

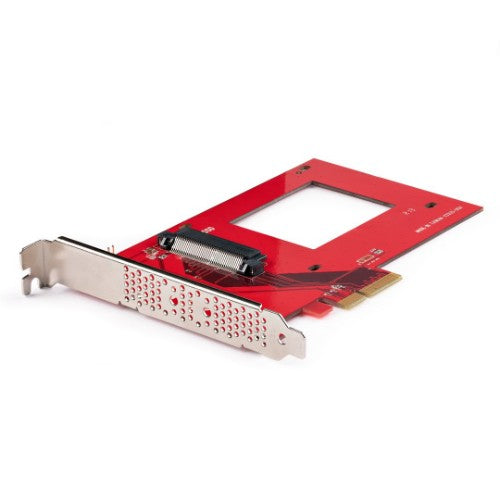

StarTech.com PEX4SFF8639U3 interface cards/adapter Internal U.3

StarTech.com U.3 to PCIe Adapter Card - PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs - SFF-TA-1001 PCI Express Add-in Card - TAA Compliant (PEX4SFF8639U3)

Key Features

• ADD HIGH PERFORMANCE U.3 STORAGE: Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server, enabling ultra-fast data access; Supports SFF-TA-1001 drives up to 15mm in height; Not compatible with U.2 drives
• UNIVERSAL COMPATIBILITY: Backwards compatible with PCI Express 3.0 motherboards that have an available x4, x8, or x16 PCIe slot; U.3 Adapter works with all workstation and server operating systems such as Windows, Windows Server, and Linux
• PREVENT OVERHEATING: Vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while reducing potential thermal throttling

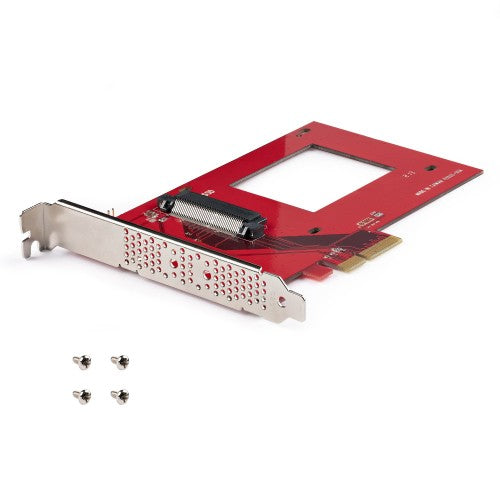

• HASSLE-FREE SETUP: Pre-installed full-profile bracket & included drive mounting screws enable the connection of a U.3 drive to a PCIe slot, without the need of a drive backplane or additional cables; The U.3 to PCIe Card requires no drivers or software
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this U.3 to PCI Express Adapter Card is backed for two years, including free lifetime 24/5 multi-lingual technical assistance

Description

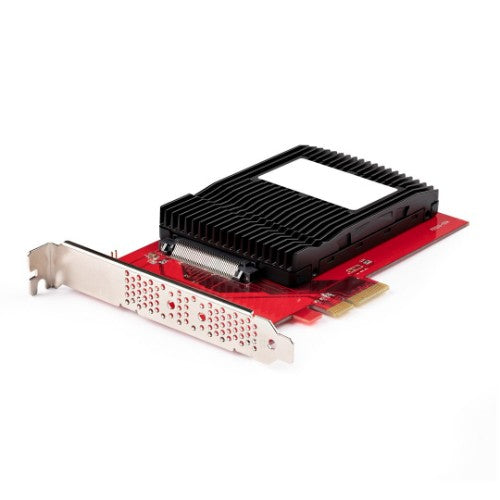

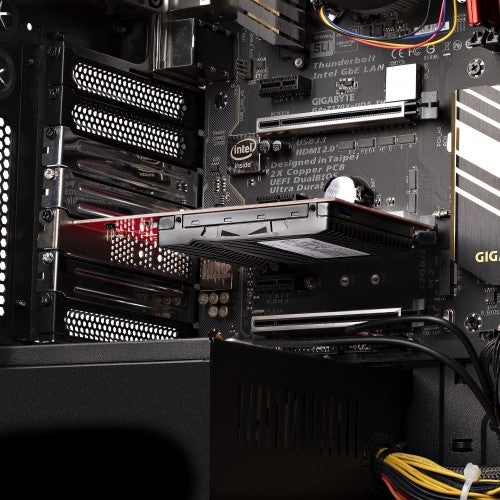

Mount a 2.5" U.3 NVMe SSD into a desktop computer or server, utilizing a PCIe x4 expansion slot

Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server using the included screws, enabling ultra-fast data access.

Add U.3 Capabilities to a Desktop or Server

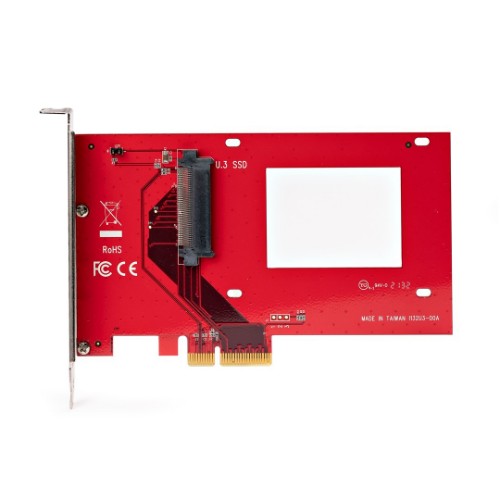

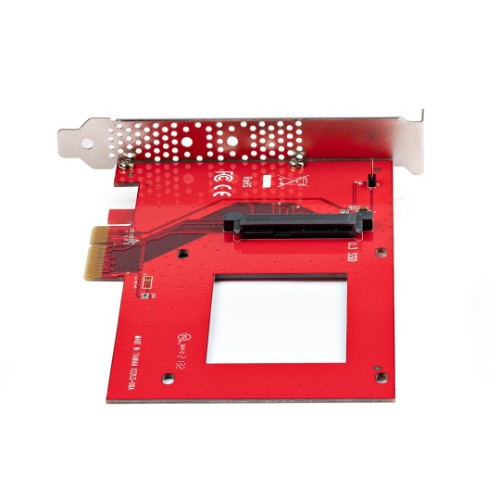

Install an SFF-TA-1001 SSD into a desktop or server using an available PCI Express 4.0 slot. The pre-installed full-profile bracket and included drive mounting screws enable the connection of a U.3 NVMe drive to a PCIe slot, avoiding the need for a drive backplane or additional cables. This adapter is not compatible with U.2 drives.

Universal Compatibility

The Adapter Card is backward compatible with motherboards that feature x4, x8, and/or x16 PCIe 3.0 slots. The U.3 Adapter requires no additional drivers or software and works with all workstation and server operating systems, such as Windows, Windows Server, and Linux.

Optimal Airflow and Reliable Performance

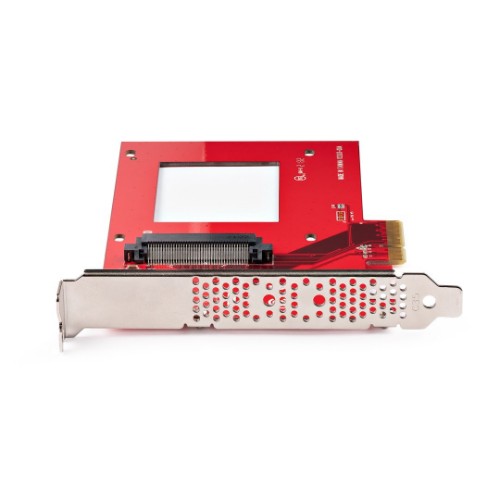

The vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while avoiding thermal throttling.

The StarTech.com Advantage

Specifications

Ports & interfaces
Internal	Yes
Output interface	U.3
Host interface	PCIe
Technical details
Plug and Play	Yes
Performance
Hot-swap	No
Plug and Play	Yes
Product colour	Red
Supported storage drive heights	5,7,9.5,12.5,15 mm
Design
Supported storage drive heights	5,7,9.5,12.5,15 mm
Mean time between failures (MTBF)	21693912 h
Hot-swap	No
Internal	Yes
Product colour	Red
LED indicators	Activity, Power
Colour
Product colour	Red
Features
Plug and Play	Yes
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	20 - 80%
System requirements
Supported storage drive heights	5,7,9.5,12.5,15 mm
Weight & dimensions
Width	3.54" (90 mm)
Depth	6.06" (154 mm)
Height	0.0591" (1.5 mm)
Weight	2.19 oz (62 g)
Package width	8.46" (215 mm)
Package depth	6.1" (155 mm)
Package height	1.18" (30 mm)
Package weight	4.59 oz (130 g)
Packaging data
Package width	8.46" (215 mm)
Package depth	6.1" (155 mm)
Package height	1.18" (30 mm)
Package weight	4.59 oz (130 g)
Quick installation guide	Yes
Screws included	Yes
Logistics data
Products per master (outer) case	60 pc(s)
Master (outer) case width	18.1" (460 mm)
Master (outer) case length	13.4" (340 mm)
Master (outer) case height	19.3" (490 mm)
Packaging content
Quick installation guide	Yes
Screws included	Yes
