24 x 10GBASE-X SFP+, 4 x 25GBASE-X SFP28, 240W, L3, 440 x 400 x 43.2 mm, 6.25Kg

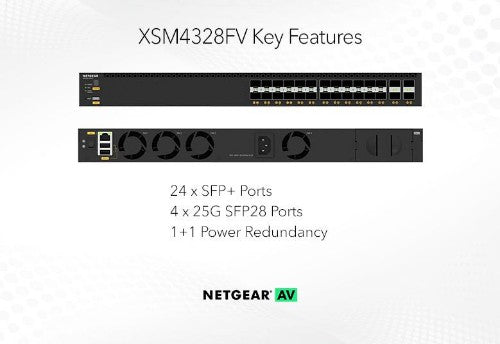

Key Features
- 24 10GBASE-X SFP+ ports with 4 25GBASE-X SFP28 uplinks
- 240W internal power supply
- 1 slot for modular power supply (1+1 redundancy)
- Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
Description
POWER AND THROUGHPUTEdge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUIA simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an InstantNETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet DesignLess fan noise, and mounting ears included for rack mounting.
Automatic ConfigurationAuto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROSA streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISEMost models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOXWith built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Specifications
| Management features |
|---|
| Multicast support |
Yes |
| ARP inspection |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L3 |
| Network |
|---|
| IGMP snooping |
Yes |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| IGMP proxy |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Rate limiting |
Yes |
| Number of VLANs |
4093 |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
Yes |
| Policy-based routing |
Yes |
| 6to4 tunnel |
Yes |
| Virtual LAN features |
MAC address-based VLAN, Private VLAN, Voice VLAN |
| IPv6 routes |
256 |
| IPv4 routes |
512 |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
4093 |
| Virtual LAN features |
MAC address-based VLAN, Private VLAN, Voice VLAN |
| Data transmission |
|---|
| Number of VLANs |
4093 |
| Multicast Listener Discovery (MLD) snooping |
Yes |
| Jumbo frames |
12000 |
| Throughput |
505.92 Mpps |
| Latency (1 Gbps) |
1.06 µs |
| Latency (10 Gbps) |
0.63 µs |
| Packet buffer memory |
32 MB |
| MAC address table |
16000 entries |
| Switching capacity |
680 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Performance |
|---|
| Packet buffer memory |
32 MB |
| Stackable |
Yes |
| Processor frequency |
1800 MHz |
| Noise level |
61.8 dB |
| Memory type |
DDR4-SDRAM |
| Mean time between failures (MTBF) |
778741 h |
| Internal memory |
2048 MB |
| Flash memory |
512 MB |
| sFlow |
Yes |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A57 |
| Power |
|---|
| Power connector |
AC-in jack |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (typical) |
119.3 W |
| Input current |
6.3 A |
| Power source |
AC |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Stackable |
Yes |
| Processor frequency |
1800 MHz |
| Noise level |
61.8 dB |
| Mean time between failures (MTBF) |
778741 h |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Sustainability compliance |
Yes |
| Compliance certificates |
BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
No |
| USB 2.0 ports quantity |
2 |
| Console port |
RJ-45 |
| Power connector |
AC-in jack |
| SFP28 ports quantity |
4 |
| Security |
|---|
| Loop protection |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
Guest VLAN, MAC-based authentication |
| Static port security |
Yes |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Root protection |
Yes |
| Queue scheduling algorithms |
Strict Priority Queue (SPQ), Weighted random early detection (WRED) |
| Password protection |
Yes |
| DoS attack prevention |
Yes |
| Authentication type |
RADIUS, TACACS+ |
| Access Control List (ACL) ingress |
511 |
| Access Control List (ACL) egress |
1023 |
| IGMP proxy |
Yes |
| DHCP features |
DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Multicast Listener Discovery (MLD) snooping |
Yes |
| Protocols |
|---|
| Management protocols |
SNMP V1, V2, V3 |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Routing protocols |
OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
| Memory |
|---|
| Packet buffer memory |
32 MB |
| Memory type |
DDR4-SDRAM |
| Internal memory |
2048 MB |
| Flash memory |
512 MB |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Stackable |
Yes |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Airflow direction |
Front-to-back airflow |
| Indication |
|---|
| LED indicators |
Yes |
| Mobile network |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Heat dissipation |
374.6 BTU/h |
| Weight & dimensions |
|---|
| Width |
17.3" (440 mm) |
| Depth |
15.7" (400 mm) |
| Height |
1.7" (43.2 mm) |
| Weight |
13.8 lbs (6.25 kg) |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| Included power plug types |
EU, NA, UK |
| User guide |
Yes |
| Cables included |
AC, USB Type-C |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Other features |
|---|
| Power supply |
240 W |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Included power plug types |
EU, NA, UK |
| User guide |
Yes |
| Cables included |
AC, USB Type-C |
