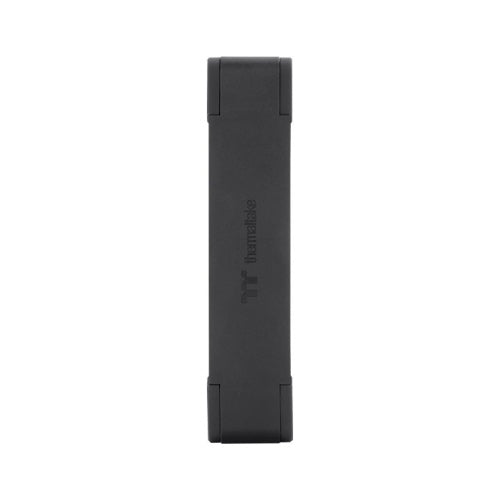

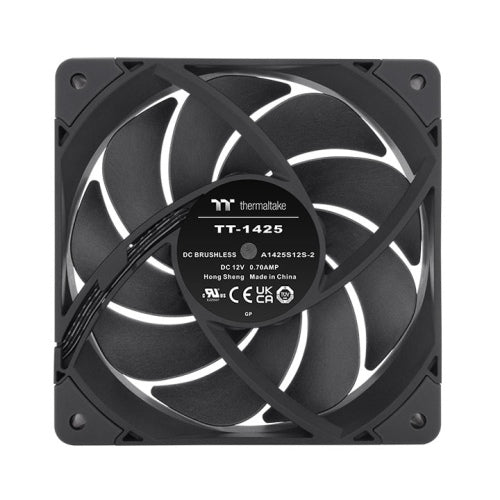

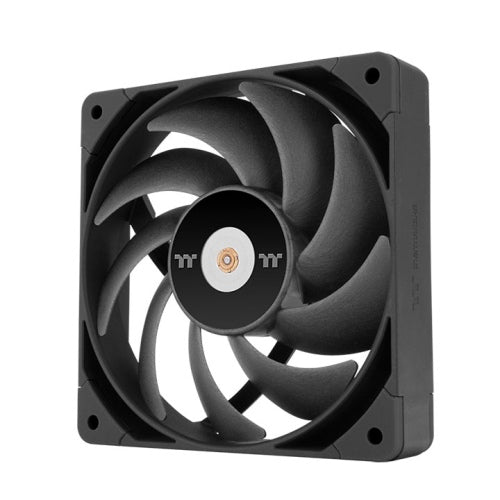

Thermaltake TOUGHFAN 14 Pro, Fan, 5.51" (14 cm), 500 RPM, 2000 RPM, 31.6 dB, 119.6 cfm
Description
Thermaltake TOUGHFAN 14 Pro. Type: Fan, Fan diameter: 5.51" (14 cm), Rotational speed (min): 500 RPM, Rotational speed (max): 2000 RPM, Noise level (low speed): 24.5 dB, Noise level (high speed): 31.6 dB, Maximum airflow: 119.6 cfm, Minimum air pressure: 2.18 mmH2O, Maximum air pressure: 3.57 mmH2O, Bearing type: Hydraulic. Product color: Black
Specifications
| Performance |
| Suitable location |
Computer case |
| Fan connector |
4-pin |
| Pulse-width modulation (PWM) support |
Yes |
| Rotational speed (min) |
500 RPM |
| Rotational speed (max) |
2000 RPM |
| Bearing type |
Hydraulic |
| Noise level (low speed) |
24.5 dB |
| Noise level (high speed) |
31.6 dB |
| Type |
Fan |
| Operating temperature (T-T) |
0 - 25 °C |
| Fan diameter |
5.51" (14 cm) |
| Minimum airflow (imperial) |
87.6 cfm |
| Maximum airflow |
119.6 cfm |
| Minimum air pressure |
2.18 mmH2O |
| Maximum air pressure |
3.57 mmH2O |
| Number of fans |
1 fan(s) |
| Quantity per pack |
1 pc(s) |
| Number of fan blades |
9 |
| Fan's mean time to failure (MTTF) |
40000 h |
| Design |
| Fan connector |
4-pin |
| Number of fans |
1 fan(s) |
| Product colour |
Black |
| Number of fan blades |
9 |
| Technical details |
| Noise level (low speed) |
24.5 dB |
| Noise level (high speed) |
31.6 dB |
| Type |
Fan |
| Fan diameter |
5.51" (14 cm) |
| Minimum airflow (imperial) |
87.6 cfm |
| Maximum airflow |
119.6 cfm |
| Minimum air pressure |
2.18 mmH2O |
| Maximum air pressure |
3.57 mmH2O |
| Number of fans |
1 fan(s) |
| Fan connector |
4-pin |
| Ports & interfaces |
| Fan connector |
4-pin |
| Power |
| Rated voltage |
12 V |
| Starting voltage |
6 V |
| Rated current |
0.36 A |
| Fan power consumption |
4.32 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 25 °C |
| Colour |
| Product colour |
Black |
| Weight & dimensions |
| Fan dimensions (W x D x H) |
5.51 x 5.51 x 0.984" (140 x 140 x 25 mm) |
