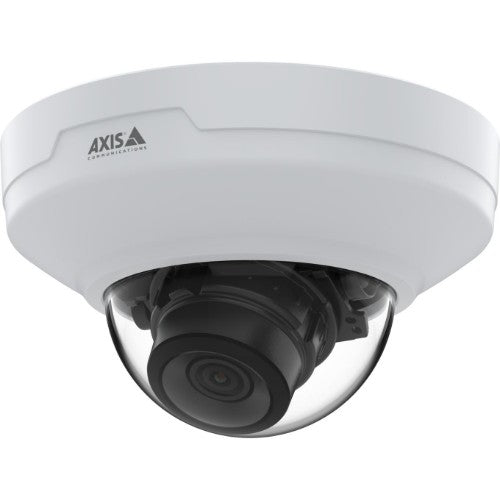

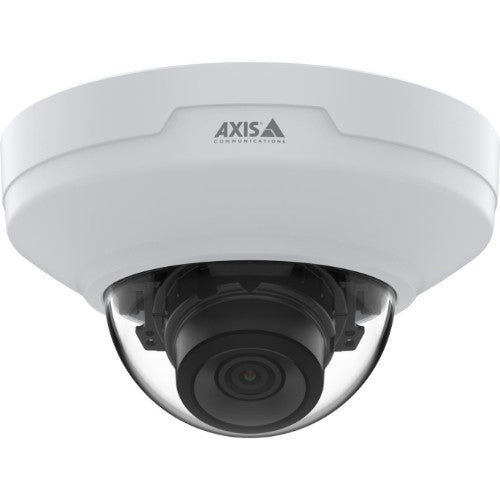

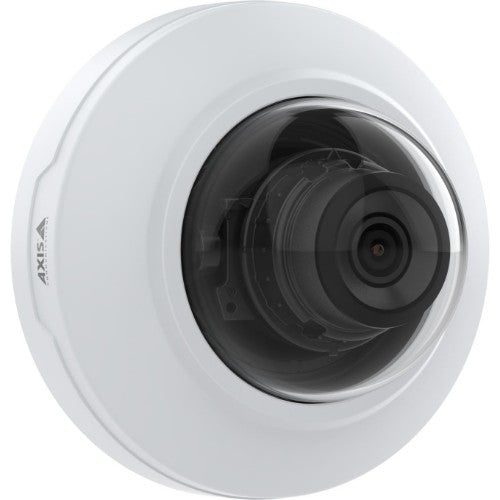

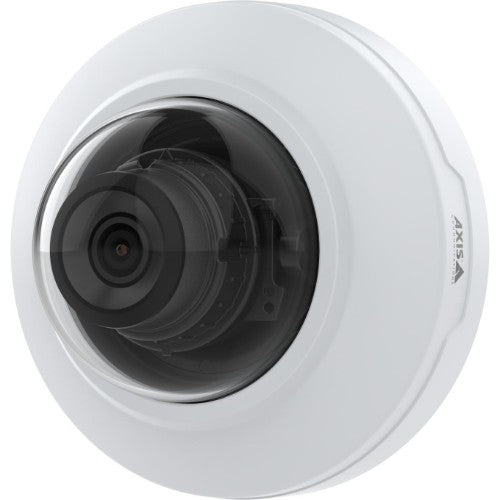

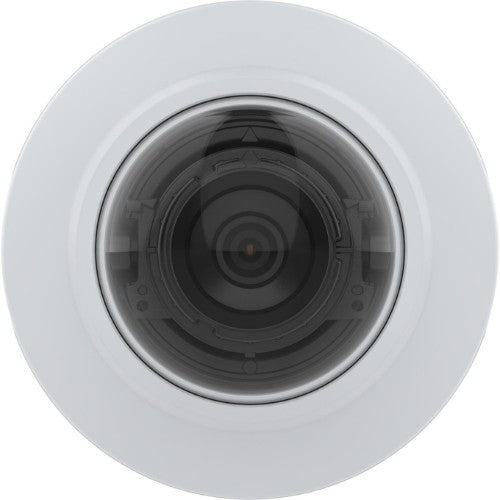

Axis 02678-001 security camera Dome IP security camera Indoor 3840 x 2160 pixels Ceiling/wall

8 MP, RGB CMOS, 3840 x 2160, PTZ, PoE

Key Features

• Great image quality in superior 4K
• Varifocal lens with remote zoom and focus
• WDR for difficult light conditions
• Analytics with deep learning
• HDMI output for public viewing monitors

Description

This discreet dome delivers great images in challenging light conditions. With a deep learning processing unit, it offers intelligent analytics based on deep learning on the edge. Plus, Axis Edge Vault safeguards your device.

Great images, every time
Ideal for indoor surveillance applications, AXIS M4218-V delivers great image quality in superior 4K. With a varifocal lens, this affordable camera offers a flexible field of view. Plus, with remote zoom and auto focus capabilities, it ensures sharp high resolution video with great details where needed. Thanks to WDR, it can handle difficult light conditions. Furthermore, Axis Edge Vault provides a hardware-based cybersecurity platform that guarantees the device’s integrity and protects it from unauthorized access.

Extended possibilities
AXIS M4218-V offers great possibilities to add value to your camera and extend the functionality of your surveillance system. For instance, with an HDMI port and AXIS Face Detector you can display live video and face detection on a public viewing monitor to help deter theft. Plus, you can add audio or I/O connectivity using AXIS T61 Series. It offers advanced analytics based on deep learning on the edge to deliver valuable metadata facilitating efficient forensic search capabilities in live or recorded video. And AXIS Object Analytics including time in area feature lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering.

Small and discreet
Compact and flexible in design, this varifocal dome offers flexible and discreet installation. With a wide range of accessories, it can be installed almost anywhere making it ideal for any location where discreet monitoring is needed. And it can be easily repainted to blend in seamlessly with any environment. This IK08-rated camera is protected against redirection, defocusing, and impact. A smoked dome is available as an accessory to disguise which way the camera is pointing. Furthermore, thanks to its vandal-, impact-, and dust-resistant casing you can be confident it’s always safe and secure.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Number of languages	19
Languages support	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
PTZ modes	Digital PTZ
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Indoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
Built-in processor	Yes
Design
IK code	IK08
Form factor	Dome
Product colour	White
Mounting type	Ceiling/wall
International Protection (IP) code	IP42
Housing material	Aluminum, Polycarbonate (PC)
Camera
Minimum illumination	0.24 lx
Tilt angle range	-40 - 65°
Pan range	-180 - 180°
Angle of rotation	105°
Camera shutter speed	1/71500 - 1/5 s
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	93 - 47°
Lens viewing angle, vertical	50 - 26°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	1/2.8"
Lens system
Maximum aperture number	2.6
Minimum aperture number	1.7
Zoom capability	Yes
Night vision
Night vision	No
Video
Noise reduction	Yes
Privacy masking	Yes
Noise reduction technology	2D noise reduction, 3D noise reduction
Video compression formats	H.264, H.265, M-JPEG
Maximum resolution	3840 x 2160 pixels
Frame rate	15 fps
Video streaming	Yes
Total megapixels	8 MP
Video recording	Yes
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Quality of Service (QoS) support	Yes
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf)
Storage
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory	2048 MB
Flash memory	512 MB
Ports & interfaces
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Processor
Built-in processor	Yes
Memory
Internal memory	2048 MB
Flash memory	512 MB
Hard drive
Built-in HDD	No
Technical details
Video compression formats	H.264, H.265, M-JPEG
Type	IP security camera
Form factor	Dome
PTZ control	Yes
Placement supported	Indoor
Product colour	White
Mounting type	Ceiling/wall
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Progressive scan	Yes
Security
Video motion detection	Yes
IP address filtering	Yes
Active tampering alarm	Yes
Password protection	Yes
Mirror	Yes
Pixel counter	Yes
Digest authentication	Yes
Network access storage (NAS)	Yes
Material
Housing material	Aluminum, Polycarbonate (PC)
Power
Power source type	PoE
Power consumption (max)	4.8 W
Power consumption (Power over Ethernet (PoE))	3 W
Certificates
International Protection (IP) code	IP42
Certification	CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Height	2.8" (71 mm)
Diameter	4.72" (12 cm)
Weight	12.6 oz (356 g)
Packaging content
Number of cameras	1
Manual	Yes
Other features
Video compression formats	H.264, H.265, M-JPEG
