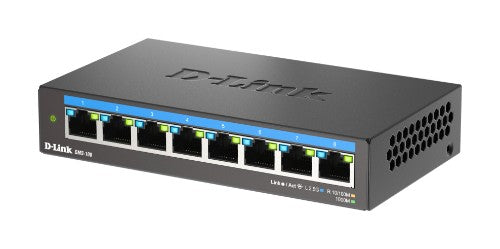

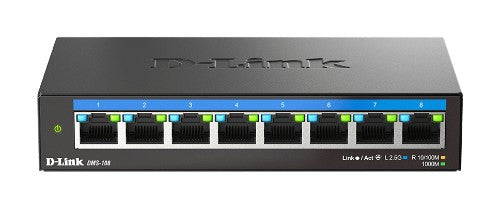

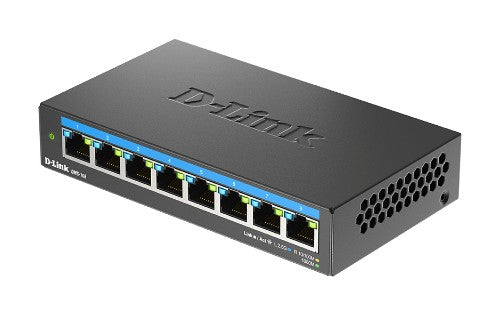

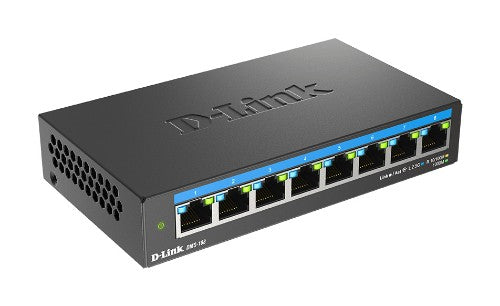

D-Link DMS-108 Unmanaged L2 2.5G Ethernet (100/1000/2500) Black

8-Port 2.5G Multi-Gigabit Desktop Switch

Key Features

• x8 2.5Gbps Ethernet ports
• 40 Gbps switching capacity
• IGMP Snooping
• QoS & Flow Control
• Durable metal housing
• Energy efficient, fanless
• Plug & play installation
• Ideal for Wi-Fi 6

Description

More ports. Multi-Gigabit Ethernet.
Maximise network throughput with 2.5Gbps Multi-Gigabit Ethernet on each port of this compact 8-port switch. Whether it’s to connect to your core or create a network between devices, now you can easily start sharing an internet connection, files, music, and video, or for gaming without bottlenecks.

2.5 Gigabit Ethernet
Save time transferring large files and improve sharing and productivity

Effortless multi-Gigabit networking
Easily upgrade or extend your home or small business network

Compact Metal Housing
Sturdy, compact metal housing with fanless design for silent operation

Energy Efficient Design
Automatic power saving features to reduce power usage

Plug-and-pay convenience.
The DMS-108 is a plug-and-play device that requires no configuration to get started. Plug-and-play makes it easy to instantly create a network without any technical knowledge.

Effortless traffic optimisation.
With 2.5 Gigabit transfer speeds from every port, you can rapidly transfer files between connected servers and network attached storage (NAS) to computers. The Quality of Service (QoS), and Flow Control features automatically prioritises important data for efficient delivery. And the IGMP Snooping function reduces unwanted multicast traffic so you can enjoy seamless video streaming and IPTV viewing experiences.

Designed for life, built to last.
The DMS-108 has a sturdy and compact metal housing to ensure the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

Energy Saving.
The DMS-108 is designed with energy efficiency in mind. The fanless design eliminates a common point of failure and means the switch can be placed virtually anywhere and operate silently. The Link Status detection feature of the switch saves power by automatically powering down ports that are inactive or not connected, and it supports the IEEE 802.3az Energy-Efficient Ethernet standard.

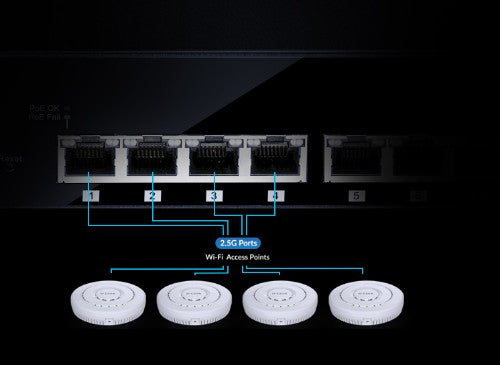

Ready for Wi-Fi 6.
You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
2.5G Ethernet (copper) ports quantity	8
Network
MAC address auto-learning supported	Yes
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
Data transmission
Packet buffer memory	8.1 MB
MAC address table	4000 entries
Switching capacity	40 Gbit/s
Store-and-forward	Yes
Number of queues	8
Forwarding rate	29.76 Mpps
Security
IGMP snooping	Yes
Multicast features
Multicast support	Yes
Design
Product colour	Black
Stackable	Yes
LED indicators	Activity, Link, Power
Performance
Mean time between failures (MTBF)	724033.96 h
Fanless	Yes
Packet buffer memory	8.1 MB
Stackable	Yes
Power
Power supply included	Yes
Power consumption (typical)	8.586 W
Input current	1 A
DC input voltage	12 V
Power source	DC
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	29.3 BTU/h
Weight & dimensions
Width	5.71" (145 mm)
Depth	3.23" (82 mm)
Height	1.1" (28 mm)
Weight	12.1 oz (343 g)
Sustainability
Sustainability compliance	Yes
Technical details
Product colour	Black
Stackable	Yes
Mean time between failures (MTBF)	724033.96 h
Sustainability compliance	Yes
Compliance certificates	BSMI, CE, Low Voltage Directive (LVD), RoHS
Memory
Packet buffer memory	8.1 MB
Certificates
Compliance certificates	BSMI, CE, Low Voltage Directive (LVD), RoHS
Indication
LED indicators	Activity, Link, Power
