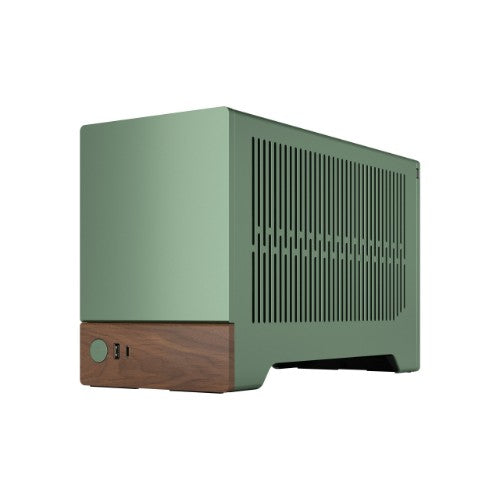

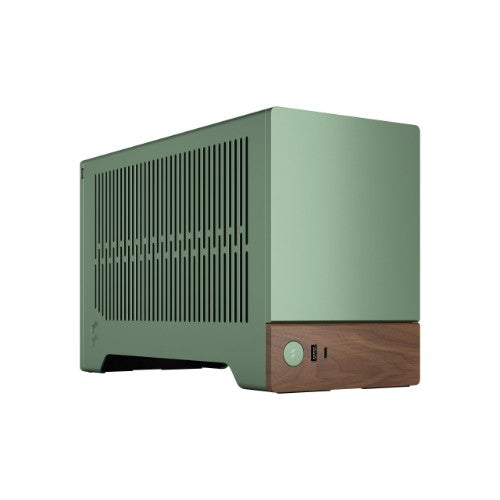

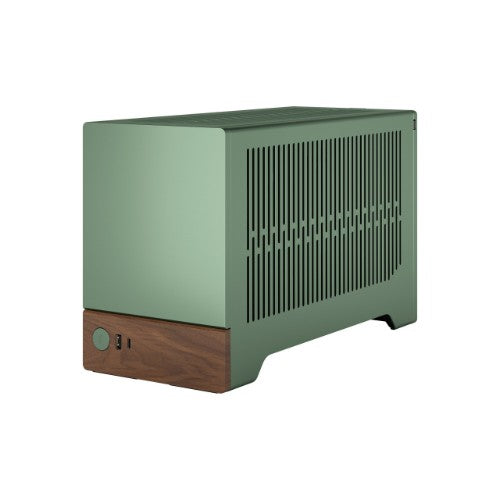

Fractal Design Terra Small Form Factor (SFF) Green

SFF, mITX, Aluminum/Walnut, USB 3.0 Type-A/USB 3.2 Gen 2x2 Type-C

Key Features

• Install your choice of powerful GPU up to 322 mm in length, in a space-saving 10.4 L case
• Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
• Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front

Description

Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 riser cable and features a stepless slidable central wall for build flexibility, providing space for a powerful GPU up to 322 mm in length.

Crafted to elevate
Designed and engineered to enhance small form factor gaming

Elegantly crafted
- Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
- Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front

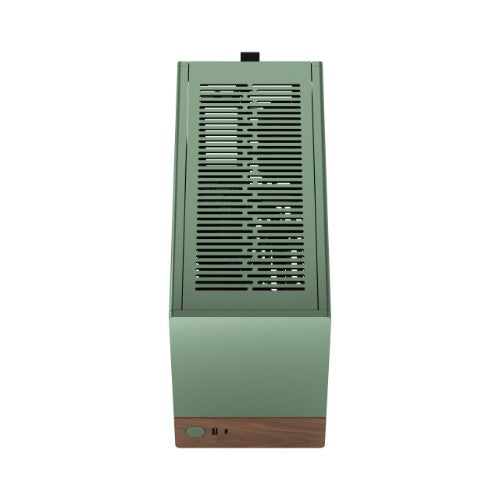

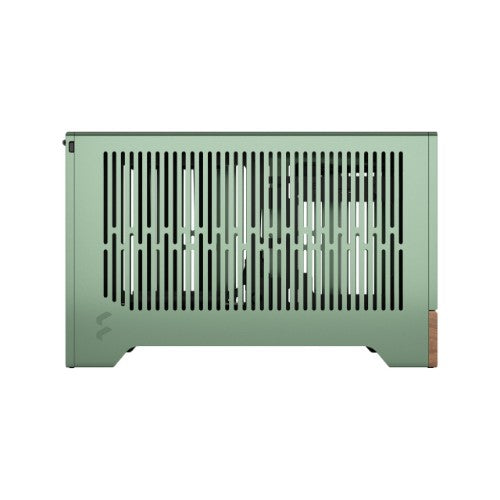

- Make the most of natural airflow through the ventilated top, side and bottom panels

Engineered for SFF gaming
- Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case
- Get a head start on your build with the included PCIe 4.0 riser cable
- Store up to two SSDs in the dedicated 2.5” drive mounts

Easily accessible

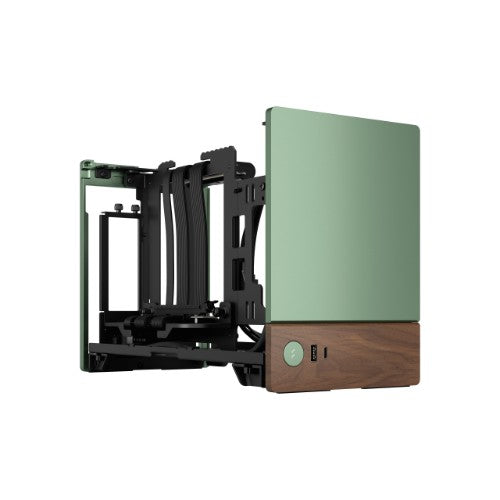

Slide open the top with an integrated tab and lift open the fully removable side panels for easy access to your components

Choose your accent
The Terra is available in your choice of three distinct anodized aluminum versions to perfectly complement and elevate your gaming space

Adjustable motherboard plate

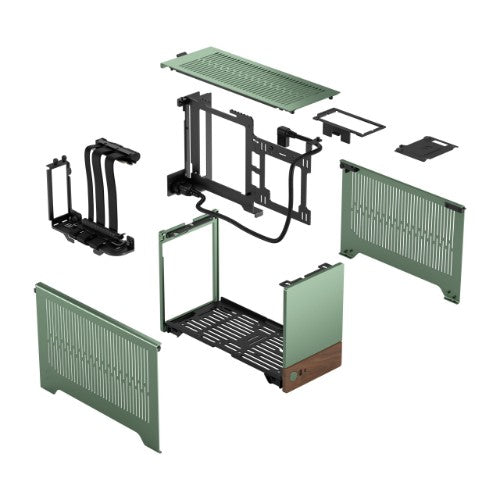

Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, movable central wall

Slide to strike the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other

Front-facing I/O

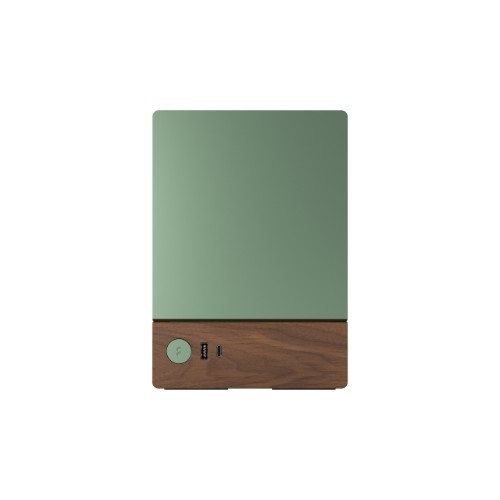

The solid walnut front panel features an aluminum power button and two USB ports for connecting devices, including one USB Type-C 20Gbps

Natural material
Enjoy a naturally unique finish, with an individual front panel cut from solid walnut.

Highly transportable
Features the ability to lock the top and side panels for safer transportation of your build

Specifications

Design
Volume	10.4 L
Anti-dust filter	No
Number of external 5.25" bays	0
Material	Aluminum, Walnut
Number of 5.25" bays	0
Number of 3.5" bays	0
Number of 2.5" bays	2
Number of internal 3.5" bays	0
Supported motherboard form factors	Mini-ITX
Side window	No
Illumination	No
Product colour	Green
Number of expansion slots	3
Maximum CPU cooler height	3.03" (7.7 cm)
Maximum graphics card length	12.7" (32.2 cm)
Maximum PSU length	5.12" (13 cm)
Type	PC
Form factor	Small Form Factor (SFF)
On/off button	Yes
Technical details
Number of 5.25" bays	0
Number of 3.5" bays	0
Number of 2.5" bays	2
Number of internal 3.5" bays	0
Supported motherboard form factors	Mini-ITX
Supported HDD sizes	2.5"
Side window	No
Product colour	Green
Number of expansion slots	3
Maximum CPU cooler height	3.03" (7.7 cm)
Maximum graphics card length	12.7" (32.2 cm)
Maximum PSU length	5.12" (13 cm)
Type	PC
Form factor	Small Form Factor (SFF)
Material
Material	Aluminum, Walnut
Indication
Illumination	No
Ergonomics
On/off button	Yes
Power supply
Supported power supply form factors	SFX, SFX-L
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 2.0 ports quantity	0
USB Type-C ports quantity	1
Cooling
Front radiator installed	No
Rear radiator installed	No
Top radiator installed	No
Number of bottom fans supported (max)	1
Bottom fans diameters supported	120 mm
Side radiator sizes supported	120 mm
Storage
Supported HDD sizes	2.5"
SSD form factor	2.5"
Packaging content
Manual	Yes
Weight & dimensions
Volume	10.4 L
Width	6.02" (153 mm)
Depth	13.5" (343 mm)
Height	8.58" (218 mm)
Weight	6.83 lbs (3.1 kg)
Packaging data
Package width	8.46" (215 mm)
Package height	11.5" (292 mm)
Package depth	15.5" (394 mm)
Package weight	8.82 lbs (4 kg)
Manual	Yes
Other features
Volume	10.4 L
Manual	Yes
