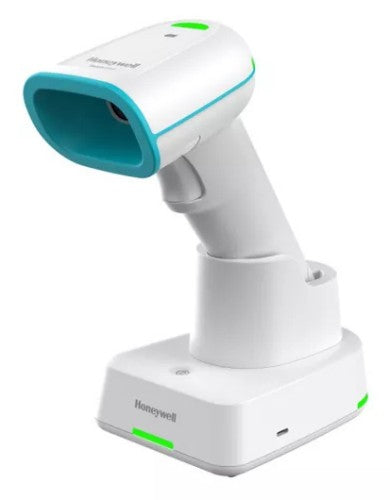

Handheld, 1D/2D, LED, 1280 x 1080, White, 1962HC Battery free USB Kit: White Anti-microbial housing, HD Focus, USB Type A 2.7M straight cable (3012-6337-001), Contactless Presentation Charge and Communication base (CCB-U00-H & 1962H-WC-CUP), US&C ONLY
Description
Designed for healthcare, the Xenon Ultra 1962h incorporates Honeywell’s next generation of scanning – allowing patient care to stay top priority for clinicians, improving retention of employees and lowering the total cost of ownership for hospitals. It offers multiple operating modes, ensuring patient comfort while maintaining clinician productivity. Additionally, its compact size allows for versatile mounting or storage options, enabling point-of-care workers to prioritize patient safety and comfort.
Designed for Healthcare:The Xenon Ultra 1962h features disinfectant-ready, anti-microbial housing that actively combats germ proliferation. It offers multiple point-of-care operating modes, flexible mounting options, and offers superior scanning performance to address the wide range of barcodes encountered in healthcare environments.
Optimized for Clinicians:The Xenon Ultra 1962h includes features like patient-do-not-disturb, vibration alerts, and an intelligent scan lamp that can illuminate only when necessary. Optional magnetic retention balances ease of use with secure retention, ideal for Workstation-on-Wheels (WoW) carts as clinicians move between patients. The contactless charging feature for both battery and battery-free scanning mitigates the risk of corrosion, better supporting rigorous cleaning protocols. The Bluetooth configuration enhances functionality and offers premium accessory upgrades, including interchangeable power sources and contactless charging capabilities.
Ultra Performance:The Xenon Ultra 1962h delivers exceptional scanning performance, even on damaged or low-quality barcodes, ensuring high precision and minimizing the need for manual data entry, which is particularly important for data integrity in the healthcare environment. Its modern design not only improves aesthetics but also meets the durability standards critical for healthcare environments. The battery-free scanner provides at least 450 scans of UPC/EAN codes without recharging, making it an ideal choice for bedside medication administration and specimen collection.
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| Yaw reading angle |
-65 - 65° |
| Wavelength |
525 nm |
| Tilt reading angle |
-360 - 360° |
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Pitch reading angle |
-65 - 65° |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Optical sensor resolution (W x H) |
1280 x 1080 pixels |
| Horizontal field of view |
42° |
| Vertical field of view |
36° |
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Cable length |
106.3" (2.7 m) |
| Standard interfaces |
Bluetooth, Keyboard wedge, RS-232, USB |
| Performance |
|---|
| Protection features |
Anti-bacterial, Drop proof, Electrostatic Discharge (ESD) protection |
| LED indicators |
Yes |
| International Protection (IP) code |
IP52 |
| Product colour |
White |
| Buzzer |
Yes |
| Print contrast |
15% |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Design |
|---|
| Type |
Handheld bar code reader |
| Protection features |
Anti-bacterial, Drop proof, Electrostatic Discharge (ESD) protection |
| LED indicators |
Yes |
| International Protection (IP) code |
IP52 |
| Product colour |
White |
| Power |
|---|
| Power source type |
Supercapacitor |
| Number of reads per charge |
450 |
| Weight & dimensions |
|---|
| Width |
2.77" (70.4 mm) |
| Depth |
4.26" (108.2 mm) |
| Height |
6.31" (160.2 mm) |
| Weight |
8.99 oz (255 g) |
| Presentation base dimensions (WxDxH) |
2.77 x 3.26 x 4.79" (70.4 x 82.9 x 121.6 mm) |
| Presentation base weight |
7.76 oz (220 g) |
| Technical details |
|---|
| Type |
Handheld bar code reader |
| Protection features |
Anti-bacterial, Drop proof, Electrostatic Discharge (ESD) protection |
| LED indicators |
Yes |
| International Protection (IP) code |
IP52 |
| Product colour |
White |
| Buzzer |
Yes |
| Packaging data |
|---|
| Charging base |
Yes |
| Cables included |
USB |
| External power adapter |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Packaging content |
|---|
| Charging base |
Yes |
| Cables included |
USB |
| External power adapter |
Yes |
