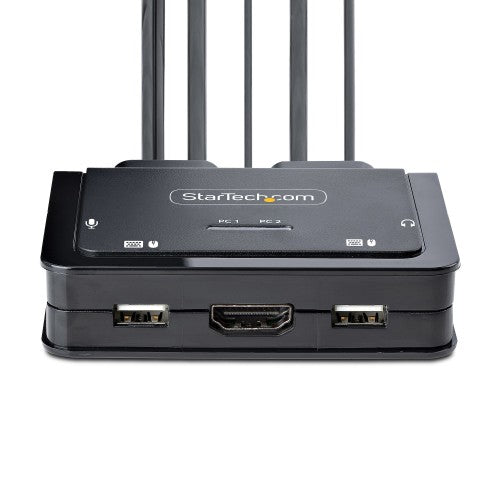

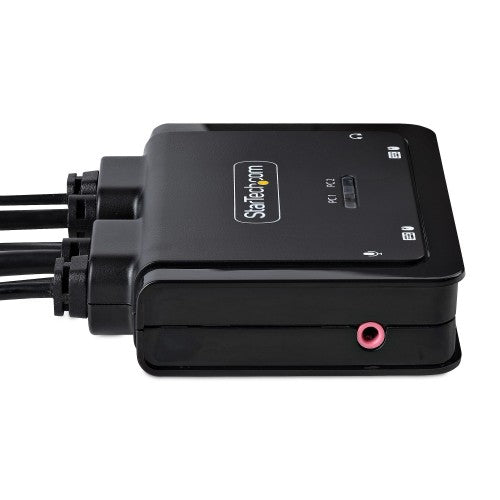

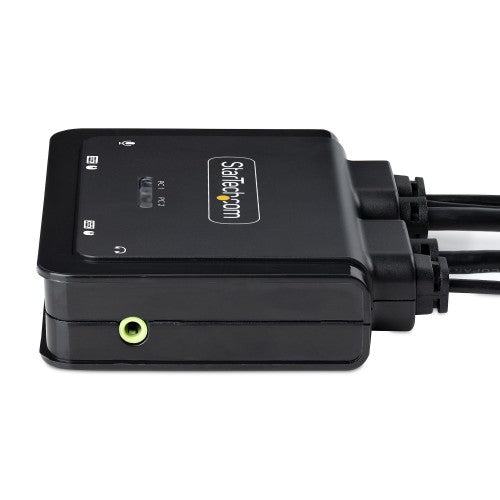

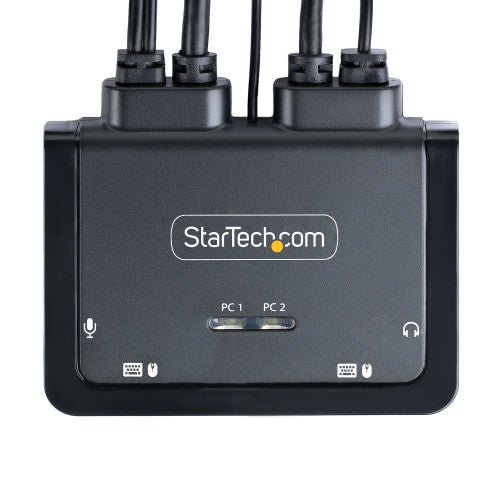

StarTech.com 2-Port Hybrid USB-C HDMI Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A/HDMI/Audio & 4ft/1.2m USB-C Integrated Cables, Bus Powered, Hotkey Switching (C2-H46-UAC-CBL-KVM)
Key Features
- 4K 60HZ HYBRID KVM SWITCH: Enables switching between a USB-A/HDMI desktop and a USB Type-C DP-Alt Mode enabled laptop to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz HDMI monitor

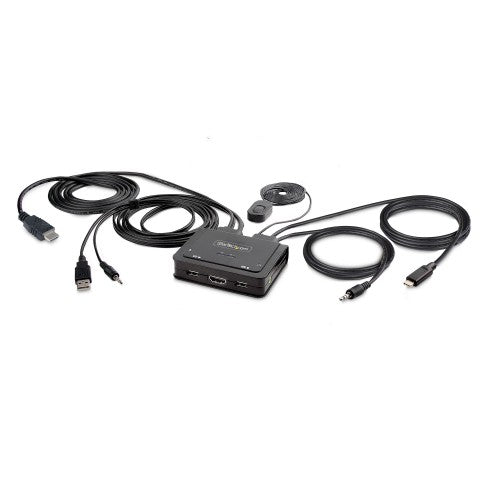

- READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features built-in 6ft/1.8m USB-A, HDMI, and Audio host cables for PC1, & 4ft/1.2m USB-C and Audio host cables for PC2
- COMPATIBILITY: 2-Port KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel, AMD, and Apple M1/M2 devices (MacBook/Mac Mini); Works with USB-C, USB4, Thunderbolt 3/4
- SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts
Description

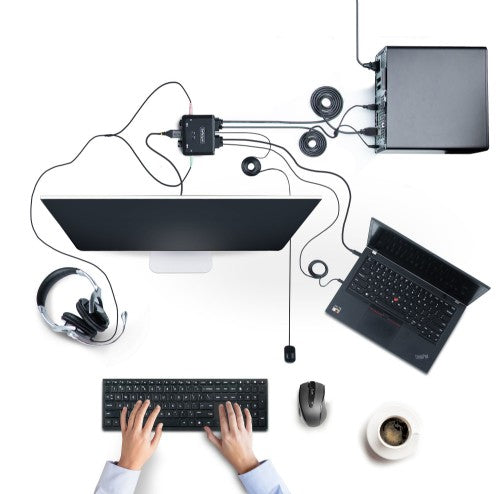

Share a mouse, keyboard, and a 4K 60Hz HDMI display between a USB-A computer and a USB-C DP Alt Mode computer using this KVM Switch with built-in cables
This Hybrid KVM Switch enables users to switch between a USB Type-A and HDMI-enabled desktop and a USB Type-C (DP Alt-Mode) enabled laptop, to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz HDMI monitor.
Hassle-Free Setup

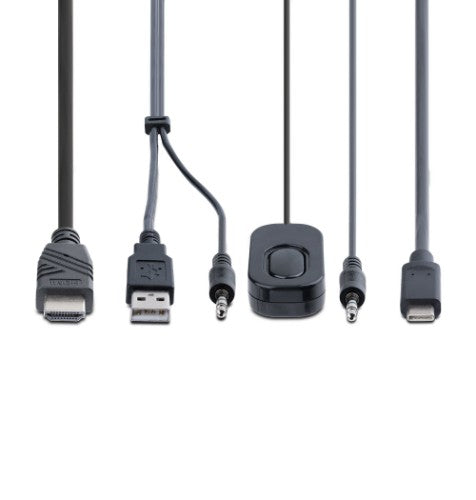

The KVM switch is bus powered and features built-in HDMI, USB-A, USB-C, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.
Compatibility
The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2. The USB-C host port works with USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops. If the desktop does not have a 4-position 3.5mm port the included 3.5mm Headset Adapter ensures compatibility out of the box.
Intuitive Control
The KVM switch offers two options to switch between hosts - a remote push button or hotkey commands. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, ensuring uninterrupted audio when switching between host devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• MAC Address Pass-Through Utility: Improve network security.
• USB Event Monitoring Utility: Track and log connected USB devices.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
2 |
| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB A |
| USB connector type |
USB Type-A, USB Type-C |
| Number of microphone inputs |
1 |
| HDMI version |
2.0b |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Audio connections |
Yes |
| Headphone outputs |
1 |
| HDMI ports quantity |
1 |
| Console HDMI ports quantity |
1 |
| Cable length |
70.9" (1.8 m) |
| Performance |
|---|
| Data transfer rate (max) |
0.48 Gbit/s |
| HD type |
4K Ultra HD |
| Video bandwidth |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| Scan interval |
10,20,30,40,50,60 s |
| Audio channels |
2.0 |
| Number of displays supported |
1 |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Scan interval |
10,20,30,40,50,60 s |
| Push button |
Yes |
| On Screen Display (OSD) |
No |
| LED indicators |
Yes |
| Hot keys |
Yes |
| IP control |
No |
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Design |
|---|
| Mean time between failures (MTBF) |
345059 h |
| Product colour |
Black |
| Cable length |
70.9" (1.8 m) |
| Rack mounting |
No |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Power source |
USB |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported |
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Other operating systems supported |
ChromeOS |
| Video |
|---|
| HD type |
4K Ultra HD |
| Video bandwidth |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Width |
3.62" (92 mm) |
| Depth |
3.82" (97 mm) |
| Height |
0.945" (24 mm) |
| Weight |
9.35 oz (265 g) |
| Package width |
8.27" (210 mm) |
| Package depth |
6.3" (160 mm) |
| Package height |
2.36" (60 mm) |
| Package weight |
17.6 oz (500 g) |
| Packaging data |
|---|
| Package width |
8.27" (210 mm) |
| Package depth |
6.3" (160 mm) |
| Package height |
2.36" (60 mm) |
| Package weight |
17.6 oz (500 g) |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Other features |
|---|
| IP control |
No |
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
17.3" (440 mm) |
| Master (outer) case length |
13.6" (345 mm) |
| Master (outer) case height |
13.6" (345 mm) |
| Products per master (outer) case |
20 pc(s) |
