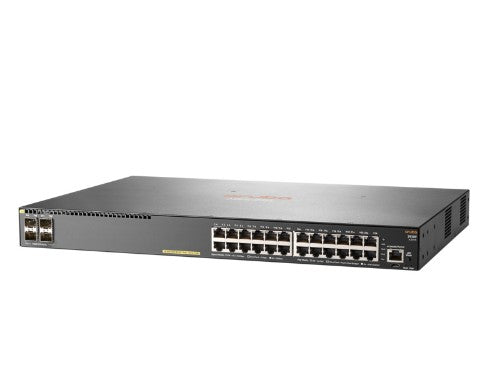

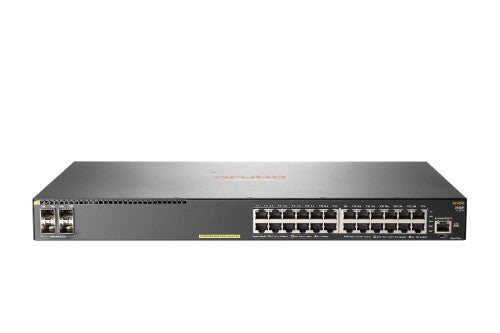

HPE 2930F-24G-POE+ 4SFP Switch
Description
HPE 2930F-24G-POE+ 4SFP Switch
Specifications
| Management features |
|---|
| Multicast support |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L3 |
| Ports & interfaces |
|---|
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 100BASE-T |
| SFP module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| IGMP snooping |
Yes |
| IPv6 FIB entries |
5000 |
| IPv4 FIB entries |
10000 |
| Auto-sensing |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 100BASE-T |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Routing entries |
10000 |
| Rate limiting |
Yes |
| Link aggregation |
Yes |
| IP routing |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| IPv4 & IPv6 features |
|---|
| IPv6 FIB entries |
5000 |
| IPv4 FIB entries |
10000 |
| Performance |
|---|
| Packet buffer memory |
12.38 MB |
| Stackable |
Yes |
| Processor frequency |
1016 MHz |
| Memory type |
DDR3-SDRAM |
| Internal memory |
1024 MB |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A9 |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Gray |
| Stackable |
Yes |
| Processor frequency |
1016 MHz |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Data transmission |
|---|
| Throughput |
41.7 Mpps |
| Latency (1 Gbps) |
3.8 µs |
| Packet buffer memory |
12.38 MB |
| MAC address table |
32768 entries |
| Switching capacity |
56 Gbit/s |
| Security |
|---|
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP server |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| Routing protocols |
IP |
| IPv6 FIB entries |
5000 |
| IPv4 FIB entries |
10000 |
| Memory |
|---|
| Packet buffer memory |
12.38 MB |
| Memory type |
DDR3-SDRAM |
| Internal memory |
1024 MB |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Gray |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (max) |
445 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
370 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
15 - 95% |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
15 - 95% |
| Heat dissipation |
1518 BTU/h |
| Weight & dimensions |
|---|
| Width |
17.4" (442.5 mm) |
| Depth |
12" (304.2 mm) |
| Height |
1.73" (43.9 mm) |
| Weight |
8.6 lbs (3.9 kg) |
