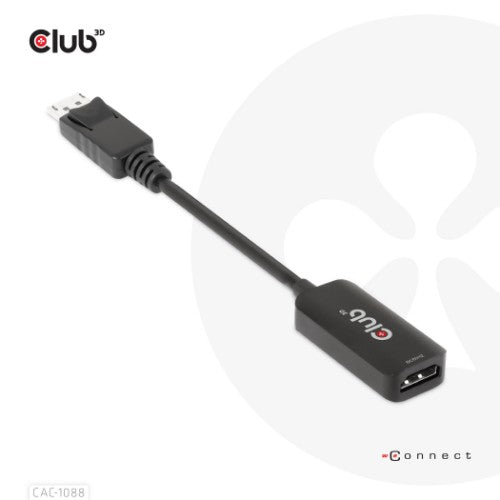

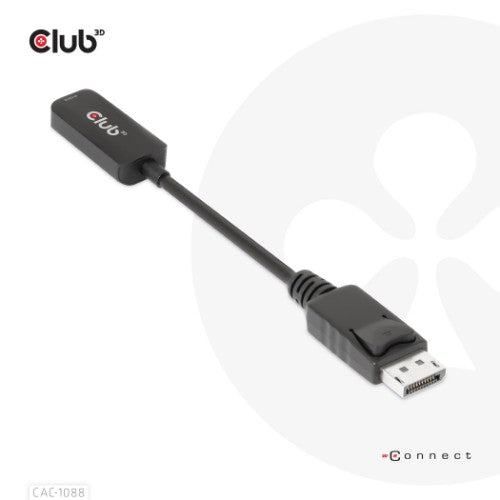

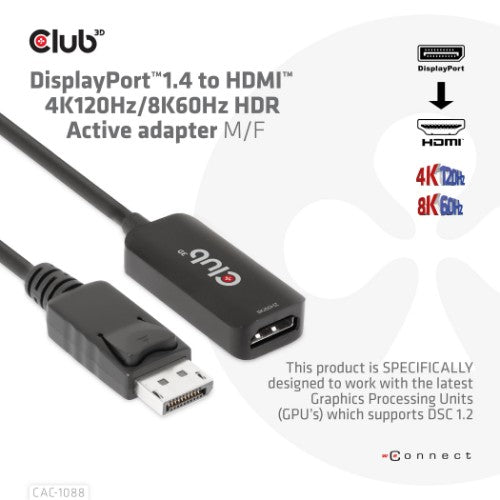

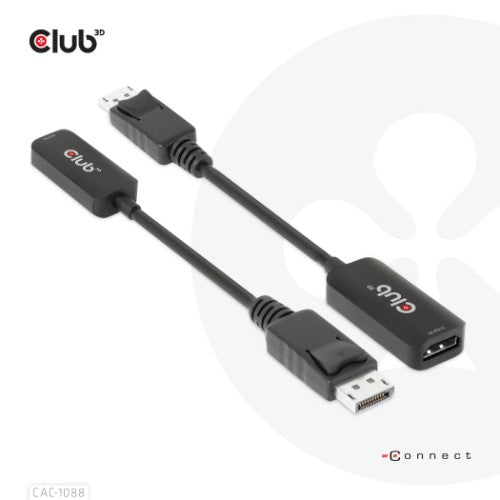

DisplayPort™1.4 to HDMI™ 4K120Hz/8K60Hz HDR Active adapter M/F
Key Features
- Features:
- Upstream DisplayPort connection to host:
- Compliant with VESA DisplayPort™ v1.4 Specification
- Support DSC1.1/1.2a or uncompressed video
- Support DSC 1.1/1.2a decoder
- Support 8/10/12 bit color depth
- Support pixel format RGB
- Downstream HDMI connection to display
- Compliant with HDMI™ Specification max. 8K (7680x4320)@60Hz
- Support Dynamic metadata HDR10+
- Support HPD (DisplayPort Hot Plug Detect)
- Support both HDCP 1.4 and HDCP 2.3
- Support 8/10/12 bit color depth output
- Support 1 to 32 channels LPCM 192kHz audio output
- Supports HBR audio up to 1536kHz
- Applications:
- For the host device like laptop, desktop, video converter adaptor, docking
- station, projector, gaming and display system like TV*, digital signage, VR/AR
- system
- Perfect for Host Devices which are featured with the DP1.4 graphic card that
- supports DP video signal output for gaming, commercial applications**
- Supported resolutions:
- Support Max. resolution/timing up to 4k120Hz/8K60Hz
Description
Description:

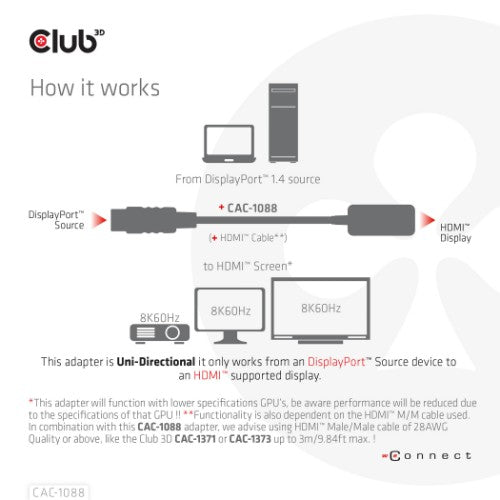

The Club 3D CAC-1088 is the perfect solution to connect to any HDMI™
4K120Hz/8K60Hz ready displays*. If you have a DisplayPort™ 1.4 ready PC or any
other device that lacks the new HDMI™ 4K120Hz/8K60Hz specification, the Club3D
CAC-1088 will be the simple way to upgrade your device and connect to your new
TV*.
With its DP1.4 DSC video compression technology, this adapter is able to convert
DP1.4 video signals to HDMI™, supporting video display resolutions up to 8K (7680 x
4320)@60Hz ** and creating life like colors and movements with HDR giving users
the ultimate visual experience. The Adapter does NOT need an external power
cable
Specifications
| Features |
|---|
| DisplayPort version |
1.4 |
| Product colour |
Black |
| Cable length |
8.27" (0.21 m) |
| Connector 1 |
DisplayPort |
| Connector 2 |
HDMI |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10+ (HDR10 Plus) |
| HBR2 support |
Yes |
| Other features |
|---|

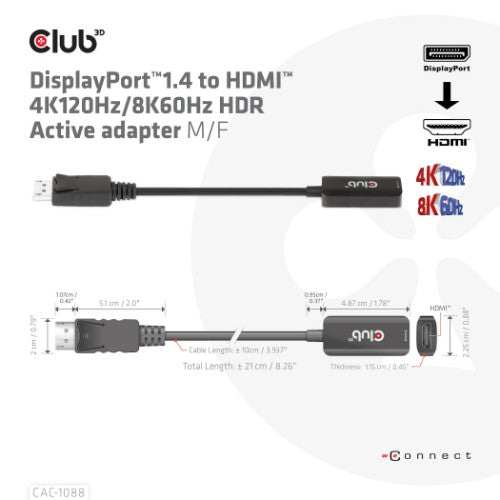

| Width |
1.93" (49 mm) |
| Height |
0.453" (11.5 mm) |
| Depth |
0.886" (22.5 mm) |
| Packaging composition |
|---|
| Plastic packaging weight |
0.176 oz (5 g) |
| Paper/cardboard packaging weight |
0.988 oz (28 g) |
| Total plastic packaging weight |
0 oz (0 g) |
| Total paper/cardboard packaging weight |
0 oz (0 g) |
| Weight & dimensions |
|---|
| Width |
1.93" (49 mm) |
| Height |
0.453" (11.5 mm) |
| Depth |
0.886" (22.5 mm) |
| Technical details |
|---|
| Harmonized System (HS) code |
8544 4290 |
| Plastic packaging weight |
0.176 oz (5 g) |
| Logistics data |
|---|
| Harmonized System (HS) code |
8544 4290 |
